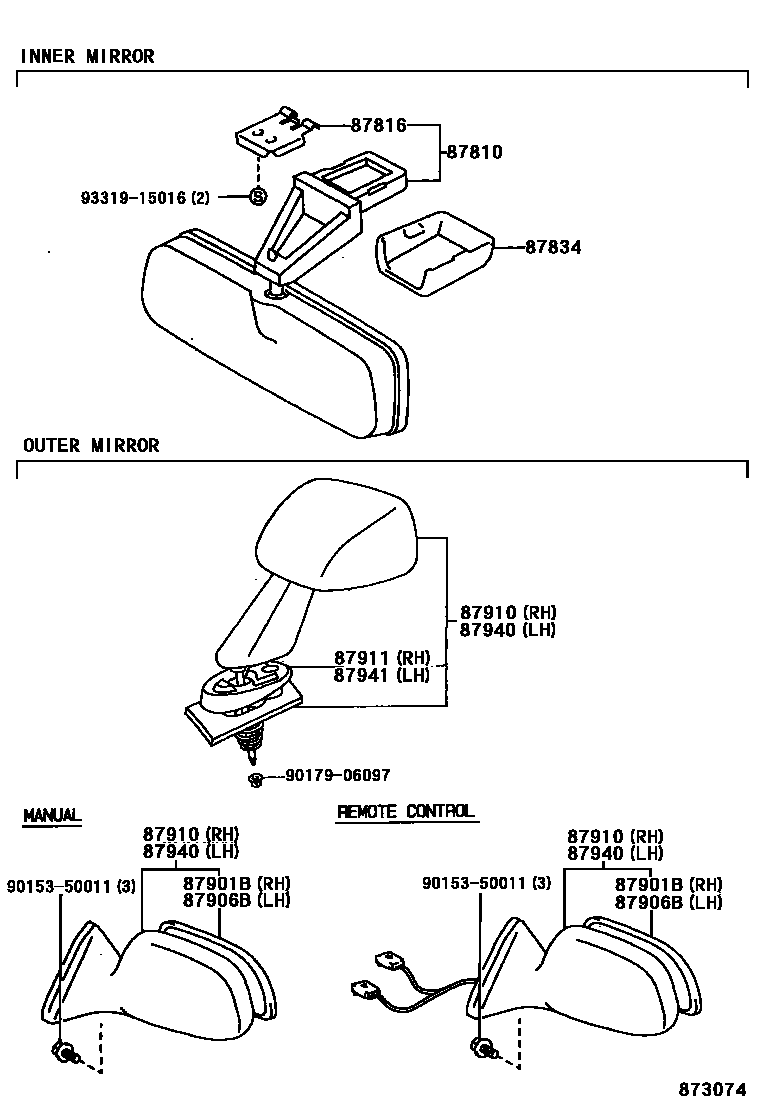

Toyota COROLLA 2 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
SPRUCE,TRIM6#
GRAY,TRIM2#
GRAYISH BLUE,TRIM8#
LI.SPRUCE,TRIM6#
GRAY,TRIM2#
LI.BLUE,TRIM8#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER RED,3E5
DARK BLUE MICA M.,8J1
GRAYISH GREEN M.M.,6L6
SUPER WHITE 2,040
RIGHT YELLOW MICA M.,570
SUPER RED,3E5
DK.BL.GRAY ME,183
GREENISH YELLOW M.M,569
LT.GREEN MCGR,6M9
MI.GR.GREEN HCGR,6N1
PURPLE M.M,924
SUPER RED,3E5
BLUE GRAY METALLIC,179
DARK BLUE MICA M.,8J1
GRAYISH GREEN M.M.,6L6
SUPER WHITE 2,040
RIGHT YELLOW MICA M.,570
PURPLE MICA METALLIC,924
SUPER RED 2,3E5
SUPER WHITE 2,040
DK.BL.GRAY ME,183
GREENISH YELLOW M.M,569
LT.GREEN ME,6M9
MI.GR.GREEN MCGR,6N1
PURPLE M.M,924
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER RED,3E5
DARK BLUE MICA M.,8J1
GRAYISH GREEN M.M.,6L6
RIGHT YELLOW MICA M.,570
SUPER RED 2,3E5
SUPER WHITE 2,040
GREENISH YELLOW M.M,569
LT.GREEN ME,6M9
SUPER RED,3E5
BLUE GRAY METALLIC,179
DARK BLUE MICA M.,8J1
GRAYISH GREEN M.M.,6L6
SUPER WHITE 2,040
RIGHT YELLOW MICA M.,570
PURPLE MICA METALLIC,924
SUPER RED 2,3E5
SUPER WHITE 2,040
DK.BL.GRAY ME,183
GREENISH YELLOW M.M,569
LT.GREEN ME,6M9
MI.GR.GREEN MCGR,6N1
PURPLE M.M,924
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015350011
main90153-50011
9017906097
main90179-06097
9331915016
main93319-15016
12 parts on this diagram · 1 diagram in section
