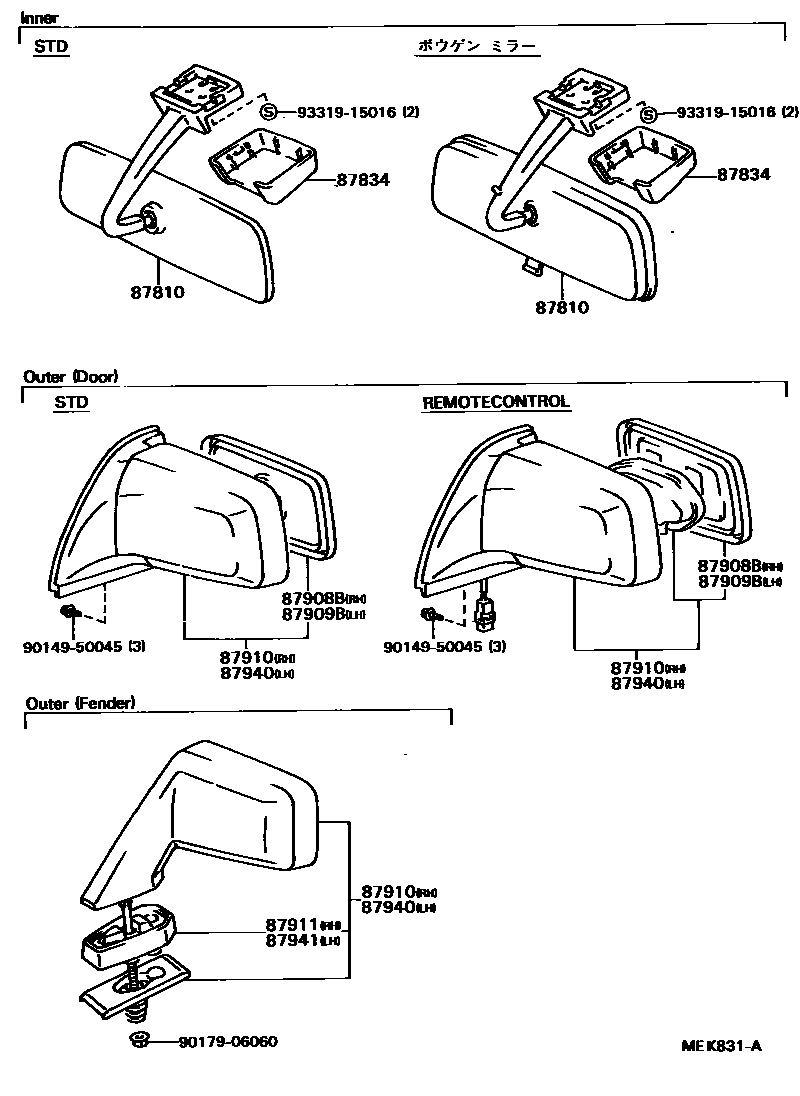

Toyota COROLLA 2 — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-16010-01iNL30..TX;EL3#..AR,GL,LIM,TX198805-199009

NEW BLACK,TRIM2#

main87810-16010-04iNL30..TX;EL3#..AR,CD,GL,LIM,TX198805-199009

BLUE,TRIM8#

main87810-16020-01iEL31,NL30..GL,GP,SRI,ZX198805-199009

NEW BLACK,TRIM2#

sub87810-22162

sub87810-19015

main87810-16020-04iEL31,NL30..GL,GP,SRI,ZX198805-199009

sub87810-22162

sub87810-19015

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-34iEL3#,NL30198805-199009

DEEP BLUE,TRIM8#

main87834-20080-53iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

SHADOW GRAY,TRIM2#

87908BMIRROR SUB-ASSY, RH

main87908-20040iEL30,NL30..GL198805-199009

main87931-20400iEL3#,NL30..AR,GP,LIM,SRI,ZX198805-199009

87909BMIRROR SUB-ASSY, LH

main87909-20040iEL30..5DS..TX198901-199009

main87961-20420iEL3#,NL30..AR,GP,LIM,SRI,ZX198805-199009

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16270iEL30,NL30..3DS..GL198805-199009

main87910-16300iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

main87910-16320iEL30,NL30..5DS..GL198805-199009

main87910-16361-01iEL30..3DS..TX199004-199009

BLACK,205

main87910-16361-02iEL30..3DS..TX198810-198908

main87910-16361-07iEL30..3DS..TX199004-199009

TURQUOISE,741

main87910-16361-08iEL30..3DS..TX198810-198908

main87910-16411-01iEL31..TBO198805-199009

BRACK METALLIC,27J

main87910-16411-02iEL3#..3DS..(AR,GP,LIM,SRI,ZX)198805-199009

RED,3E6

main87910-16411-03iEL31..3DS198805-199009

DARK SILVER METALLIC,23B

main87910-16411-04iEL31..3DS..(CBR,EFI)198805-199009

BLUE MICA METALLIC,8G1 ,26J

main87910-16411-07iEL3#..3DS..(AR,LIM,SRI)198805-199009

TURQUOIS METALLIC,741

main87910-16411-08iEL3#..3DS..(AR,GP,LIM,SRI,ZX)198805-199009

WHITE,041

main87910-16411-12iEL3#..3DS..(LIM,ZX)198805-199009

RED MICA,3H4

main87910-16411-14iEL3#..3DS..(GP,LIM,SRI,ZX)198805-199009

LIGHT BLUE METALLIC,8D8

main87910-16422-02iEL3#,NL30..5DS..(LIM,ZX)198805-199009

RED,3E6

main87910-16422-03iEL31,NL30..5DS..ZX198805-199009

DARK SILVER METALLIC,23B

main87910-16422-04iEL31,NL30..5DS..ZX198805-199009

BLUE MICA METALLIC,8G1

main87910-16422-07iEL30..5DS..LIM198805-199009

TURQUOIS METALLIC,741

main87910-16422-08iEL3#,NL30..5DS..(LIM,ZX)198805-199009

WHITE,041

main87910-16422-12iEL3#,NL30..5DS..(LIM,ZX)198805-199009

RED MICA,3H4

main87910-16422-14iEL3#,NL30..5DS..(LIM,ZX)198805-199009

LIGHT BLUE METALLIC,8D8

main87910-16450-02iEL30..5DS..TX198901-199009

SUPER RED,3E6

main87910-16450-08iEL30..5DS..TX198810-198908

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-16090iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16300iEL30,NL30..3DS..GL198805-199009

main87940-16340iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

main87940-16360iEL30,NL30..5DS..GL198805-199009

main87940-16411-01iEL30..3DS..TX199004-199009

BLACK,205

main87940-16411-02iEL30..3DS..TX198901-199009

RED,3E6

main87940-16411-07iEL30..3DS..TX199004-199009

TURQUOISE,741

main87940-16411-08iEL30..3DS..TX198901-199009

WHITE,041

main87940-16461-01iEL31..TBO198805-199009

BLACK METALLIC,27J

main87940-16461-02iEL3#..3DS..(AR,GP,LIM,SRI,ZX)198805-199009

RED,3E6

main87940-16461-03iEL31..3DS198805-199009

DARK SILVER METALLIC,23B

main87940-16461-04iEL31..3DS..(CBR,EFI)198805-199009

BLUE MICA METALLIC,8G1 ,26J

main87940-16461-07iEL3#..3DS..(AR,LIM,SRI)198805-199009

TURQUOIS METALLIC,741

main87940-16461-08iEL3#..3DS..(AR,GP,LIM,SRI,ZX)198805-199009

WHITE,041

main87940-16461-12iEL3#..3DS..(LIM,ZX)198805-199009

RED MICA,3H4

main87940-16461-14iEL3#..3DS..(GP,LIM,SRI,ZX)198805-199009

LIGHT BLUE METALLIC,8D8

main87940-16472-02iEL3#,NL30..5DS..(LIM,ZX)198805-199009

RED,3E6

main87940-16472-03iEL31,NL30..5DS..ZX198805-199009

DARK SILVER METALLIC,23B

main87940-16472-04iEL31,NL30..5DS..ZX198805-199009

BLUE MICA METALLIC,8G1

main87940-16472-07iEL30..5DS..LIM198805-199009

TURQUOIS METALLIC,741

main87940-16472-08iEL3#,NL30..5DS..(LIM,ZX)198805-199009

WHITE,041

main87940-16472-12iEL3#,NL30..5DS..(LIM,ZX)198805-199009

RED MICA,3H4

main87940-16472-14iEL3#,NL30..5DS..(LIM,ZX)198805-199009

LIGHT BLUE METALLIC,8D8

main87940-16500-02iEL30..5DS..TX198810-198908

main87940-16500-08iEL30..5DS..TX198901-199009

SUPER WHITE,041

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-16090iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

9014950045

main90149-50045

9017906060

main90179-06060

9331915016

main93319-15016

11 parts on this diagram · 1 diagram in section
