Toyota COROLLA 2 — MIRROR

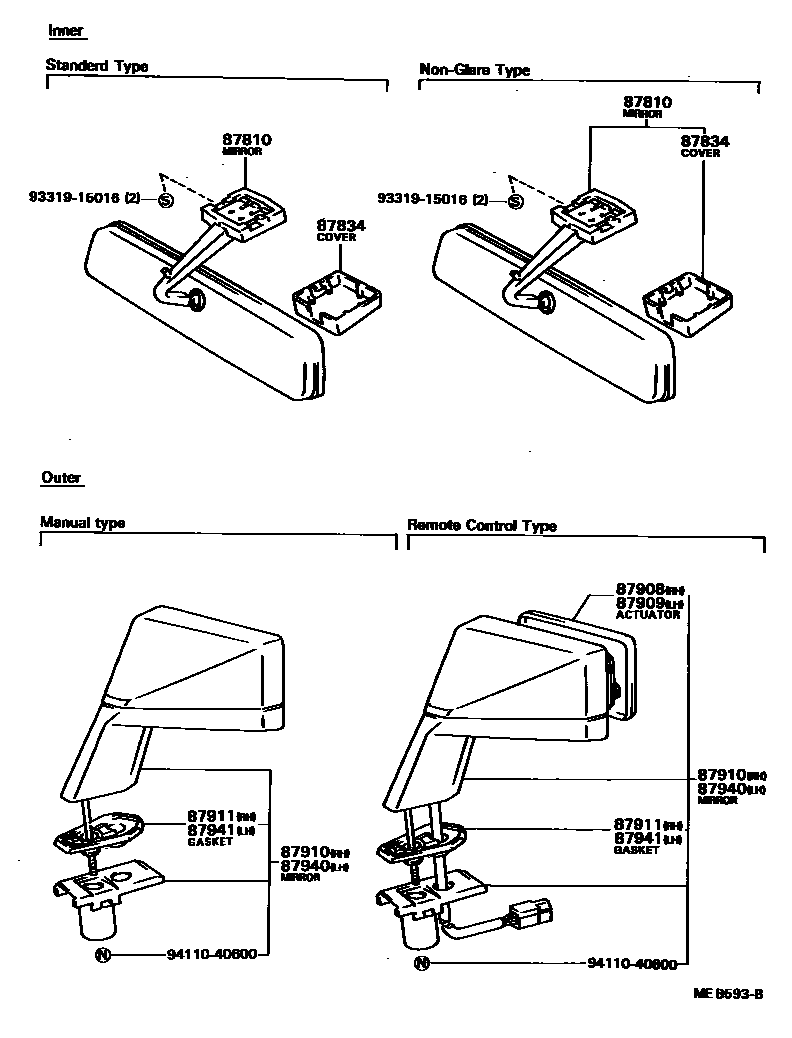

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-19015-18i198205-198604
IVORY,NON-GLARE TYPE,IVORY
main87810-20170-18i198205-198604
IVORY,STD TYPE,IVORY
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-18i198205-198604
IVORY,IVORY
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-12100i198408-198604
DOOR TYPE
main87908-32010i198205-198408
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-12090i198408-198604
DOOR TYPE
main87909-32010i198205-198408
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-16231i198408-198604
DOOR TYPE
main87910-16241i198408-198604
DOOR TYPE
main87910-16251i198408-198604
REMOTE CONTROL,DOOR TYPE
main87910-16261i198408-198604
REMOTE CONTROL,DOOR TYPE
main87910-80008i198205-198604
FENDER TYPE
main87910-80060i198305-198408
DOOR TYPE
main87910-80061i198305-198408
DOOR TYPE
main87910-80062i198305-198408
REMOTE CONTROL,DOOR TYPE
main87910-80063i198305-198408
REMOTE CONTROL,DOOR TYPE
main87910-80107i198205-198408
REMOTE CONTROL,FENDER TYPE
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-16070i198205-198604
main87911-16080i198205-198408
W/REMOTE CONTROL MIRROR
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-16261i198408-198604
DOOR TYPE
main87940-16271i198408-198604
DOOR TYPE
main87940-16281i198408-198604
REMOTE CONTROL,DOOR TYPE
main87940-16291i198408-198604
REMOTE CONTROL,DOOR TYPE
main87940-80008i198205-198604
FENDER TYPE
main87940-80061i198305-198408
DOOR TYPE
main87940-80062i198305-198408
DOOR TYPE
main87940-80063i198305-198408
REMOTE CONTROL,DOOR TYPE
main87940-80064i198305-198408
REMOTE CONTROL,DOOR TYPE
main87940-80107i198205-198408
REMOTE CONTROL,FENDER TYPE
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-16070i198205-198604
main87941-16080i198409-198604
W/REMOTE CONTROL MIRROR
9331915016
main93319-15016
9411040600
main94110-40600

10 parts on this diagram · 2 diagrams in section

MIRROR for Toyota COROLLA 2

This section contains 18 genuine Toyota parts for the MIRROR system of the Toyota COROLLA 2. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, ACTUATOR ASSY, OUTER MIRROR, RH.
