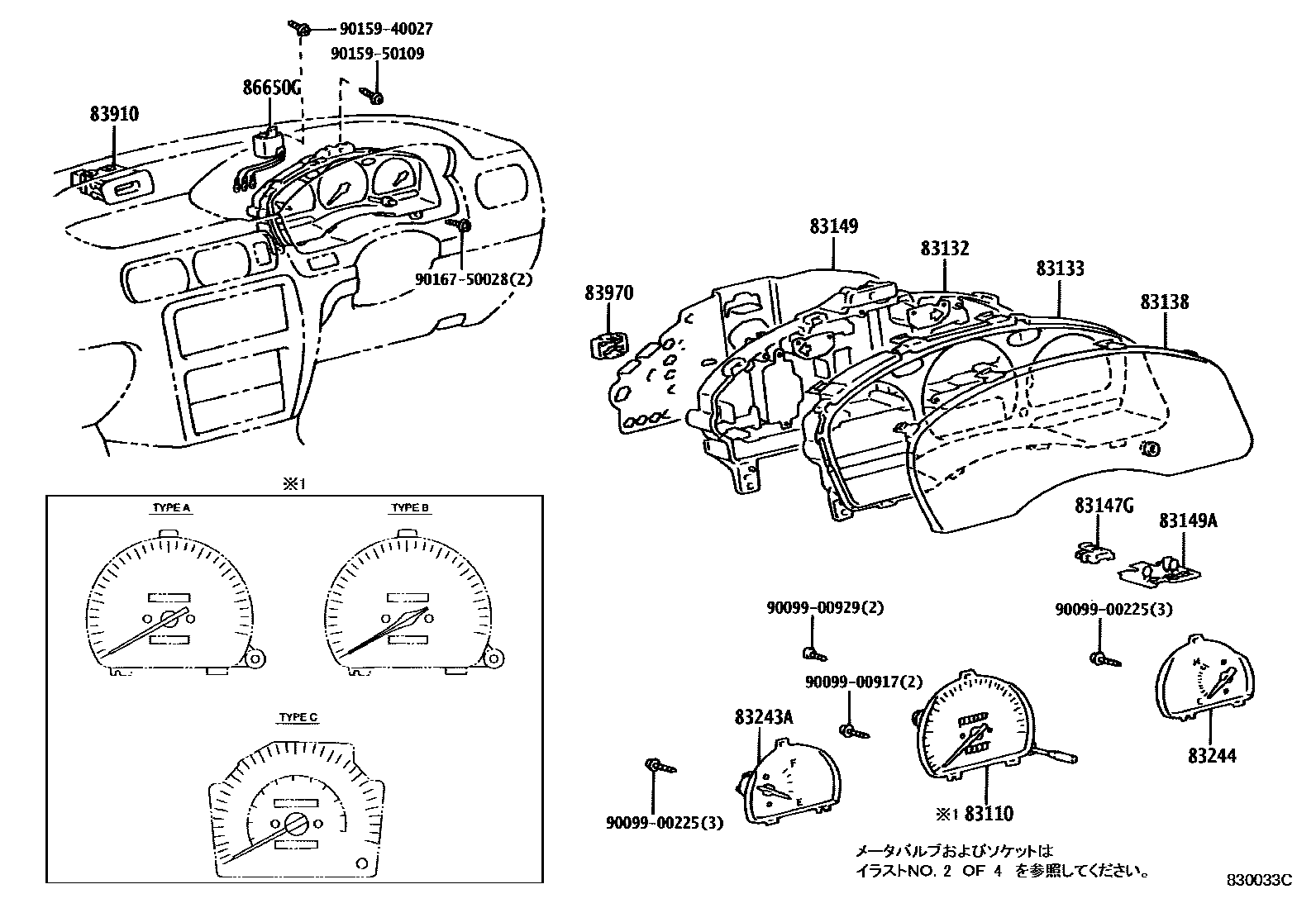

Toyota COROLLA 2 — METER

0001 1 0002 1��(�� �-�) 0003 1����� & ����:��(�����) 0004 1����� & ����:��(�����) 0005 1 0006 1

83110SPEEDOMETER ASSY

main83110-1G380iEL51,55,NL50..LIM,WIN199409-199508

main83110-1G381iEL51,55,NL50..LIM,WIN199508-199701

main83110-1G382iEL51,55,NL50..MTM..(LIM,WIN)199701-199706

main83110-1G460iEL53,55..TIA199409-199712

main83220-16080iEL51,55,NL50..LIM,WIN199712

main83220-16180iEL53,55..TIA199712

83132CASE, COMBINATION METER

main83132-1G020iEL53,55..5F..TIA199409

main83132-1G040iEL53,55..4FC..TIA199409

main83132-1S130iEL51,55..LIM,WIN199409-199608

main83132-1S131iEL51,55..LIM,WIN199608-199708

main83132-1S132iEL51,55..LIM,WIN199708

main83132-1S150iNL50199409-199608

main83132-1S151iNL50199608

83133PLATE, COMBINATION METER, NO.1

main83133-1G020iEL53,55..TIA199409-199712

main83133-1G310iEL51,55,NL50..LIM,WIN199409-199608

main83811-10120iEL51,55,NL50..LIM,WIN199608-199712

main83811-16300iEL53,55..TIA199712

83138GLASS, SPEEDOMETER

main83138-16630iEL51,55,NL50..LIM,WIN199409

main83138-1G020iEL53,55..TIA199409

83147GCONNECTOR, COMBINATION METER

main83147-16010iNL50..5F199409

83149PLATE, METER CIRCUIT

main83149-1G020iEL53,55..5F..TIA199409-199608

main83149-1G040iEL53..4FC199409-199608

main83149-1G060iEL55..4FC..TIA199409-199608

main83149-1G510iEL51,55..MTM..(LIM,WIN)199409-199608

main83149-1G511iEL51,55..MTM..(LIM,WIN)199608-199708

main83149-1G512iEL51,55..MTM..(LIM,WIN)199708-199712

main83149-1G530iEL51,55..ATM..(LIM,WIN)199409-199608

main83149-1G531iEL51,55..ATM..(LIM,WIN)199608-199708

main83149-1G532iEL51,55..ATM..(LIM,WIN)199708-199712

main83149-1G550iNL50..5F199409-199608

main83149-1G551iNL50..5F199608-199712

main83149-1G570iNL50..4FC199409-199608

main83149-1G571iNL50..4FC199608-199712

main83861-16160iEL51,55..MTM..(LIM,WIN)199712

main83861-16170iEL51..3FC199712

main83861-16190iEL55..4FC..WIN199712

main83861-16200iNL50..5F199712

main83861-16210iNL50..4FC199712

main83861-16290iEL53,55..5F..TIA199712

main83861-16300iEL53..4FC199712

main83861-16320iEL55..4FC..TIA199712

main83861-1G011iEL53,55..5F..TIA199608-199708

main83861-1G012iEL53,55..5F..TIA199708-199712

main83861-1G021iEL53..4FC199608-199708

main83861-1G022iEL53..4FC199708-199712

main83861-1G041iEL55..4FC..TIA199608-199712

83149APLATE, METER CIRCUIT, NO.2

main83149-1G610iNL50..5F199409

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1G020iEL53..5F199409-199712

main83243-1G040iEL53..4FC199409-199712

main83243-1G060iEL55..5F..TIA199409-199712

main83243-1G080iEL55..4FC..TIA199409-199712

main83243-1G150iEL51,NL50..MTM199409-199508

main83243-1G151iEL51,NL50..MTM199508-199712

main83243-1G170iEL51,NL50..ATM199409-199508

main83243-1G171iEL51,NL50..ATM199508-199712

main83243-1G190iEL55..5F..WIN199409-199508

main83243-1G191iEL55..5F..WIN199508-199712

main83243-1G210iEL55..4FC..WIN199409-199508

main83243-1G211iEL55..4FC..WIN199508-199712

main83882-16160iEL51,NL50..MTM199712

main83882-16170iEL51,NL50..ATM199712

main83882-16180iEL55..5F..WIN199712

main83882-16190iEL55..4FC..WIN199712

main83882-16500iEL53..5F199712

main83882-16510iEL53..4FC199712

main83882-16520iEL55..5F..TIA199712

main83882-16530iEL55..4FC..TIA199712

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-16650iEL51,55,NL50..LIM,WIN199409-199508

main83244-16651iEL51,55,NL50..LIM,WIN199508-199712

main83883-16160iEL51,55,NL50..LIM,WIN199712

83910CLOCK ASSY

main83910-16190-B0iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main83910-16190-B1iEL5#,NL50199608

GRAY,TRIM1#

main83910-16190-E0iEL5#,NL50199712

OAK,TRIM4#

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iEL53,55..4FC..TIA199409

main83970-20010iEL51,55,NL50..ATM..(LIM,WIN)199409

86650GBUZZER ASSY

main86650-12030iEL5#,NL50199409

9009900225

main90099-00225

9009900917

main90099-00917

9009900929

main90099-00929

9015940027

main90159-40027

9015950109

main90159-50109

9016750028

main90167-50028

18 parts on this diagram · 6 diagrams in section
