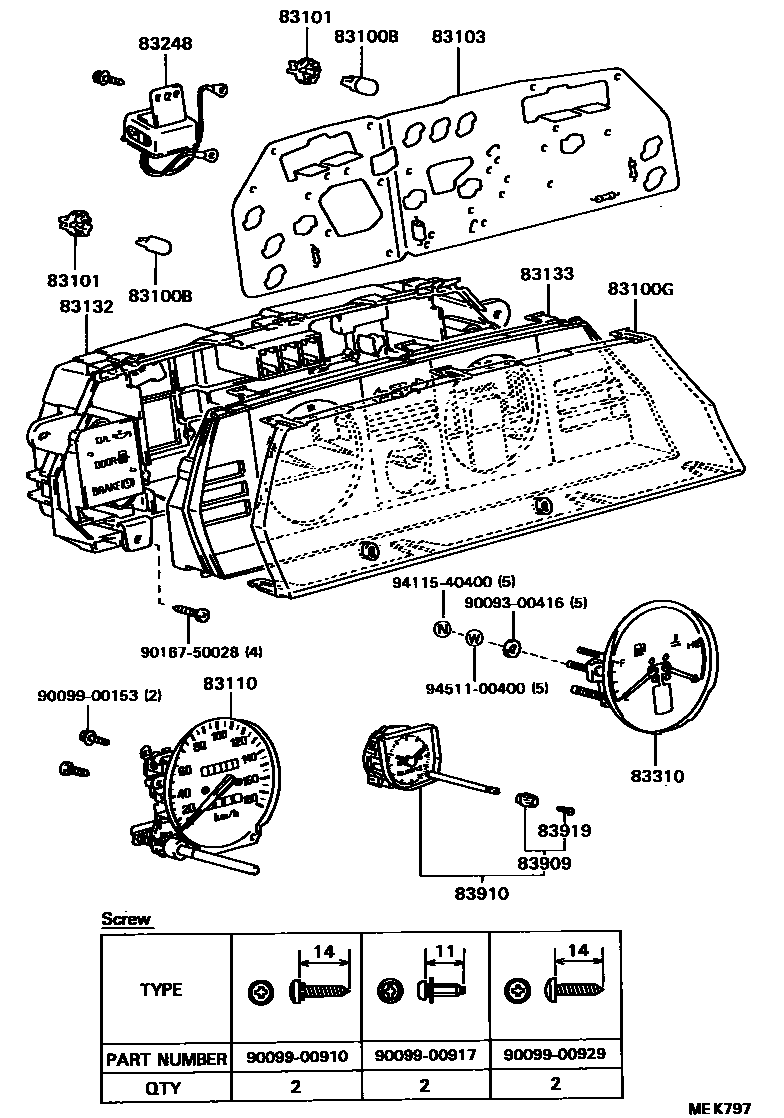

Toyota COROLLA 2 — METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main83109-24020×4iEL30..CD,LIM,TX198805-199009

main90981-11018×4iEL30..GL198805-199009

main99132-12034×3iEL31..AR198805-199009

83100GGLASS, COMBINATION METER

main83138-16180iEL31..AR,GP,SRI198805-199009

main83138-16430iNL30;EL3#..GL,ZX198805-199009

main83138-16450iEL30..CD,TX198805-199009

main83138-16470iEL30..LIM198805-199009

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×7iEL30..CD,LIM,TX198805-199009

BULB=12V 3.4W

main83101-14040×4iEL30..GL198805-199009

main83101-20040×10iEL31..EFI,TBO198805-199009

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-16400iEL31..AR198805-199009

main83247-16420iEL31..TBO198805-199009

main83247-16440iEL31..EFI198805-199009

main83247-1G490iEL31..ZX198805-199009

main83247-1G510iNL30..5F..(GL,TX)198805-199009

main83247-1G530iEL30..LIM198805-199009

main83247-1G550iEL30..CD,TX198805-199009

main83247-1G790iNL30..4FC..(GL,TX)198805-199009

main83247-1G810iNL30..5F..ZX198805-199009

main83247-1G830iNL30..4FC..ZX198805-199009

main83247-1G850iEL30..GL198805-199009

83110SPEEDOMETER ASSY

main83110-16410iEL30..CD,LIM,TX198805-199009

main83110-1G141iNL30198805-199009

main83110-1G160iEL3#..GL,ZX198805-199009

main83110-1G170iEL31..AR198805-199009

main83110-1G180iEL31..EFI,TBO198805-199009

83132CASE, COMBINATION METER

main83132-16280iEL31..AR,GP,SRI198805-199009

main83132-16850iEL31..ZX198805-199009

main83132-16890iEL30..CD,LIM,TX198805-199009

main83132-1G130iEL30..GL198805-199009

main83132-1G150iNL30..GL,TX198805-199009

main83132-1G170iNL30..ZX198805-199009

83133PLATE, COMBINATION METER, NO.1

main83133-16890iNL30;EL3#..GL,ZX198805-199009

main83133-1G010iEL30..CD,TX198805-199009

main83133-1G030iEL30..LIM198805-199009

83248CHIME, SPEED WARNING

main86640-16050iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

sub86640-10050

main86640-16060iEL31..AR,GP,SRI198805-199009

sub86640-20150

83310GAGE ASSY, FUEL RECEIVER

main83243-16160iEL31..AR,GP,SRI198805-199009

main83243-16750iEL30..CD,LIM,TX198805-199009

main83243-16770iEL31,NL30..ZX198805-199009

main83243-16790iEL30..GL;NL30..GL,TX198805-199009

83909KNOB, CLOCK

main83909-14012iEL30..LIM198805-199009

main83909-22180iNL30;EL3#..AR,GL,GP,SRI,ZX198805-199009

83910CLOCK ASSY

main83910-16130iEL30..LIM198805-199009

main83910-16140iNL30;EL3#..GL,ZX198805-199009

main83910-16150iEL31..AR,GP,SRI198805-199009

83919SCREW, CLOCK

main83919-12230iNL30;EL3#..AR,GL,GP,SRI,ZX198805-199009

main83919-14012iEL30..TX198805-199009

9009300416

main90093-00416

9009900153

main90099-00153

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9016750028

main90167-50028

9411540400

main94115-40400

9451100400

main94511-00400

20 parts on this diagram · 5 diagrams in section
