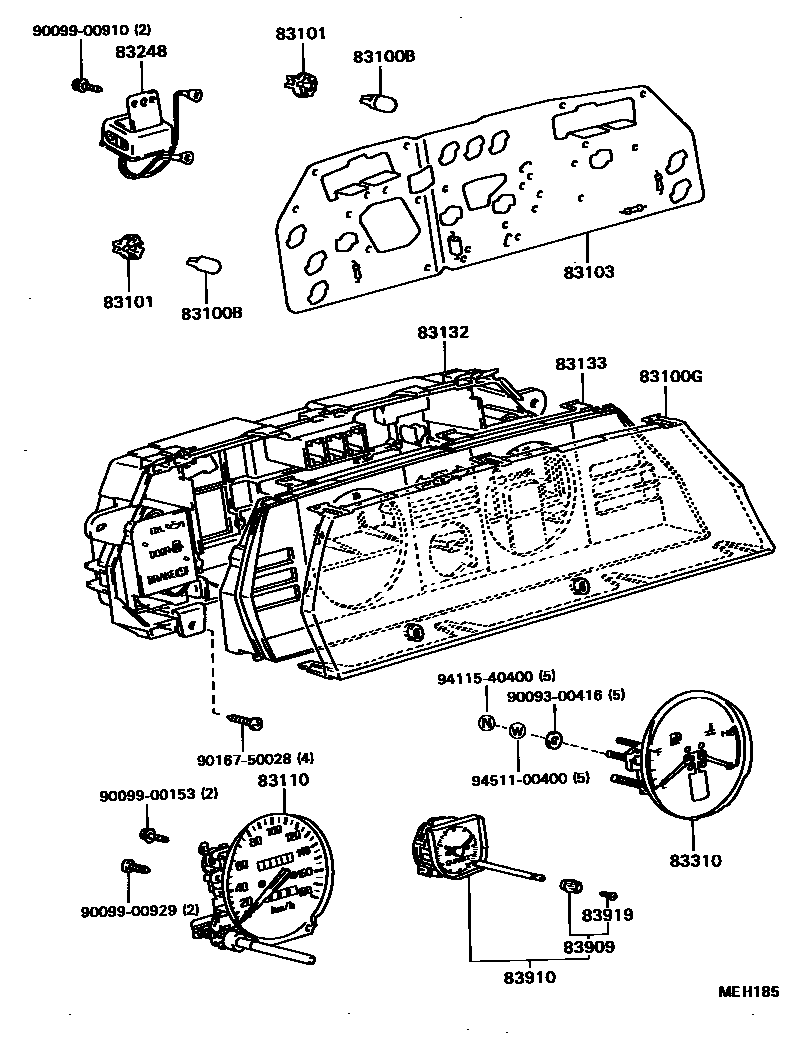

Toyota COROLLA 2 — METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030×4iEL30198605-198805

main90981-11018×7iNL30198605-198805

main99132-12034×11iEL3#,NL30198605-198805

83100GGLASS, COMBINATION METER

main83138-16120iEL31..SR198605-198805

main83138-16160iEL31..TBO198609-198805

main83138-16430iNL30198605-198805

main83138-16450iEL30..CD,TX198605-198805

main83138-16470iEL30198605-198805

W/CLOCK

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×12iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

BULB,12V 3.4W

main83101-14040×7iNL30198605-198805

BULB,12V 1.4W

main83101-20040×11iEL31..GP,SR198605-198805

BULB,12V 3.4W

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-16400iEL31..SR198605-198805

main83247-16420iEL31..TBO198609-198805

main83247-1G490iEL31..ZX198605-198805

main83247-1G510iNL30..5F198605-198805

main83247-1G530iEL30198605-198805

W/CLOCK

main83247-1G550iEL30..CD,TX198605-198805

main83247-1G790iNL30..4FC198609-198805

83110SPEEDOMETER ASSY

main83110-16280iEL30198605-198805

main83110-1G040iEL31..ZX198605-198805

main83110-1G050iEL31..TBO198609-198805

main83110-1G060iEL31..SR198605-198805

main83110-1G140iNL30198605-198805

83132CASE, COMBINATION METER

main83132-16280iEL31..GP,SR198605-198805

main83132-16850iEL31..ZX198605-198805

main83132-16870iNL30198605-198805

main83132-16890iEL30198605-198805

83133PLATE, COMBINATION METER, NO.1

main83133-16890iEL31..ZX198605-198805

main83133-1G010iEL30..CD,TX198605-198805

main83133-1G030iEL30198605-198805

W/CLOCK

83248CHIME, SPEED WARNING

main86640-16050iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

sub86640-10050

main86640-16060iEL31..GP,SR198605-198805

sub86640-20150

83310GAGE ASSY, FUEL RECEIVER

main83243-16120iEL31..GP,SR198605-198805

main83243-16570iEL31..ZX198605-198805

main83243-16590iNL30198605-198805

main83243-16610iEL30198605-198805

83909KNOB, CLOCK

main83909-14012iEL30198605-198805

main83909-22180iEL31198605-198805

83910CLOCK ASSY

main83910-16120iEL30198605-198805

main83910-16140iEL31..ZX198605-198805

main83910-16150iEL31..GP,SR198605-198805

83919SCREW, CLOCK

main83919-12230iEL31198605-198805

main83919-14012iEL30198605-198805

9009300416

main90093-00416

9009900153

main90099-00153

9009900910

main90099-00910

9009900929

main90099-00929

9016750028

main90167-50028

9411540400

main94115-40400

9451100400

main94511-00400

19 parts on this diagram · 5 diagrams in section
