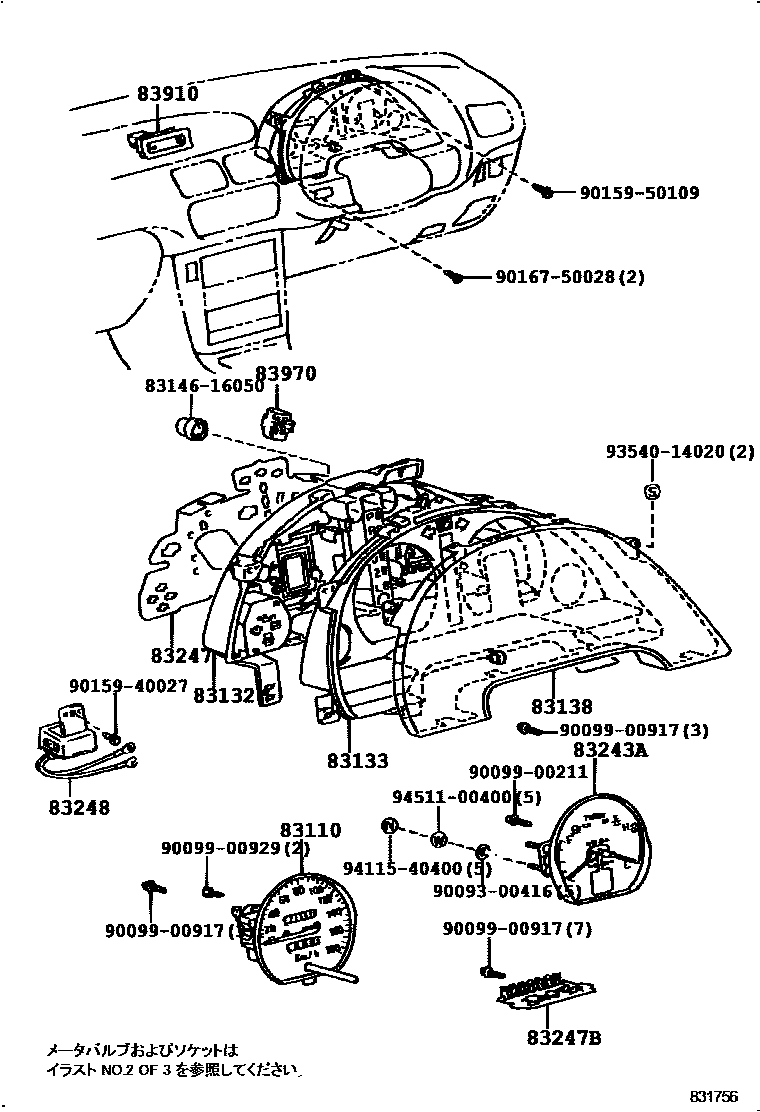

Toyota COROLLA 2 — METER

0001 1��������� - ��(�����) & ���� 0002 1��������� - ��(�����) & ���� 0003 1����� & ���� - ��(�����) 0004 1����� & ���� - ��(�����) 0005 1����� & ���

83110SPEEDOMETER ASSY

main83110-1G200iEL41,45,NL40..LIM,TX,WIN199009-199208

main83110-1G201iEL41,45,NL40..LIM,TX,WIN199208-199308

main83110-1G202iEL41,45,NL40..LIM,TX,WIN199308-199409

main83110-1G230iEL43,45..SR,ZS199009-199208

main83110-1G231iEL43,45..SR,ZS199208-199308

main83110-1G232iEL43,45..SR,ZS199308-199409

83132CASE, COMBINATION METER

main83132-16300iEL43,45..SR,ZS199009-199208

main83132-1G410iEL45..5F..WIN199009-199208

main83132-1G430iEL45..4FC..WIN199009-199208

main83132-1G450iEL41..4F..(TX,WIN)199009-199208

main83132-1G470iEL41..4F..LIM199009-199208

main83132-1G490iEL41..3FC199009-199208

main83132-1G510iNL40..5F199009-199208

main83132-1G530iNL40..4FC199009-199208

main83132-1G610iEL41..4F199208-199409

main83132-1G630iNL40..5F199208-199409

main83132-1G770iEL41..3FC199208-199409

main83132-1G790iNL40..4FC199208-199409

main83132-1G810iEL45..5F..WIN199208-199409

main83132-1G830iEL45..4FC..WIN199208-199409

main83132-1S010iEL43,45..SR,ZS199208-199409

83133PLATE, COMBINATION METER, NO.1

main83133-16100iEL43,45..5F..(SR,ZS)199009-199409

main83133-16120iEL43,45..4FC..(SR,ZS)199009-199409

main83133-1G110iNL40..5F;EL41..4F..LIM199009-199208

main83133-1G130iEL41..3FC199208-199409

main83133-1G150iEL45..5F..WIN199009-199208

main83133-1G170iEL45..4FC..WIN199009-199208

main83133-1G190iEL41..4F..(TX,WIN)199009-199208

83138GLASS, SPEEDOMETER

main83138-16220iEL43,45..SR,ZS199009-199409

main83138-16550iEL41,45,NL40..LIM,TX,WIN199009-199409

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-16180iEL43199009-199409

main83243-16200iEL45..SR199009-199409

main83243-16850iEL45..WIN199009-199409

main83243-16870iEL41199009-199409

main83243-16890iNL40199009-199409

83247PLATE, METER CIRCUIT

main83149-16010iEL41..4F..LIM199009-199208

main83149-16020iEL43..5F..EFI199009-199208

main83149-16030iEL41..3FC199009-199208

main83149-16040iEL43..4FC..EFI199009-199208

main83149-16050iNL40..5F199009-199208

main83149-16060iEL43..5F..EFIS199009-199208

main83149-16070iNL40..4FC199009-199208

main83149-16080iEL43..4FC..EFIS199009-199208

main83149-16090iEL45..5F..WIN199009-199208

main83149-16110iEL45..4FC..WIN199009-199208

main83149-16140iEL45..5F..SR199009-199208

main83149-16160iEL45..4FC..SR199009-199208

main83149-16770iEL41..4F..TX199208-199308

main83149-16790iEL41..4F..TX199208-199308

main83149-16810iEL41..3FC199208-199308

main83149-16830iNL40..5F199208-199308

main83149-16850iNL40..4FC199208-199308

main83149-16870iEL45..5F..WIN199208-199308

main83149-16890iEL45..4FC..WIN199208-199308

main83149-1G110iEL43,45..5F..SR199208-199409

main83149-1G130iEL43..4FC..EFI199208-199409

main83149-1G150iEL43..5F..EFIS199208-199409

main83149-1G230iEL45..4FC..SR199208-199409

main83149-1G290iEL43..4FC..EFIS199208-199409

main83149-1G450iEL41199308-199409

main83149-1G470iNL40199308-199409

main83149-1G490iEL45..WIN199308-199409

main83247-1G890iEL41..4F..(TX,WIN)199009-199208

83247BPLATE, METER CIRCUIT, NO.2

main83149-16390iNL40199009-199409

83248CHIME, SPEED WARNING

main86640-16070iEL43,45..SR,ZS199009-199308

sub86640-87006

main86640-16080iEL41,45,NL40..LIM,TX,WIN199009-199308

main86650-16020iEL43,45..SR,ZS199308-199409

main86650-16030iEL41,45,NL40..LIM,TX,WIN199308-199409

83910CLOCK ASSY

main83910-16160-01iEL4#,NL40199009-199208

BLACK,TRIM2#

main83910-16160-04iEL4#,NL40199009-199208

GRAISH BLUE,TRIM8#

main83910-16160-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

main83910-16160-22iEL4#,NL40199208-199409

BLACK,TRIM2#

main83910-16160-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

main83910-16160-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iEL43,45..4FC..(SR,ZS)199208-199409

main83970-20010iEL41,45,NL40..ATM..(LIM,TX,WIN)199009-199409

main83970-22010iEL43,45..4FC..(SR,ZS)199009-199208

8314616050GROMMET, METER GLASS

main83146-16050

9009300416

main90093-00416

9009900211

main90099-00211

9009900917

main90099-00917

9009900929

main90099-00929

9015940027

main90159-40027

9015950109

main90159-50109

9016750028

main90167-50028

9354014020

main93540-14020

9411540400

main94115-40400

9451100400

main94511-00400

21 parts on this diagram · 5 diagrams in section
