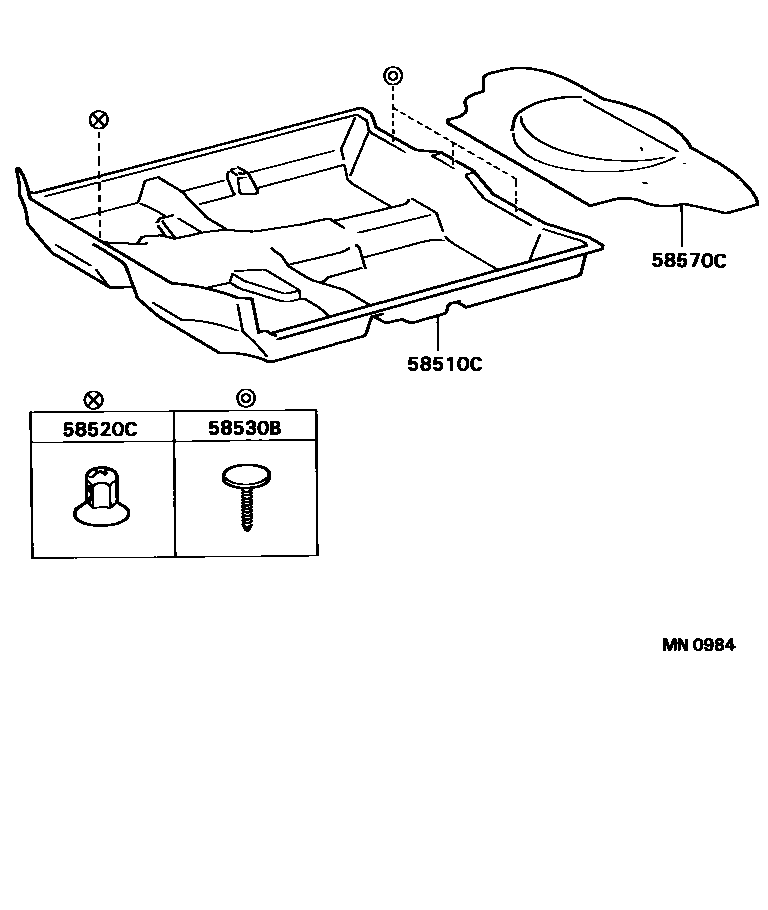

Toyota COROLLA 2 — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1G370-01iEL41,NL40..TX,WIN199009-199208

main58510-1G370-04iEL41,NL40..TX,WIN199009-199208

main58510-1G370-07iEL41,NL40..WIN199009-199208

main58510-1G371-22iEL41,NL40..TX,WIN199208-199409

sub58510-1G371

main58510-1G371-G0iEL41,NL40..WIN199208-199409

sub58510-1G371

main58510-1G371-W4iEL41,NL40..TX,WIN199208-199409

sub58510-1G371

main58510-1G380-01iEL41,NL40..TX,WIN199009-199208

BLACK,TRIM2#

sub58510-1G380

main58510-1G380-04iEL41,NL40..TX,WIN199009-199208

GRAYISH BLUE,TRIM8#

sub58510-1G380

main58510-1G380-07iEL41,NL40..WIN199009-199208

SPRUCE,TRIM6#

sub58510-1G380

main58510-1G381-22iEL41,NL40..TX,WIN199208-199409

BLACK,TRIM2#

sub58510-1G381

main58510-1G381-G0iEL41,NL40..WIN199208-199409

SPRUCE,TRIM6#

sub58510-1G381

main58510-1G381-W4iEL41,NL40..TX,WIN199208-199409

EISEN BLUE,TRIM8#

sub58510-1G381

main58510-1G390-01iEL43199009-199208

sub58510-1G392

main58510-1G390-04iEL43199009-199208

sub58510-1G392

main58510-1G390-07iEL43199009-199208

sub58510-1G392

main58510-1G391-22iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G392

main58510-1G391-G0iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G392

main58510-1G391-W4iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G392

main58510-1G392-C0iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G392

main58510-1G392-G1iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G392

main58510-1G392-J0iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G392

main58510-1G400-01iEL43199009-199208

sub58510-1G402

main58510-1G400-04iEL43199009-199208

sub58510-1G402

main58510-1G400-07iEL43199009-199208

sub58510-1G402

main58510-1G401-22iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G402

main58510-1G401-G0iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G402

main58510-1G401-W4iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G402

main58510-1G402-C0iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G402

main58510-1G402-G1iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G402

main58510-1G402-J0iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G402

main58510-1G410-01iEL41..LIM199009-199208

sub58510-1G370

main58510-1G410-04iEL41..LIM199009-199208

sub58510-1G370

main58510-1G410-07iEL41..LIM199009-199208

sub58510-1G370

main58510-1G420-01iEL41..LIM199009-199208

BLACK,TRIM2#

sub58510-1G380

main58510-1G420-04iEL41..LIM199009-199208

GRAYISH BLUE,TRIM8#

sub58510-1G380

main58510-1G420-07iEL41..LIM199009-199208

SPRUCE,TRIM6#

sub58510-1G380

main58510-1G430-01iEL45199009-199208

main58510-1G430-04iEL45199009-199208

main58510-1G430-07iEL45199009-199208

main58510-1G431-22iEL45199208-199308

sub58510-1G432

main58510-1G431-G0iEL45199208-199308

sub58510-1G432

main58510-1G431-W4iEL45199208-199308

sub58510-1G432

main58510-1G432-C0iEL45199308-199409

sub58510-1G432

main58510-1G432-G1iEL45199308-199409

sub58510-1G432

main58510-1G432-J0iEL45199308-199409

sub58510-1G432

main58510-1G440-01iEL45..SR199009-199208

main58510-1G440-04iEL45..SR199009-199208

main58510-1G440-07iEL45..SR199009-199208

main58510-1G441-22iEL45..SR199208-199308

sub58510-1G442

main58510-1G441-G0iEL45..SR199208-199308

sub58510-1G442

main58510-1G441-W4iEL45..SR199208-199308

sub58510-1G442

main58510-1G442-C0iEL45..SR199308-199409

sub58510-1G442

main58510-1G442-G1iEL45..SR199308-199409

sub58510-1G442

main58510-1G442-J0iEL45..SR199308-199409

sub58510-1G442

main58510-1G450-01iEL45..SR199009-199208

sub58510-1G430

main58510-1G450-04iEL45..SR199009-199208

sub58510-1G430

main58510-1G450-07iEL45..SR199009-199208

sub58510-1G430

main58510-1G451-22iEL45..SR199208-199308

sub58510-1G452

main58510-1G451-G0iEL45..SR199208-199308

sub58510-1G452

main58510-1G451-W4iEL45..SR199208-199308

sub58510-1G452

main58510-1G452-C0iEL45..SR199308-199409

sub58510-1G432

main58510-1G452-G1iEL45..SR199308-199409

sub58510-1G432

main58510-1G452-J0iEL45..SR199308-199409

sub58510-1G432

main58510-1G460-01iEL45199009-199208

BLACK,TRIM2#

main58510-1G460-04iEL45199009-199208

GRAYISH BLUE,TRIM8#

main58510-1G460-07iEL45199009-199208

SPRUCE,TRIM6#

main58510-1G461-22iEL45199208-199308

BLACK,TRIM2#

sub58510-1G462

main58510-1G461-G0iEL45199208-199308

SPRUCE,TRIM6#

sub58510-1G462

main58510-1G461-W4iEL45199208-199308

EISEN BLUE,TRIM8#

sub58510-1G462

main58510-1G462-C0iEL45199308-199409

BLACK,TRIM2#

sub58510-1G442

main58510-1G462-G1iEL45199308-199409

SPRUCE,TRIM6#

sub58510-1G442

main58510-1G462-J0iEL45199308-199409

EISEN BLUE,TRIM8#

sub58510-1G442

main58510-1G470-01iEL41..LIM199009-199208

main58510-1G470-04iEL41..LIM199009-199208

main58510-1G470-07iEL41..LIM199009-199208

main58510-1G480-01iEL41..LIM199009-199208

main58510-1G480-04iEL41..LIM199009-199208

main58510-1G480-07iEL41..LIM199009-199208

main58510-1G560-01iEL43199009-199208

sub58510-1G562

main58510-1G560-04iEL43199009-199208

sub58510-1G562

main58510-1G560-07iEL43199009-199208

sub58510-1G562

main58510-1G561-22iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G562

main58510-1G561-G0iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G562

main58510-1G561-W4iEL41,43..LIM,SR,ZS199208-199308

sub58510-1G562

main58510-1G562-C0iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G562

main58510-1G562-G1iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G562

main58510-1G562-J0iEL41,43..LIM,SR,ZS199308-199409

sub58510-1G562

main58510-1G570-01iEL43199009-199208

BLACK,TRIM2#

sub58510-1G572

main58510-1G570-04iEL43199009-199208

GRAYISH BLUE,TRIM8#

sub58510-1G572

main58510-1G570-07iEL43199009-199208

SPRUCE,TRIM6#

sub58510-1G572

main58510-1G571-22iEL41,43..LIM,SR,ZS199208-199308

BLACK,TRIM2#

sub58510-1G572

main58510-1G571-G0iEL41,43..LIM,SR,ZS199208-199308

SPRUCE,TRIM6#

sub58510-1G572

main58510-1G571-W4iEL41,43..LIM,SR,ZS199208-199308

EISEN BLUE,TRIM8#

sub58510-1G572

main58510-1G572-C0iEL41,43..LIM,SR,ZS199308-199409

BLACK,TRIM2#

sub58510-1G572

main58510-1G572-G1iEL41,43..LIM,SR,ZS199308-199409

SPRUCE,TRIM6#

sub58510-1G572

main58510-1G572-J0iEL41,43..LIM,SR,ZS199308-199409

EISEN BLUE,TRIM8#

sub58510-1G572

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05051-01iEL41..TX199009-199208

BLACK,TRIM2#,8#

sub90467-05051

main90467-05051-01iEL41..TX199009-199208

BLACK,TRIM2#,6#,8#

sub90467-05051

main90467-05051-22iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

BLACK,TRIM2#,6#,8#

sub90467-05051

main90467-05051-22iEL41..TX199208-199409

BLACK,TRIM2#,8#

sub90467-05051

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06037-01iEL41..TX199009-199208

BLACK,TRIM2#,8#

sub90467-06037

main90467-06037-01iEL41..TX199009-199208

BLACK,TRIM2#,6#,8#

sub90467-06037

main90467-06037-C0iEL41..TX199208-199212

BLACK,TRIM2#,8#

sub90467-06037

main90467-06037-C0iEL41..TX199208-199212

BLACK,TRIM2#,6#,8#

sub90467-06037

main90467-06166-C0iEL41..TX199212-199409

BLACK,TRIM2#,8#

main90467-06166-C0iEL41..TX199212-199409

BLACK,TRIM2#,6#,8#

58570CCARPET ASSY, REAR FLOOR

main58571-16250-01iEL41,43,NL40199009-199208

BLACK,TRIM2#

sub58571-16250

main58571-16250-04iEL41,43,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub58571-16250

main58571-16250-07iEL41,43,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub58571-16250

main58571-16250-22iEL41,43,NL40199208-199409

BLACK,TRIM2#

sub58571-16250

main58571-16250-G0iEL41,43,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub58571-16250

main58571-16250-W4iEL41,43,NL40199208-199409

EISEN BLUE,TRIM8#

sub58571-16250

main58571-16260-01iEL45199009-199208

BLACK,TRIM2#

sub58571-16260

main58571-16260-04iEL45199009-199208

GRAYISH BLUE,TRIM8#

sub58571-16260

main58571-16260-07iEL45199009-199208

SPRUCE,TRIM6#

sub58571-16260

main58571-16260-22iEL45199208-199409

BLACK,TRIM2#

sub58571-16260

main58571-16260-G0iEL45199208-199409

SPRUCE,TRIM6#

sub58571-16260

main58571-16260-J0iEL45199208-199409

EISEN BLUE,TRIM8#

sub58571-16260

main58571-16320-01iEL45199009-199208

sub58571-16320

main58571-16320-04iEL45199009-199208

sub58571-16320

main58571-16320-07iEL45199009-199208

sub58571-16320

main58571-16320-22iEL45199208-199409

sub58571-16320

main58571-16320-G0iEL45199208-199409

sub58571-16320

main58571-16320-J0iEL45199208-199409

sub58571-16320

4 parts on this diagram · 1 diagram in section
