Toyota COROLLA 2 — MAT & CARPET

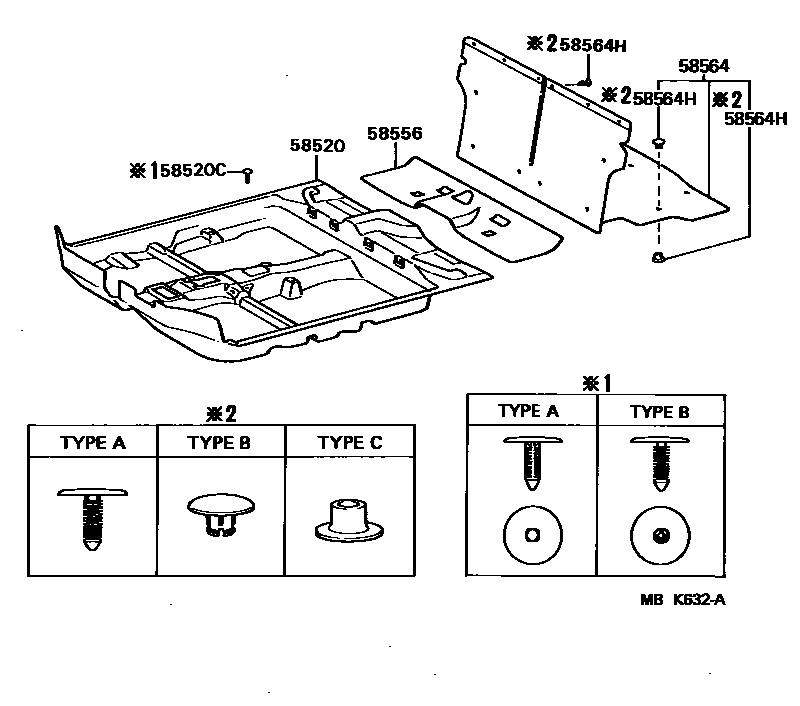

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-16370-01i198605-198609
BLACK,BLACK,TRIM2#
main58510-16370-04i198605-198609
BLUE,BLUE,TRIM8#
main58510-16370-05i198605-198609
BEIGE,DARK BEIGE,TRIM4#
main58510-16480-01i198605-198609
BLACK,BLACK,TRIM2#
main58510-16480-04i198605-198609
BLUE,BLUE,TRIM8#
main58510-16480-05i198605-198609
BEIGE,DARK BEIGE,TRIM4#
main58510-16500-01i198605-198609
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16500-04i198605-198609
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16500-05i198605-198609
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16520-01i198605-198609
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16520-04i198605-198609
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16520-05i198605-198609
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16670-01i198605-198609
BLACK,BLACK,TRIM2#
main58510-16670-04i198605-198609
BLUE,BLUE,TRIM8#
main58510-16670-05i198605-198609
BEIGE,DARK BEIGE,TRIM4#
main58510-16680-01i198605-198609
BLACK,BLACK,TRIM2#
main58510-16680-04i198605-198609
BLUE,BLUE,TRIM8#
main58510-16680-05i198605-198609
BEIGE,DARK BEIGE,TRIM4#
main58510-16690-01i198605-198609
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16690-04i198605-198609
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16690-05i198605-198609
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16700-01i198605-198609
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16700-04i198605-198609
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16700-05i198605-198609
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16720-01i198605-198609
BLACK,BLACK,TRIM2#
main58510-16720-04i198605-198609
BLUE,DARK BLUE,TRIM8#
main58510-16720-05i198605-198609
BEIGE,DARK BEIGE,TRIM4#
main58510-16730-01i198605-198609
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16730-04i198605-198609
COLD SPEC,BLUE,DARK BLUE,TRIM8#
main58510-16730-05i198605-198609
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16770-01i198609-198805
BLACK,BLACK,TRIM2#
main58510-16770-04i198609-198805
BLUE,BLUE,TRIM8#
main58510-16770-05i198609-198805
BEIGE,DARK BEIGE,TRIM4#
main58510-16780-01i198609-198805
BLACK,BLACK,TRIM2#
main58510-16780-04i198609-198805
BLUE,BLUE,TRIM8#
main58510-16780-05i198609-198805
BEIGE,DARK BEIGE,TRIM4#
main58510-16790-01i198609-198805
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16790-04i198609-198805
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16790-05i198609-198805
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16800-01i198609-198805
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16800-04i198609-198805
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16800-05i198609-198805
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16810-01i198609-198805
BLACK,BLACK,TRIM2#
main58510-16810-04i198609-198805
BLUE,BLUE,TRIM8#
main58510-16810-05i198609-198805
BEIGE,DARK BEIGE,TRIM4#
main58510-16820-01i198609-198805
BLACK,BLACK,TRIM2#
main58510-16820-04i198609-198805
BLUE,BLUE,TRIM8#
main58510-16820-05i198609-198805
BEIGE,DARK BEIGE,TRIM4#
main58510-16830-01i198609-198805
BLACK,BLACK,TRIM2#
main58510-16830-04i198609-198805
BLUE,BLUE,TRIM8#
main58510-16830-05i198609-198805
BEIGE,DARK BEIGE,TRIM4#
main58510-16840-01i198609-198805
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16840-04i198609-198805
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16840-05i198609-198805
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16850-01i198609-198805
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16850-04i198609-198805
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16850-05i198609-198805
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-16860-01i198609-198805
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-16860-04i198609-198805
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-16860-05i198609-198805
COLD SPEC,BEIGE,DARK BEIGE,TRIM4#
main58510-1G010-01i198702-198805
BLACK,BLACK,TRIM2#
main58510-1G010-04i198702-198805
BLUE,BLUE,TRIM8#
main58510-1G010-05i198702-198805
DARK BEIGE,DARK BEIGE,TRIM4#
main58510-1G020-01i198702-198805
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-1G020-04i198702-198805
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-1G020-05i198702-198805
COLD SPEC,DARK BEIGE,DARK BEIGE,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-11i198605-198805
TYPE A,BLACK,BLACK,TRIM2#
main90467-06016-30i198605-198805
TYPE A,BLUE,BLUE,TRIM8#
main90467-06016-45i198605-198805
TYPE A,BEIGE,DARK BEIGE,TRIM4#
main90467-06037-01i198605-198805
TYPE B,BLACK,BLACK,TRIM2#
main90467-06037-14i198605-198805
TYPE B,BLUE,BLUE,TRIM8#
main90467-06037-25i198605-198805
TYPE B,BEIGE,DARK BEIGE,TRIM4#
58556CARPET, REAR SEAT, FRONT
main58572-16020-01i198605-198805
BLACK,BLACK,TRIM2#
main58572-16020-04i198605-198805
BLUE,BLUE,TRIM8#
main58572-16020-05i198605-198805
BEIGE,BEIGE,TRIM4#
58564CARPET, REAR FLOOR
main58571-16120-01i198605-198805
BLACK,BLACK,TRIM2#
main58571-16120-04i198605-198805
BLUE,BLUE,TRIM8#
main58571-16120-05i198605-198805
BEIGE,DARK BEIGE,TRIM4#
main58571-16130-01i198605-198805
BLACK,BLACK,TRIM2#
main58571-16130-04i198605-198805
BLUE,BLUE,TRIM8#
main58571-16130-05i198605-198805
BEIGE,DARK BEIGE,TRIM4#
main58571-16140-01i198605-198805
BLACK,BLACK,TRIM2#
main58571-16140-04i198605-198805
BLUE,BLUE,TRIM8#
main58571-16140-05i198605-198805
BEIGE,DARK BEIGE,TRIM4#
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-06037-01×14i198605-198805
TYPE A,BLACK,BLACK,TRIM2#
main90467-06037-14×14i198605-198805
TYPE A,BLUE,BLUE,TRIM8#
main90467-06037-25×14i198605-198805
TYPE A,BEIGE,DARK BEIGE,TRIM4#
main90467-11037-01×6i198605-198805
TYPE B,BLACK,BLACK,TRIM2#
main90467-11037-04×6i198605-198805
TYPE B,BLUE,BLUE,TRIM8#
main90467-11037-05×6i198605-198805
TYPE B,BEIGE,DARK BEIGE,TRIM4#
main90467-13037-01×6i198605-198805
TYPE C,BLACK,BLACK,TRIM2#
main90467-13037-04×6i198605-198805
TYPE C,BLUE,BLUE,TRIM8#
main90467-13037-05×6i198605-198805
TYPE C,BEIGE,DARK BEIGE,TRIM4#

5 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA 2

This section contains 5 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA 2. Key components include: CARPET ASSY, FRONT FLOOR, CLIP(FOR FRONT FLOOR CARPET), CARPET, REAR SEAT, FRONT, CARPET, REAR FLOOR, CLIP(FOR REAR FLOOR CARPET).
