Toyota COROLLA 2 — MANIFOLD

0001 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-11230i4EFE..EL41199009-199101

sub17101-11231

sub17341-11230

sub90910-05211

sub90999-92002

main17101-11231i4EFE..EL41199101-199409

main17101-11260i5EFE..EL43,45199009-199101

sub17101-11261

sub17341-11230

sub90910-05211

sub90999-92002

main17101-11261i5EFE..EL43,45199101-199409

main17101-11290i5EFHE..EL43199009-199409

main17101-55030i1NT..NL40..4FC199009-199409

main17101-55040i1NT..NL40..5F199009-199409

17111APLUG, NO.1

main90345-51006i5EFE..EL43,45199212-199409

main90345-51008i5EFE..EL43,45199009-199212

17118STAY, MANIFOLD

main17118-11110i4EFE..EL41199009-199409

main17118-11180i5EFE..EL43199009-199409

main17118-11190i5EFHE..EL43199009-199409

main17118-11200i5EFE..EL45199009-199409

main17118-55010i1NT..NL40199009-199409

17125STAY, SURGE TANK, NO.1

main17125-11030i4EFE,5EFE..EL4#199009-199409

main17125-11040i5EFHE..EL43199009-199409

17141MANIFOLD, EXHAUST

main17141-11170i4EFE,5EFE..EL4#199009-199409

main17141-11201i5EFHE..EL43199009-199409

main17141-11270i4EFE,5EFE..EL41,43199208-199409

main17141-55030i1NT..NL40..4FC199009-199409

main17141-55040i1NT..NL40..5F199009-199409

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i4EFE,5EFE..EL4#199009-199409

main90116-10087i1NT..NL40199009-199409

main90116-10179i4EFE,5EFE..EL4#199009-199409

main90126-10003i1NT..NL40199208-199409

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main92112-61040i1NT..NL40199009-199208

EXHAUST

main92112-61040i1NT..NL40199208-199409

EXHAUST MANIFOLD

main92122-60822i1NT..NL40199208-199409

INTAKE MANIFOLD

main92122-60822i1NT..NL40199009-199208

INTAKE

main92122-61025i4EFE,5EF#..EL4#199009-199409

EXHAUST MANIFOLD

main92132-60825i4EFE,5EF#..EL4#199009-199409

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-11210i4EFE,5EFE..EL41,43199208-199409

sub17167-11211

main17167-11220i4EFE,5EFE..EL4#199009-199409

main17167-11240i5EFHE..EL43199009-199409

sub17167-11241

main17167-55010i1NT..NL40199009-199409

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-11040i4EFE..EL41199009-199409

main17173-11050i5EF#..EL43,45199009-199409

main17173-55010i1NT..NL40199009-199409

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-11020i4EFE,5EF#..EL4#199009-199409

sub17177-11021

main17177-55012i1NT..NL40199009-199409

25508CONVERTER SUB-ASSY, MANIFOLD

main25508-11041i4EFE..EL41199009-199208

main25508-11110i5EFE..EL43199009-199208

main25508-11120i5EFE..EL45..5F199009-199208

main25508-11140i5EFE..EL45..4FC199009-199208

main25508-11160i5EFE..EL45..5F199208-199409

main25508-11170i5EFE..EL45..4FC199208-199409

25576GASKET, MANIFOLD CONVERTER

main25576-11020i4EFE,5EFE..EL4#199009-199110

sub25576-15020

main25576-15020i4EFE,5EFE..EL4#199110-199409

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-11010i5EFE..EL45..5F199009-199409

main25586-11080i5EFE..EL45..4FC199009-199409

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-11010i5EFE..EL45..5F;4EFE,5EFE..EL41,43199009-199409

main25587-11060i5EFE..EL45..4FC199009-199409

25591BRACKET, MANIFOLD SUPPORT

main25591-11050i5EFHE..EL43199009-199409

main25591-11060i5EFE..EL45..4FC199009-199409

8889418010

main88894-18010

9011608347

main90116-08347

9017908040

main90179-08040

9017908054

main90179-08054

9017908153

main90179-08153

9017910096

main90179-10096

9033909003

main90339-09003

9034116011

main90341-16011

9040504002

main90405-04002

9040609001

main90406-09001

9043016004

main90430-16004

9046714003

main90467-14003

9151160814

main91511-60814

9161160825

main91611-60825

9162160814

main91621-60814

91621B0612

main91621-B0612

91621J0612

main91621-J0612

9164380820

main91643-80820

92122B0814

main92122-B0814

92122B0818

main92122-B0818

9641144000

main96411-44000

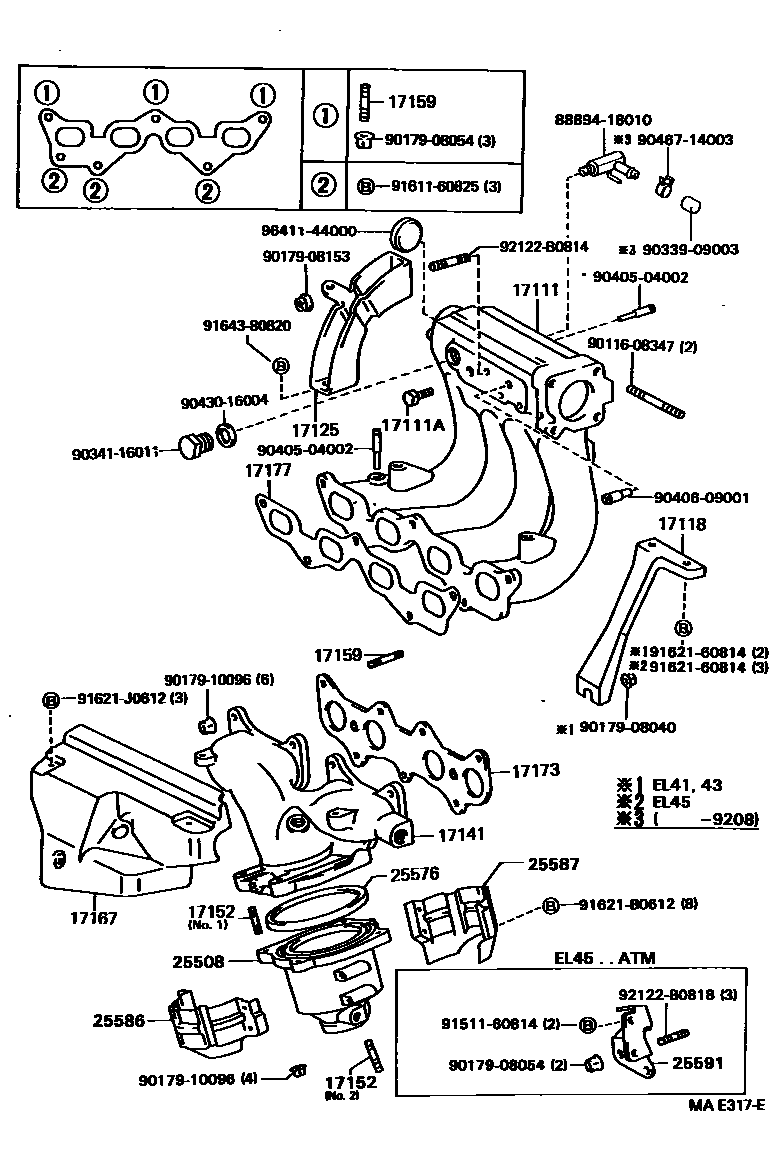

36 parts on this diagram · 5 diagrams in section
