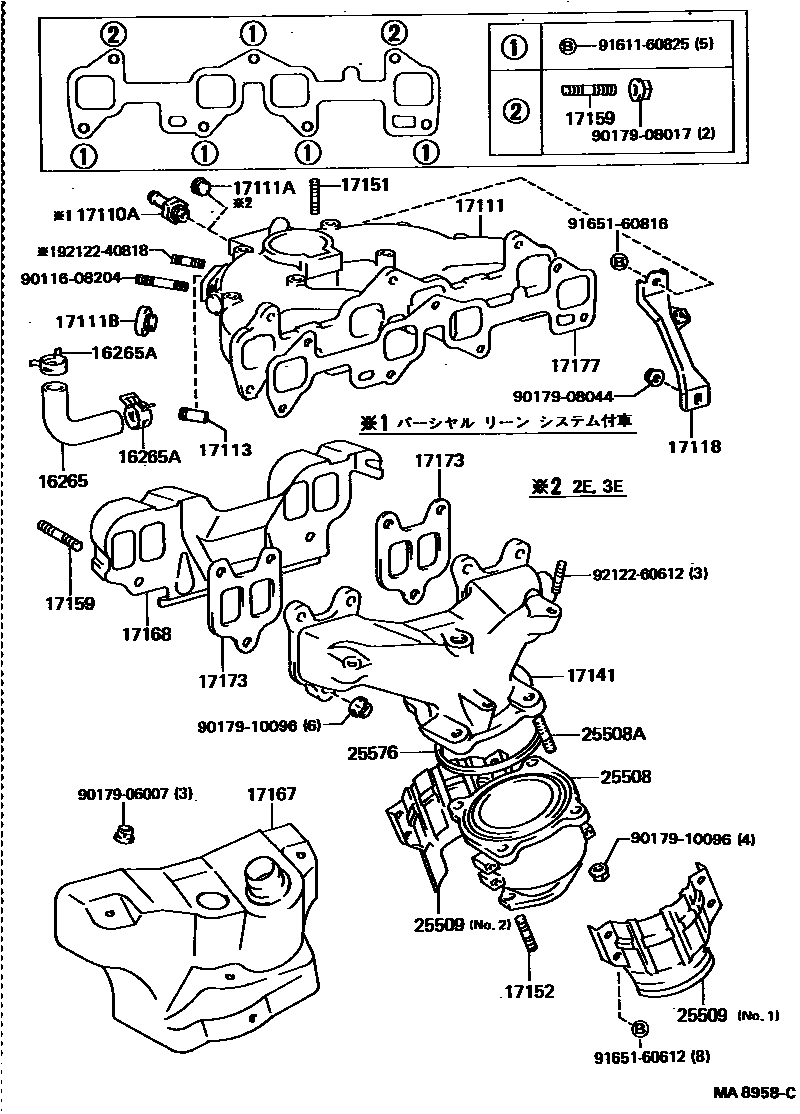

Toyota COROLLA 2 — MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
17110AUNION, VACUUM HOSE
*52
17111MANIFOLD, INTAKE
17111BPLUG, NO.2
17113PIPE, INTAKE
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD,NO.1
EXHAUST MANIFOLD,NO.2
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD,NO.1
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*52; COLD SPEC
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
25576GASKET, MANIFOLD CONVERTER
9011608204
main90116-08204
9017906007
main90179-06007
9017908017
main90179-08017
9017908044
main90179-08044
9017910096
main90179-10096
9161160825
main91611-60825
9165160612
main91651-60612
9165160816
main91651-60816
9212240818
main92122-40818
9212260612
main92122-60612
30 parts on this diagram · 5 diagrams in section
MANIFOLD for Toyota COROLLA 2
This section contains 85 genuine Toyota parts for the MANIFOLD system of the Toyota COROLLA 2. Key components include: GASKET KIT, TURBOCHARGER, SEAL KIT, TURBOCHARGER, PIPE SUB-ASSY, TURBO OIL INLET, BOLT, UNION(FOR TURBO OIL INLET PIPE), GASKET(FOR TURBO OIL INLET PIPE).
