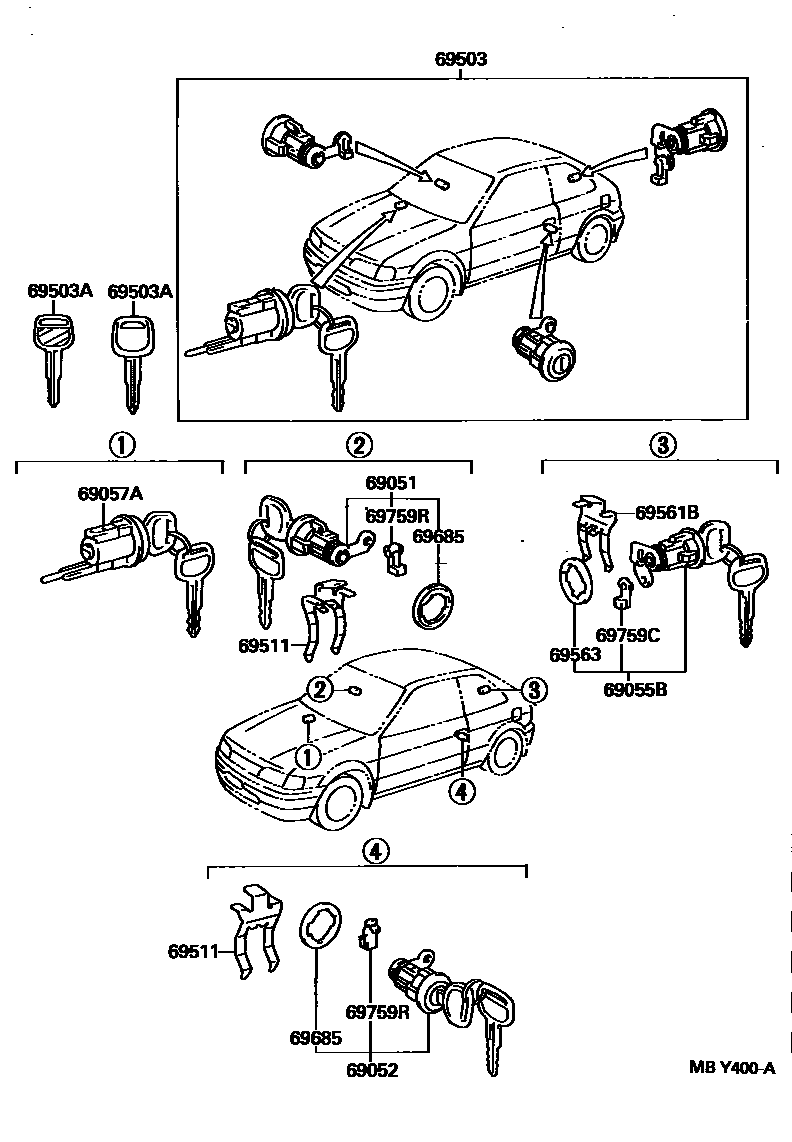

Toyota COROLLA 2 — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69511RETAINER, FRONT DOOR LOCK CYLINDER
69561BRETAINER, BACK DOOR LOCK CYLINDER
69563PAD, BACK DOOR LOCK CYLINDER
69685PAD, LOCK CYLINDER
69759CSNAP, BACK DOOR LOCK CYLINDER
12 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota COROLLA 2
This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA 2. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
