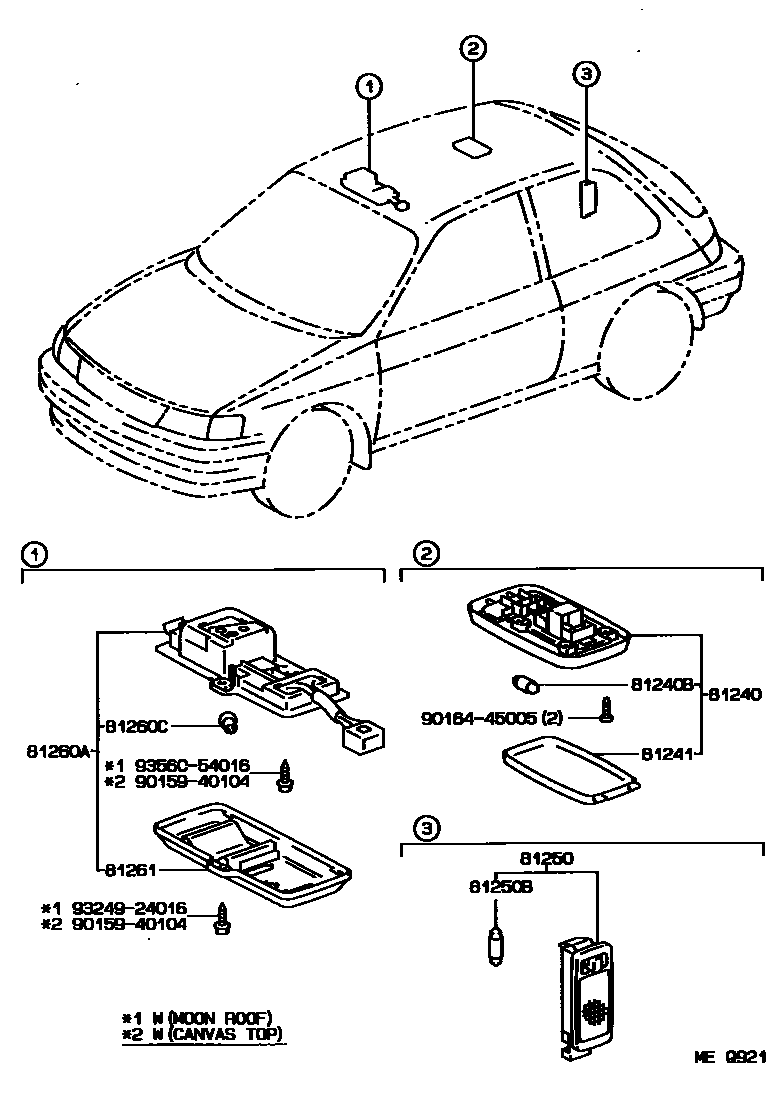

Toyota COROLLA 2 — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12020-03iEL4#,NL40199009-199208

LIGHT GRAY,TRIM2#

sub81240-12020

main81240-12020-17iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub81240-12020

main81240-12020-24iEL4#,NL40199009-199208

GRAISH BLUE,TRIM8#

sub81240-12020

main81240-12020-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

LI.SP,TRIM6#

sub81240-12020

main81240-12020-S3iEL4#,NL40199208-199409

LIGHT GRAY,TRIM2#

sub81240-12020

main81240-12020-W7iEL4#,NL40199208-199409

LI.BLUE,TRIM8#

sub81240-12020

81240BBULB, ROOM LAMP, NO.1

main99132-12100iEL4#,NL40199009-199409

81241LENS, ROOM LAMP, NO.1

main81241-12020iEL4#,NL40199009-199409

81250LAMP ASSY, ROOM, NO.2

main81250-16040iEL4#..LIM,SR,ZS199009-199409

81250BBULB, ROOM LAMP, NO.2

main90981-11016iEL4#..LIM,SR,ZS199009-199409

81260ALAMP ASSY, MAP

main81260-10030-03iEL4#..LIM,SR,WIN,ZS199009-199208

GRAY,TRIM2#

sub81260-10030

main81260-10030-04iEL4#..LIM,SR,WIN,ZS199009-199208

GRAISH BLUE,TRIM8#

sub81260-10030

main81260-10030-07iEL4#..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub81260-10030

main81260-10030-G0iEL4#..LIM,SR,WIN,ZS199208-199409

LI.SPRUCE,TRIM6#

sub81260-10030

main81260-10030-J0iEL4#..LIM,SR,WIN,ZS199208-199409

LI.BLUE,TRIM8#

sub81260-10030

main81260-10030-S3iEL4#..LIM,SR,WIN,ZS199208-199409

LI.GRAY,TRIM2#

sub81260-10030

81260CBULB(FOR MAP LAMP)

main90981-12014iEL4#..LIM,SR,WIN,ZS199009-199409

81261LENS AND COVER, MAP LAMP

main81261-10030-03iEL4#..LIM,SR,WIN,ZS199009-199409

GRAY,TRIM2#

sub81261-10030

main81261-10030-04iEL4#..LIM,SR,WIN,ZS199009-199409

GRAISH BLUE,TRIM8#

sub81261-10030

main81261-10030-07iEL4#..LIM,SR,WIN,ZS199009-199409

SPRUCE,TRIM6#

sub81261-10030

9015940104

main90159-40104

9016445005

main90164-45005

9324924016

main93249-24016

9356054016

main93560-54016

12 parts on this diagram · 1 diagram in section
