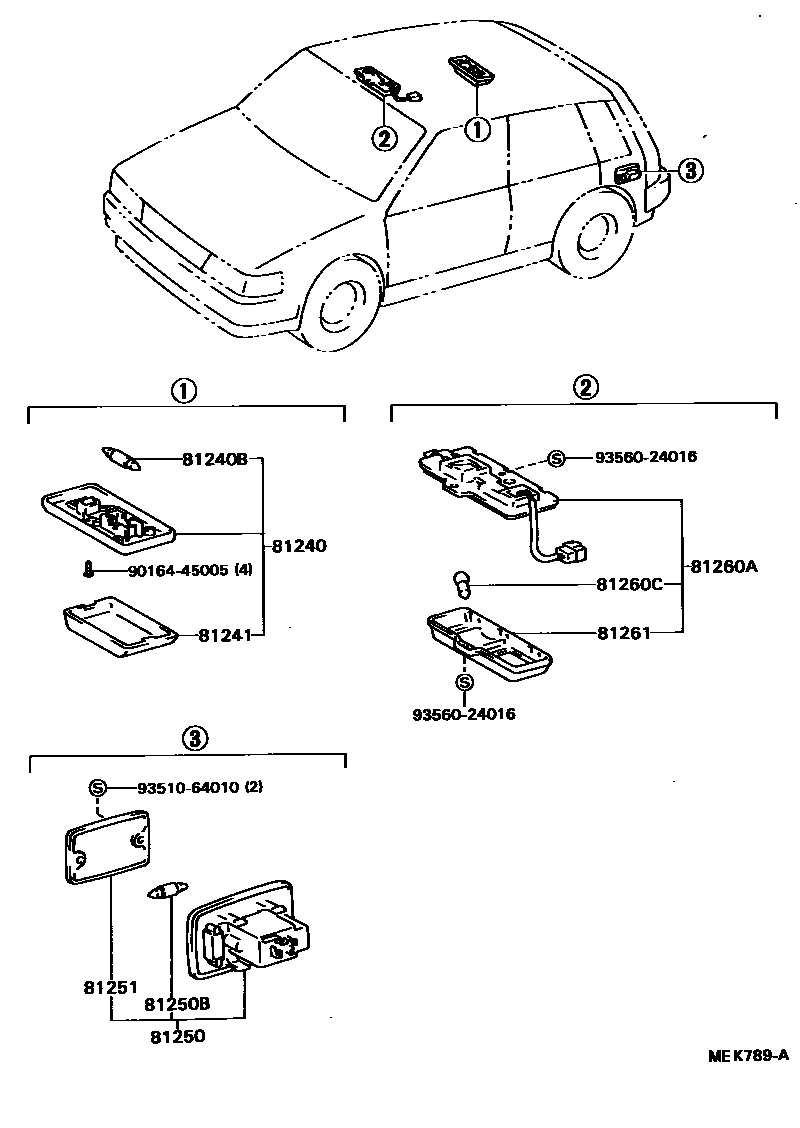

Toyota COROLLA 2 — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM2#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
NEW BLACK,TRIM2#
BLUE,TRIM8#
81250BBULB, ROOM LAMP, NO.2
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
9016445005
main90164-45005
9351064010
main93510-64010
9356024016
main93560-24016
12 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA 2
This section contains 12 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA 2. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
