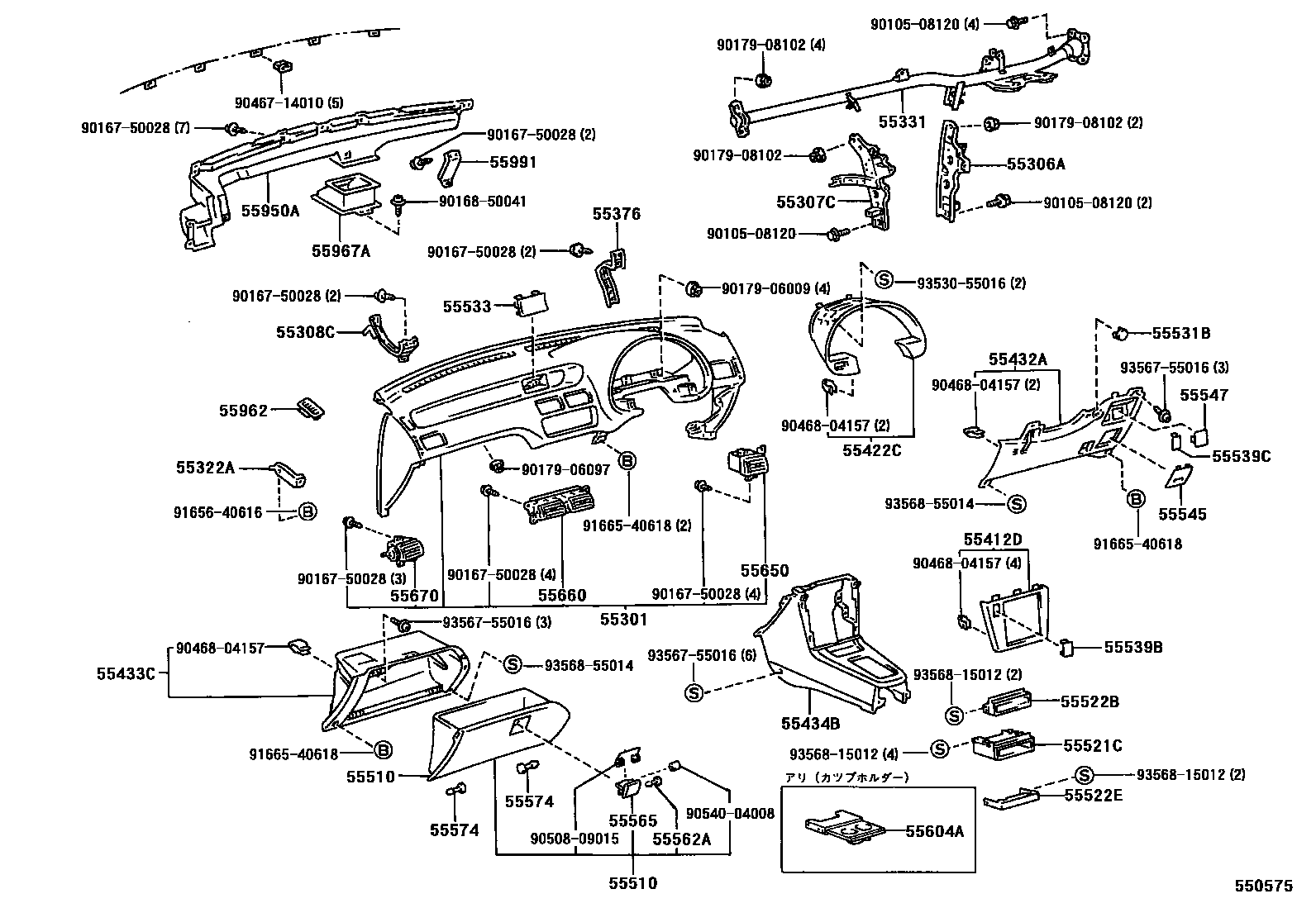

Toyota COROLLA 2 — INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16040-01iEL4#,NL40..DSL,EFI199009-199208

BLACK,TRIM2#

sub55301-16040

main55301-16040-04iEL4#,NL40..DSL,EFI199009-199208

GRAYISH BLUE,TRIM8#

sub55301-16040

main55301-16040-07iEL4#,NL40..LIM,SR,WIN199009-199208

SPRUCE,TRIM6#

sub55301-16040

main55301-16040-22iEL4#,NL40..DSL,EFI199208-199409

BLACK,TRIM2#

sub55301-16040

main55301-16040-G0iEL4#,NL40..LIM,SR,WIN199208-199409

SPRUCE,TRIM6#

sub55301-16040

main55301-16040-W4iEL4#,NL40..DSL,EFI199208-199409

EISEN BLUE,TRIM8#

sub55301-16040

main55301-16050-01iEL43..EFIS199009-199208

BLACK,TRIM2#

sub55301-16050

sub55301-16040

main55301-16050-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

sub55301-16050

sub55301-16040

main55301-16050-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

sub55301-16050

sub55301-16040

main55301-16050-22iEL43..EFIS199208-199308

BLACK,TRIM2#

sub55301-16050

sub55301-16040

main55301-16050-G0iEL43..EFIS199208-199308

SPRUCE,TRIM6#

sub55301-16050

sub55301-16040

main55301-16050-W4iEL43..EFIS199208-199308

EISEN BLUE,TRIM8#

sub55301-16050

sub55301-16040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16080iEL4#,NL40199009-199409

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16080iEL4#,NL40199009-199409

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16040iEL4#,NL40199009-199409

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-16040iEL4#,NL40199009-199409

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16070iEL4#,NL40199009-199409

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-16040iEL4#,NL40199009-199409

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-16060-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55412-16060

main55412-16060-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55412-16060

main55412-16060-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55412-16060

main55412-16060-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55412-16060

main55412-16060-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55412-16060

main55412-16060-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55412-16060

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-16020iEL4#,NL40199009-199409

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-16120-01iEL41,45,NL40..TX,WIN199009-199208

BLACK,TRIM2#

sub55432-16120

main55432-16120-04iEL41,45,NL40..TX,WIN199009-199208

GRAYISH BLUE,TRIM8#

sub55432-16120

main55432-16120-07iEL41,45,NL40..WIN199009-199208

SPRUCE,TRIM6#

sub55432-16120

main55432-16120-22iEL41,45,NL40..TX,WIN199208-199409

BLACK,TRIM2#

sub55432-16120

main55432-16120-G0iEL41,45,NL40..WIN199208-199409

SPRUCE,TRIM6#

sub55432-16120

main55432-16120-W4iEL41,45,NL40..TX,WIN199208-199409

EISEN BLUE,TRIM8#

sub55432-16120

main55432-16130-01iEL4#..LIM,SR,ZS199009-199208

BLACK,TRIM2#

sub55432-16130

main55432-16130-04iEL4#..LIM,SR,ZS199009-199208

GRAYISH BLUE,TRIM8#

sub55432-16130

main55432-16130-07iEL4#..LIM,SR,ZS199009-199208

SPRUCE,TRIM6#

sub55432-16130

main55432-16130-22iEL4#..LIM,SR,ZS199208-199409

BLACK,TRIM2#

sub55432-16130

main55432-16130-G0iEL4#..LIM,SR,ZS199208-199409

SPRUCE,TRIM6#

sub55432-16130

main55432-16130-W4iEL4#..LIM,SR,ZS199208-199409

EISEN BLUE,TRIM8#

sub55432-16130

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-16010-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55433-16010

main55433-16010-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55433-16010

main55433-16010-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55433-16010

main55433-16010-C0iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55433-16010

main55433-16010-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55433-16010

main55433-16010-J0iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55433-16010

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-16010-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55434-16010

main55434-16010-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55434-16010

main55434-16010-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55434-16010

main55434-16010-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55434-16010

main55434-16010-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55434-16010

main55434-16010-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55434-16010

main55434-16020-01iEL4#,NL40199009-199208

sub55434-16010

main55434-16020-04iEL4#,NL40199009-199208

sub55434-16010

main55434-16020-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

sub55434-16010

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16090-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55550-16090

main55550-16090-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55550-16090

main55550-16090-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55550-16090

main55550-16090-C0iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55550-16090

main55550-16090-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55550-16090

main55550-16090-J0iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55550-16090

55521CCOVER, STEREO OPENING

main55521-16030iEL4#,NL40199009-199409

55522BCOVER, RADIO TUNER OPENING

main55522-32010iEL4#,NL40199009-199409

sub55522-20070

55522ECOVER, CUP HOLDER OPENING

main55522-16030iEL4#,NL40199009-199409

55531BCOVER, CHOKE KNOB HOLE

main55617-10010-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55617-10010

main55617-10010-11iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55617-10010

main55617-10010-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55617-10010

main55617-10010-34iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55617-10010

main55617-10010-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55617-10010

main55617-10010-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55617-10010

55533COVER, AUTO CLOCK HOLE

main55533-16020-01iEL41..TX199009-199208

BLACK,TRIM2#

sub55533-16020

main55533-16020-04iEL41..TX199009-199208

GRAYISH BLUE,TRIM8#

sub55533-16020

main55533-16020-22iEL41..TX199208-199409

BLACK,TRIM2#

sub55533-16020

main55533-16020-W4iEL41..TX199208-199409

EISEN BLUE,TRIM8#

sub55533-16020

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-16040-01iEL41..TX199009-199208

BLACK,TRIM2#

sub55539-16040

main55539-16040-04iEL41..TX199009-199208

GRAYISH BLUE,TRIM8#

sub55539-16040

main55539-16040-22iEL41..TX199208-199409

BLACK,TRIM2#

sub55539-16040

main55539-16040-W4iEL41..TX199208-199409

EISEN BLUE,TRIM8#

sub55539-16040

55539CCOVER, SPARE SWITCH HOLE

main55539-16040-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55539-16040

main55539-16040-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55539-16040

main55539-16040-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55539-16040

main55539-16040-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55539-16040

main55539-16040-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55539-16040

main55539-16040-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55539-16040

55545COVER, FUSE BOX OPENING

main55545-16120-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55545-16120

main55545-16120-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55545-16120

main55545-16120-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55545-16120

main55545-16120-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55545-16120

main55545-16120-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55545-16120

main55545-16120-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55545-16120

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-20030-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55547-20030

main55547-20030-11iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55547-20030

main55547-20030-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55547-20030

main55547-20030-24iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55547-20030

main55547-20030-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55547-20030

main55547-20030-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55547-20030

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-10010iEL4#,NL40199009-199409

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-16010-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55565-16010

sub55565-10010

main55565-16010-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55565-16010

sub55565-10010

main55565-16010-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55565-16010

sub55565-10010

main55565-16010-C0iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55565-16010

sub55565-10010

main55565-16010-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55565-16010

sub55565-10010

main55565-16010-J0iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55565-16010

sub55565-10010

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iEL4#,NL40199009-199409

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-16030iEL4#,NL40199009-199208

sub55604-16031

main55604-16031iEL4#,NL40199208-199305

sub55604-16032

main55604-16032iEL4#,NL40199305-199409

sub55604-16033

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16060-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55650-16060

main55650-16060-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55650-16060

main55650-16060-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55650-16060

main55650-16060-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55650-16060

main55650-16060-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55650-16060

main55650-16060-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55650-16060

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16040-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55660-16040

main55660-16040-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55660-16040

main55660-16040-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55660-16040

main55660-16040-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55660-16040

main55660-16040-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55660-16040

main55660-16040-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55660-16040

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16040-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55670-16040

main55670-16040-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55670-16040

main55670-16040-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55670-16040

main55670-16040-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55670-16040

main55670-16040-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55670-16040

main55670-16040-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55670-16040

55950ANOZZLE ASSY, DEFROSTER

main55950-16040iEL4#,NL40199009-199409

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-16020-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub55962-16020

main55962-16020-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub55962-16020

main55962-16020-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub55962-16020

main55962-16020-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub55962-16020

main55962-16020-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub55962-16020

main55962-16020-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub55962-16020

55967ANOZZLE, DEFROSTER, LOWER

main55967-16030iEL4#,NL40199009-199409

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-16010iEL4#,NL40199009-199409

9010508120

main90105-08120

9016750028

main90167-50028

9016850041

main90168-50041

9017906009

main90179-06009

9017906097

main90179-06097

9017908102

main90179-08102

9046714010

main90467-14010

9046804157

main90468-04157

9050809015

main90508-09015

9054004008

main90540-04008

9165640616

main91656-40616

9166540618

main91665-40618

9353055016

main93530-55016

9356755016

main93567-55016

9356815012

main93568-15012

9356855014

main93568-55014

49 parts on this diagram · 1 diagram in section
