Toyota COROLLA 2 — HEATING & AIR CONDITIONING - WATER PIPING

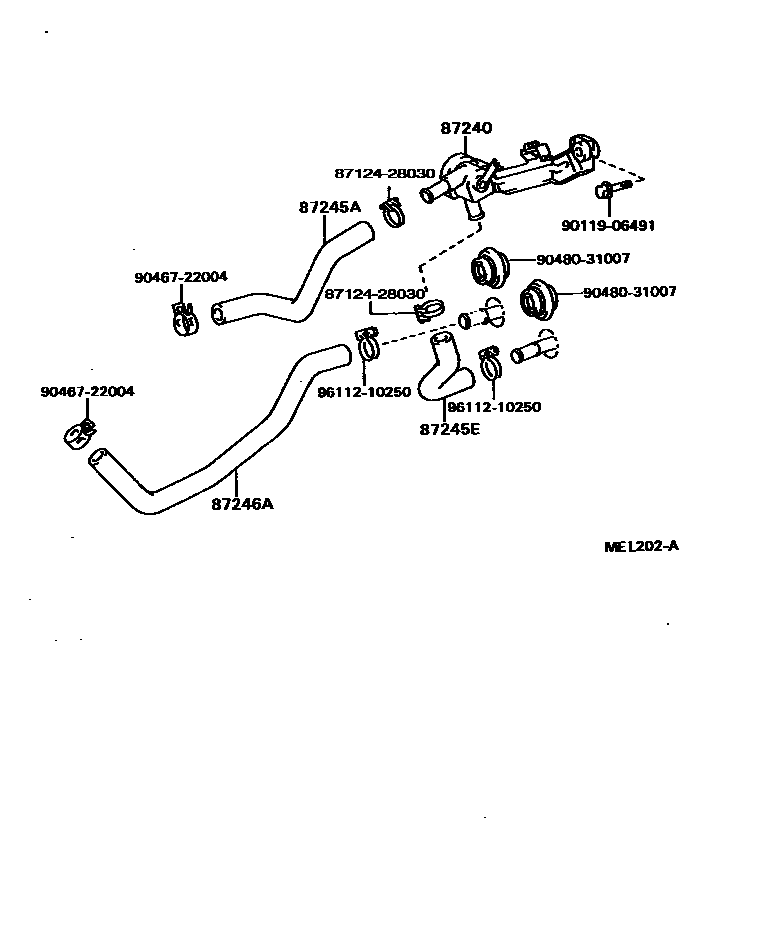

Parts diagram

87240VALVE ASSY, HEATER WATER

main87240-16050i198805-199009

87245AHOSE, HEATER WATER, INLET A

main87245-16200i198805-199009

main87245-16210i198805-199009

87245EHOSE, HEATER WATER, INLET E

main87245-16230i198805-199009

87246AHOSE, HEATER WATER, OUTLET A

main87245-16250i198805-199009

main87245-16260i198805-199009

8712428030CLAMP, HEATER

main87124-28030

9011906491

main90119-06491

9046722004

main90467-22004

9048031007

main90480-31007

9611210250

main96112-10250

9 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota COROLLA 2

This section contains 9 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota COROLLA 2. Key components include: VALVE ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, INLET E, HOSE, HEATER WATER, OUTLET A, CLAMP, HEATER.
