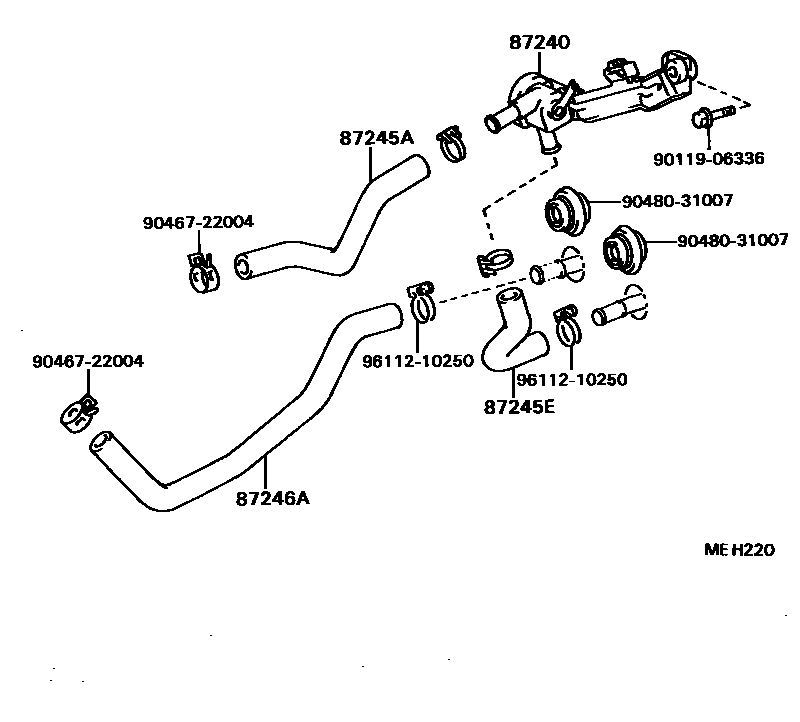

Toyota COROLLA 2 — HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-16050i198605-198805

87245AHOSE, HEATER WATER, INLET A

main87245-16200i198605-198805

main87245-16210i198605-198805

87245EHOSE, HEATER WATER, INLET E

main87245-16230i198605-198805

87246AHOSE, HEATER WATER, OUTLET A

main87245-16250i198605-198805

main87245-16260i198605-198805

9011906336

main90119-06336

9046722004

main90467-22004

9048031007

main90480-31007

9611210250

main96112-10250

8 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota COROLLA 2

This section contains 8 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota COROLLA 2. Key components include: VALVE ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, INLET E, HOSE, HEATER WATER, OUTLET A.
