Toyota COROLLA 2 — HEATING & AIR CONDITIONING - COMPRESSOR

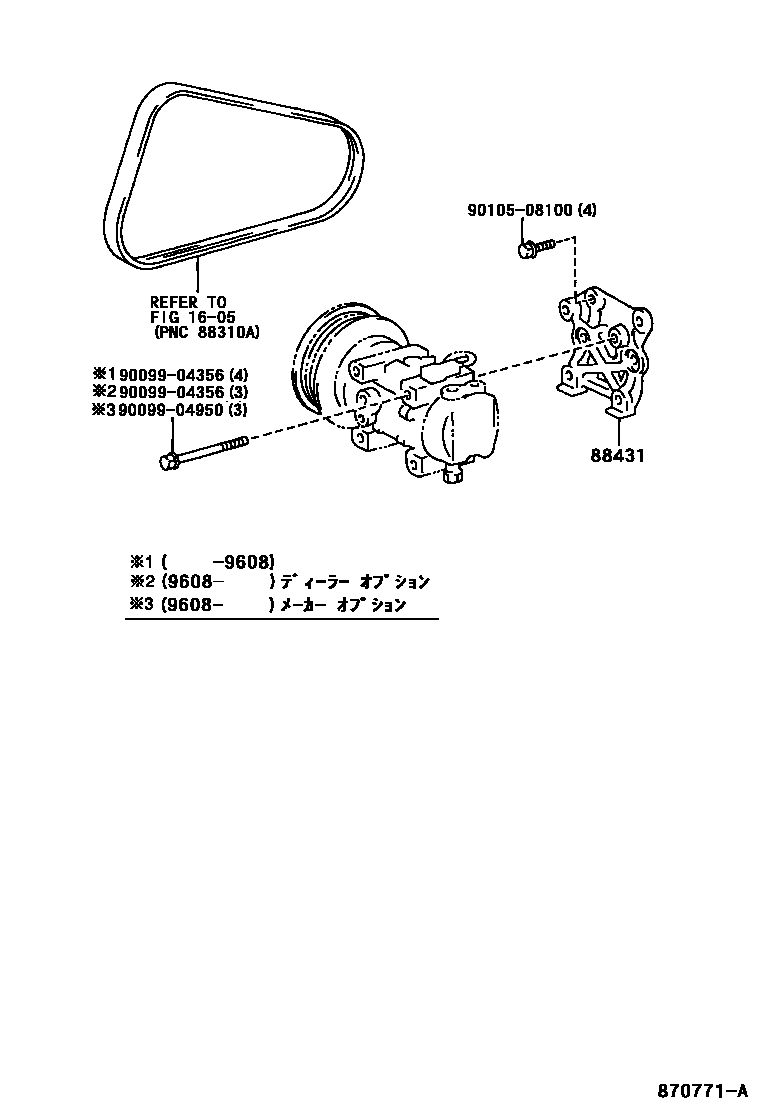

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-10080i199712

main88431-16060i199409-199608

main88431-16070i199409-199712

main88431-16120i199608-199712

main88431-16140i199608-199712

9009904356

main90099-04356

9009904950

main90099-04950

9010508100

main90105-08100

5 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA 2

This section contains 24 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA 2. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
