Toyota COROLLA 2 — HEATING & AIR CONDITIONING - COMPRESSOR

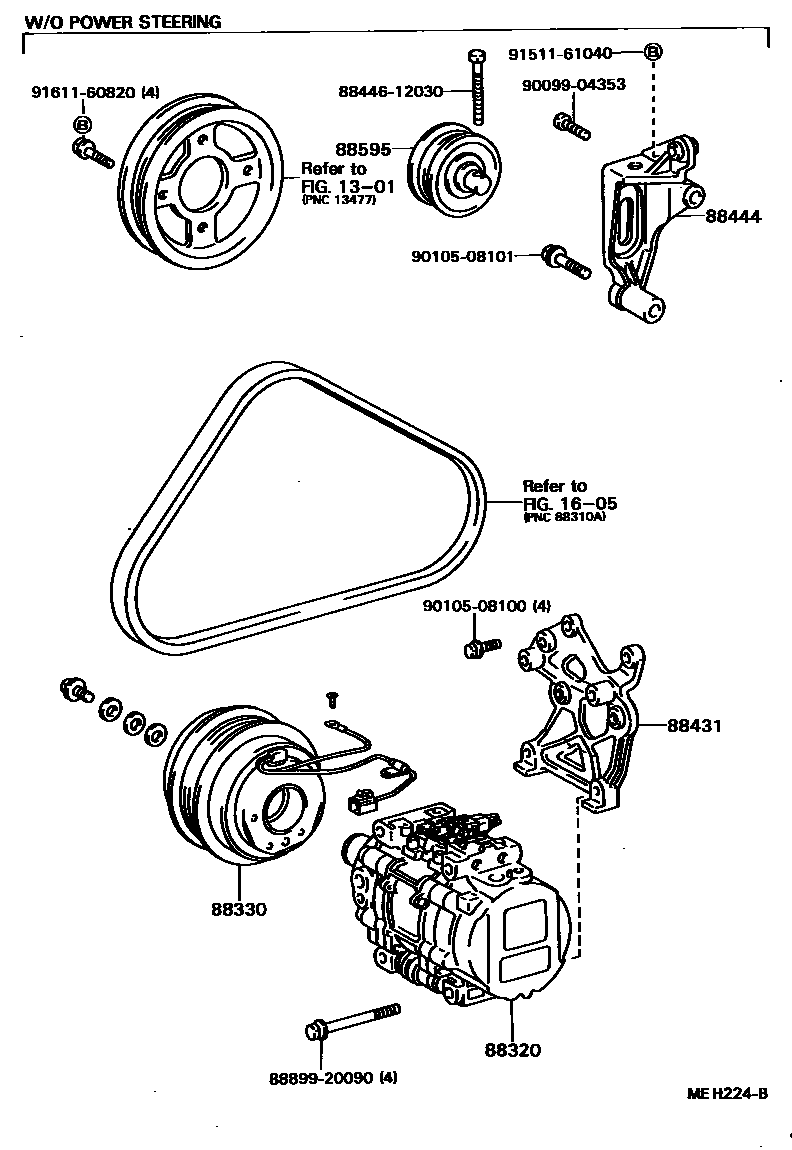

Parts diagram

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1605V-BELT

→ Go to FIG 16-05

88320COMPRESSOR ASSY, COOLER

main88320-16050i198605-198612

W/O PS & COOLER SW.=1-BUTTON

main88320-16051i198612-198805

W/O PS & COOLER SW.=1-BUTTON

main88320-16060i198605-198612

W/PS & COOLER SW.=1-BUTTON

main88320-16061i198612-198805

W/PS & COOLER SW.=1-BUTTON

main88320-16070i198605-198612

W/O PS

main88320-16071i198702-198805

W/O PS

main88320-16080i198605-198612

W/PS & COOLER SW.=2-BUTTON

main88320-16081i198612-198805

W/PS & COOLER SW.=2-BUTTON

88330CLUTCH ASSY, MAGNET

main88410-16020i198605-198612

main88410-16021i198702-198703

main88410-16030i198605-198612

main88410-16031i198612-198805

main88410-16040i198702-198805

main88410-16050i198703-198805

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16040i198605-198805

main88431-16050i198605-198805

88444BRACKET, IDLE PULLEY

main88444-10031i198605-198805

main88444-16030i198605-198805

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12170i198605-198805

main88440-16040i198605-198805

8844612030BOLT, IDLE PULLEY

main88446-12030

8889920090COVER, EVAPORATOR

main88899-20090

9009904353

main90099-04353

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

9161160820

main91611-60820

14 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA 2

This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA 2. Key components include: CRANKSHAFT & PISTON, V-BELT, COMPRESSOR ASSY, COOLER, CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1.
