Toyota COROLLA 2 — HEADLAMP

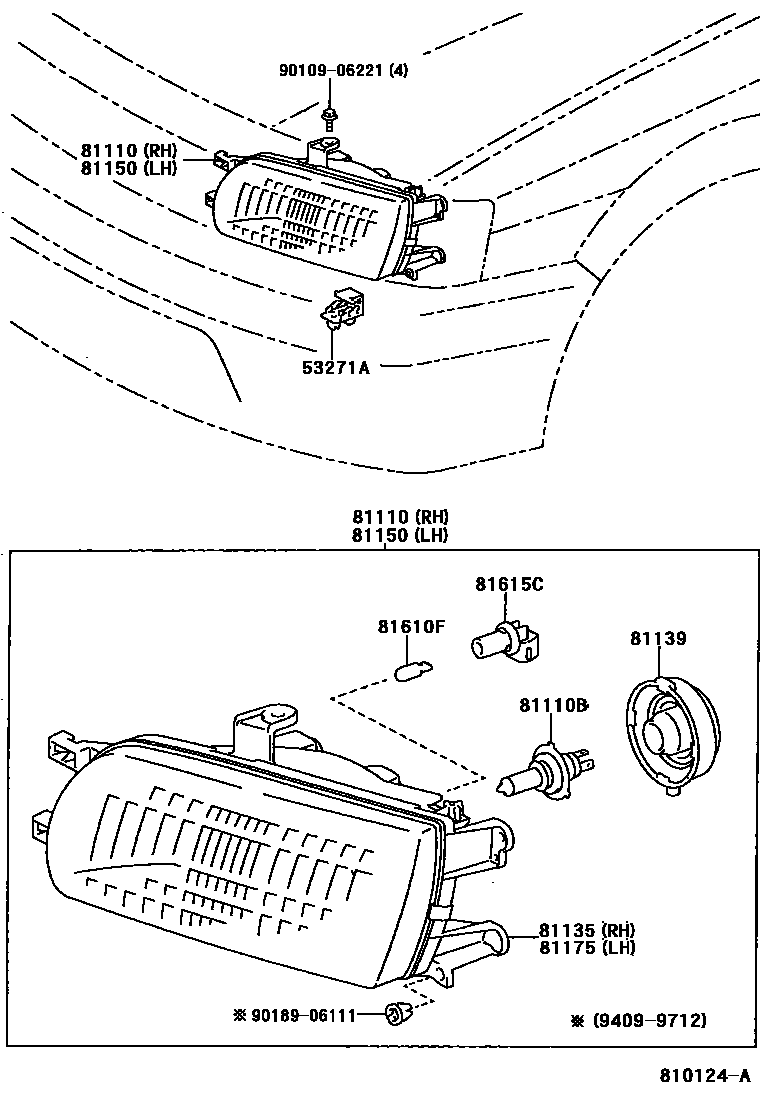

Parts diagram

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i199409

81110HEADLAMP ASSY, RH

main81110-16580i199409-199712

main81110-16730i199712

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i199409-199712

main90981-22004×2i199712

81135UNIT ASSY, HEADLAMP, RH

main81130-16580i199409-199712

main81130-16730i199712

81139COVER, HEADLAMP SOCKET

main90075-65001×2i199409

81150HEADLAMP ASSY, LH

main81150-16580i199409-199712

main81150-16730i199712

81175UNIT ASSY, HEADLAMP, LH

main81170-16580i199409-199712

main81170-16730i199712

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199409

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60004×2i199712

main90075-99044×2i199409-199712

9010906221

main90109-06221

9018906111

main90189-06111

11 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota COROLLA 2

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA 2. Key components include: BRACKET, HEADLAMP MOUNTING, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
