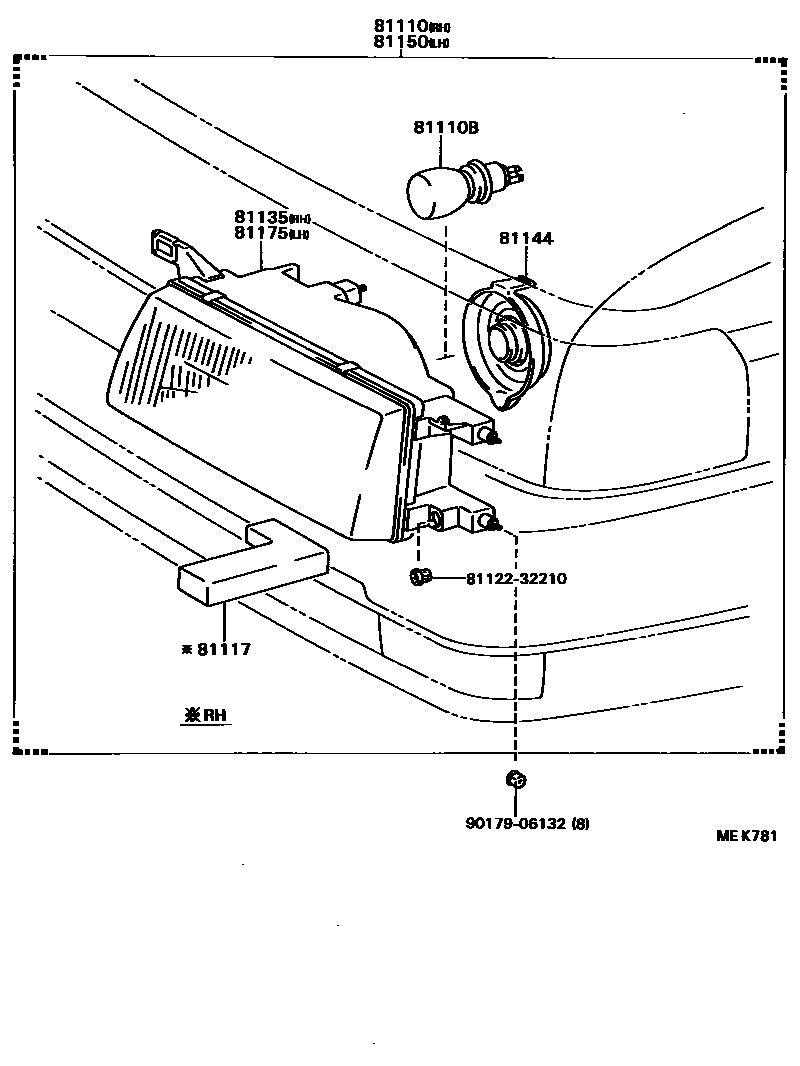

Toyota COROLLA 2 — HEADLAMP
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81117PACKING, HEADLAMP HOUSING
81135UNIT ASSY, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
8112232210HOLDER, HEADLAMP
main81122-32210
9017906132
main90179-06132
9 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota COROLLA 2
This section contains 22 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA 2. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH.
