Toyota COROLLA 2 — FRONT STEERING GEAR & LINK

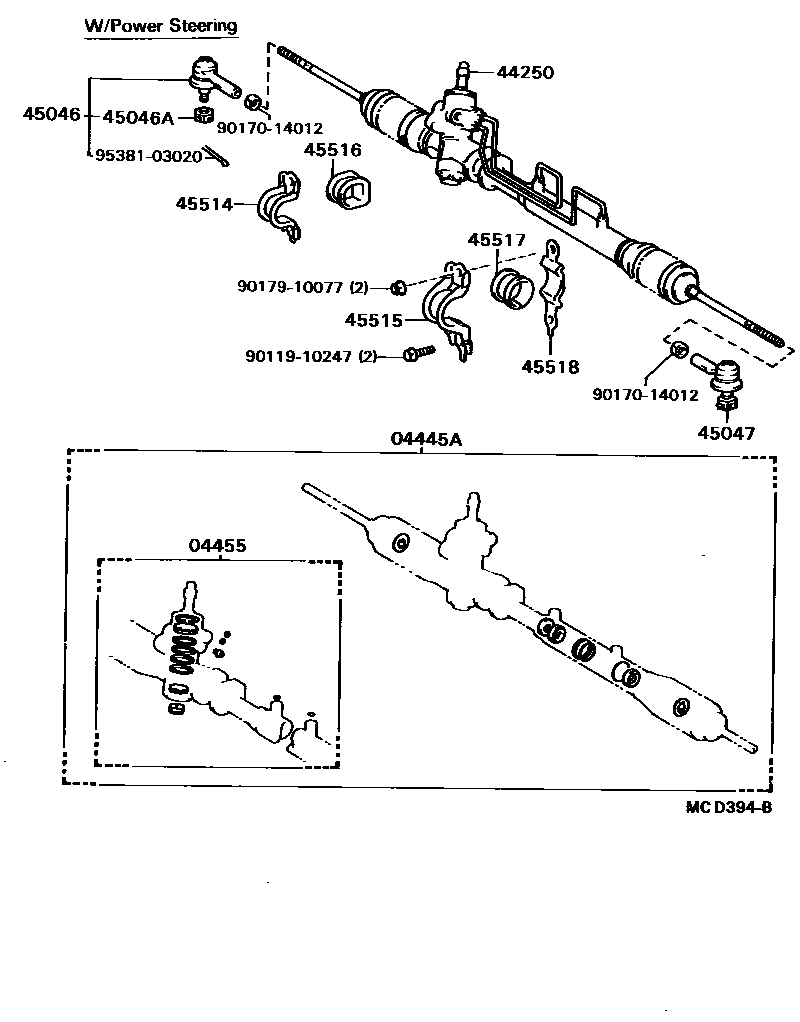

Parts diagram
04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
main04445-16030i198605-198608
main04445-16031i198608-198703
main04445-16032i198703-198805
main04445-16040i198609-198805
W/TEMS
04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
main04455-16020i198609-198805
W/TEMS
main04455-16030i198605-198805
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
main44250-16051i198605-198805
main44250-16071i198609-198805
W/TEMS
main44250-16081i198605-198805
main44250-16090i198609-198805
45046END SUB-ASSY, TIE ROD, RH
main45046-19175i198605-198805
45046ANUT, CASTLE(FOR TIE ROD END)
main90171-12028×2i198605-198805
45047END SUB-ASSY, TIE ROD, LH
main45046-19175i198605-198805
45514BRACKET, STEERING RACK HOUSING, NO.1
main45514-16030i198605-198805
main45514-16040i198605-198805
W/POWER STEERING
45515BRACKET, STEERING RACK HOUSING, NO.2
main45515-16040i198605-198805
main45515-16050i198605-198805
W/POWER STEERING
45516GROMMET, STEERING RACK HOUSING, NO.1
main45516-10040i198605-198805
main45516-16040i198605-198805
W/POWER STEERING
45517GROMMET, STEERING RACK HOUSING, NO.2
main45517-10040i198605-198805
main45517-16040i198605-198805
W/POWER STEERING
45518BRACKET, STEERING RACK HOUSING, NO.3
main45518-16020i198605-198805
main45518-16030i198605-198805
W/POWER STEERING
9011910247
main90119-10247
9017014012
main90170-14012
9017910077
main90179-10077
9538103028
main95381-03028

15 parts on this diagram · 5 diagrams in section

FRONT STEERING GEAR & LINK for Toyota COROLLA 2

This section contains 83 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA 2. Key components include: GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION), GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE, VALVE SUB-ASSY, POWER STEERING CONTROL, SPACER(FOR POWER STEERING CONTROL VALVE), RING(FOR POWER STEERING CONTROL VALVE).
