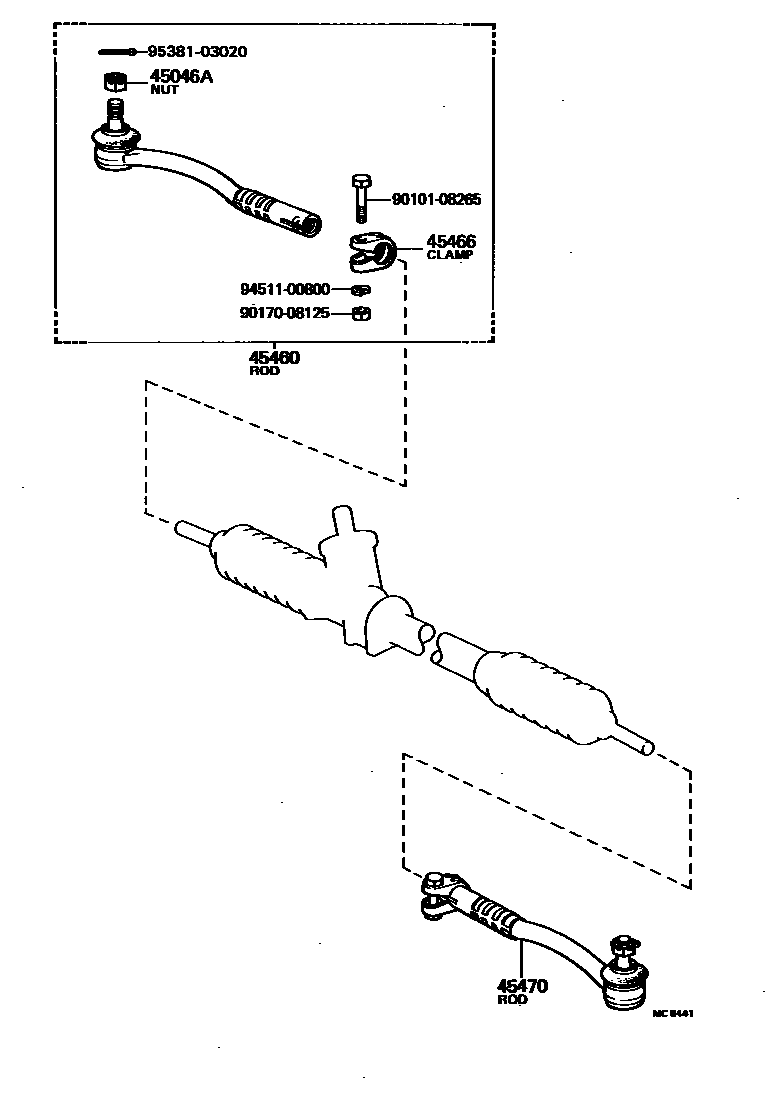

Toyota COROLLA 2 — FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i198205-198604

45460ROD ASSY, TIE, RH

main45460-19185i198205-198604

main45460-19195i198205-198301

W/POWER STEERING

45466CLAMP, TIE ROD END

main45466-22010×2i198205-198604

45470ROD ASSY, TIE, LH

main45470-19035i198205-198604

main45470-19045i198205-198301

W/POWER STEERING

9010108265

main90101-08265

9017008125

main90170-08125

9451100800

main94511-00800

9538103020

main95381-03020

8 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota COROLLA 2

This section contains 8 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA 2. Key components include: NUT, CASTLE(FOR TIE ROD END), ROD ASSY, TIE, RH, CLAMP, TIE ROD END, ROD ASSY, TIE, LH.
