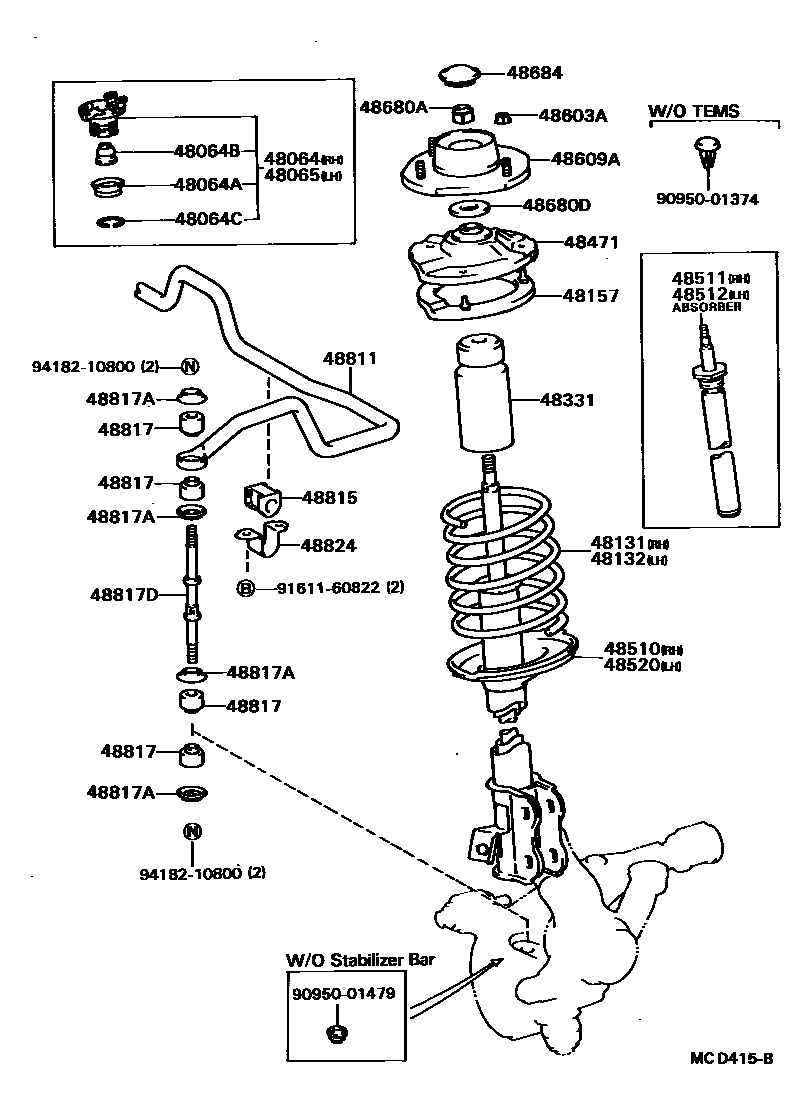

Toyota COROLLA 2 — FRONT SPRING & SHOCK ABSORBER

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-16020iEL31..TBO198609-198805

W/TEMS

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001×2iEL31..TBO198609-198805

W/TEMS

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019×2iEL31..TBO198609-198805

W/TEMS

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001×2iEL31..TBO198609-198805

W/TEMS

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-16020iEL31..TBO198609-198805

W/TEMS

48131SPRING, FRONT COIL, RH

main48131-16350iEL31..5F..TBO198609-198805

main48131-16360iEL3#..MTM..(CD,GL,LIM,TX,ZX)198605-198805

main48131-16380iEL31..4FC..SR198605-198805

main48131-16400iEL31..5F..SR198605-198805

main48131-16440iEL31..4FC..TBO198702-198805

main48131-16470iEL31..4FC..ZX198605-198805

main48131-16510iEL30..3FC198605-198805

main48131-16550iEL31..5F..TBO198609-198805

W/TEMS

main48131-16580iEL31..4FC..TBO198702-198805

W/TEMS

main48131-16600iNL30..4FC198609-198805

48132SPRING, FRONT COIL, LH

main48131-16350iEL31..5F..TBO198609-198805

main48131-16360iEL3#..MTM..(CD,GL,LIM,TX,ZX)198605-198805

main48131-16380iEL31..4FC..SR198605-198805

main48131-16400iEL31..5F..SR198605-198805

main48131-16440iEL31..4FC..TBO198702-198805

main48131-16470iEL31..4FC..ZX198605-198805

main48131-16510iEL30..3FC198605-198805

main48131-16550iEL31..5F..TBO198609-198805

W/TEMS

main48131-16580iEL31..4FC..TBO198702-198805

W/TEMS

main48131-16600iNL30..4FC198609-198805

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-10010×2iEL3#,NL30198605-198608

main48157-16030×2iEL3#,NL30198608-198805

48331BUMPER, FRONT SPRING, NO.1

main48331-10070×2iEL3#,NL30198605-198805

main48331-16050iEL31..TBO198609-198805

W/TEMS

48471SEAT, FRONT SPRING, UPPER

main48044-10020×2iEL3#,NL30198605-198805

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-16170iEL31..TBO198609-198805

W/TEMS

main48510-16180iEL3#..CD,GL,LIM,TX,ZX198605-198805

sub48510-16281

main48510-16200iNL30198605-198701

main48510-16280iEL31..GP,SR198701-198805

sub48510-16281

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-16010iEL3#..CD,GL,LIM,TX,ZX198605-198805

main48511-16020iEL31..GP,SR198605-198805

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-16010iEL3#..CD,GL,LIM,TX,ZX198605

main48511-16020iEL31..GP,SR198605

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-16010iEL31..TBO198609-198805

W/TEMS

main48520-16020iEL3#..CD,GL,LIM,TX,ZX198605-198805

sub48520-16061

main48520-16040iNL30198605-198701

main48520-16060iEL31..GP,SR198701-198805

sub48520-16061

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08090×8iEL3#,NL30198605-198805

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-16060×2iEL31..TBO198609-198805

W/TEMS

sub48609-16120

main48609-16090×2iEL3#..CBR198605-198805

main48609-16110×2iNL30..4FC198609-198805

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029×2iEL31..TBO198609-198805

W/TEMS

main94182-11400×2iEL3#,NL30198605-198805

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049×2iEL3#,NL30198605-198805

48684COVER, BEARING DUST

main48684-10010×2iEL3#,NL30198605-198805

48811BAR, STABILIZER, FRONT

main48811-16150iEL31..GP,SR198605-198805

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14130×2iEL31..GP,SR198605-198805

48817CUSHION, FRONT STABILIZER

main48817-30020×8iEL31..GP,SR198605-198805

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×8iEL31..GP,SR198605-198805

48817DBOLT(FOR FRONT STABILIZER)

main48819-20030×2iEL31..GP,SR198605-198805

48824BRACKET, STABILIZER, FRONT

main48824-20040×2iEL31..GP,SR198605-198805

9095001374

main90950-01374

9095001479

main90950-01479

9161160822

main91611-60822

9418210800

main94182-10800

29 parts on this diagram · 1 diagram in section
