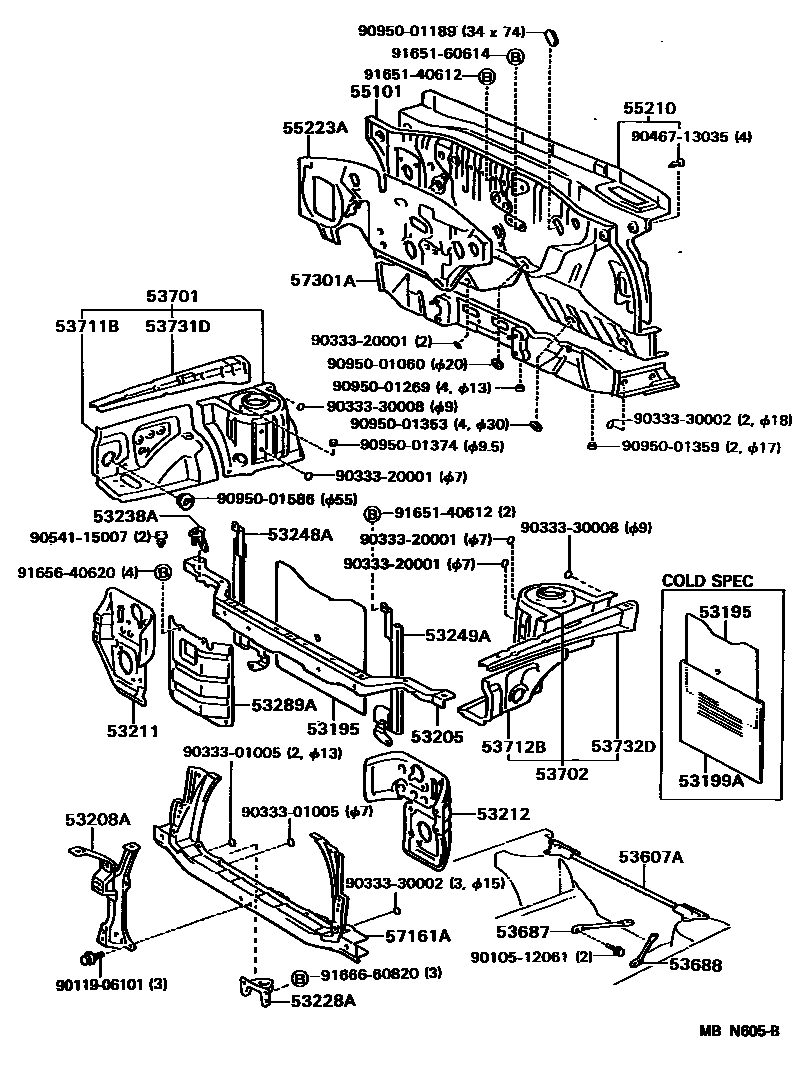

Toyota COROLLA 2 — FRONT FENDER APRON & DASH PANEL

53195PLATE, RADIATOR SHUTTER

main53195-16010iNL30..5F198805-199009

53199ABAG, RADIATOR SHUTTER

main53199-16010iNL30..5F198805-199009

sub53199-10020

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-16080iEL31..TBO198808-199009

main53216-16080iEL3#,NL30..CBR,EFI,TD198805-199009

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-16050iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

sub53208-16070

main53208-16060iEL31..AR,SRI198805-199009

main53215-16030iEL31..TBO198805-199009

53211SUPPORT, RADIATOR, RH

main53211-16070iEL31..AR,GP,SRI198805-199009

53212SUPPORT, RADIATOR, LH

main53212-16070iEL31..AR,GP,SRI198805-199009

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-16070iEL3#,NL30..CBR,EFI,TD198805-199009

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-16010×2iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

53248ABRACKET, RADIATOR SHUTTER, RH

main53248-16030iNL30..5F198805-199009

53249ABRACKET, RADIATOR SHUTTER, LH

main53249-16010iNL30..5F198805-199009

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-16030iEL31..TBO198805-199009

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-16010iEL31..TBO198805-199009

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-16010iEL31..TBO198805-199009

53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH

main53688-16010iEL31..TBO198805-199009

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16160iEL3#,NL30198805-199009

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16090iEL3#,NL30198805-199009

53711BAPRON, FRONT FENDER, FRONT RH

main53711-16090iEL3#,NL30198805-199009

53712BAPRON, FRONT FENDER, FRONT LH

main53712-10190iEL3#,NL30198805-199009

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-16020iEL3#,NL30198805-199009

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-16020iEL3#,NL30198805-199009

55101PANEL SUB-ASSY, DASH

main55101-16220iEL3#..MTM198805-199009

main55101-16230iEL3#..ATM198805-199009

sub90950-01409

sub90950-01547

main55101-16260iNL30198805-199009

55210INSULATOR ASSY, DASH PANEL

main55210-16060iNL30;EL3#..MTM198805-199009

main55210-16070iEL3#..ATM198805-199009

55223AINSULATOR, DASH PANEL, OUTER

main55223-16010iNL30198805-199009

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-16903iEL31..TBO198805-199009

main57161-16906iEL3#,NL30..CBR,EFI,TD198805-199009

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-16010iEL3#,NL30198805-199009

9010512061

main90105-12061

9011906101

main90119-06101

9033301005

main90333-01005

9033320001

main90333-20001

9033330002

main90333-30002

9033330008

main90333-30008

9046713035

main90467-13035

9054115007

main90541-15007

9095001060

main90950-01060

9095001189

main90950-01189

9095001269

main90950-01269

9095001353

main90950-01353

9095001359

main90950-01359

9095001374

main90950-01374

9095001586

main90950-01586

9165140612

main91651-40612

9165160614

main91651-60614

9165640620

main91656-40620

9166660820

main91666-60820

44 parts on this diagram · 1 diagram in section
