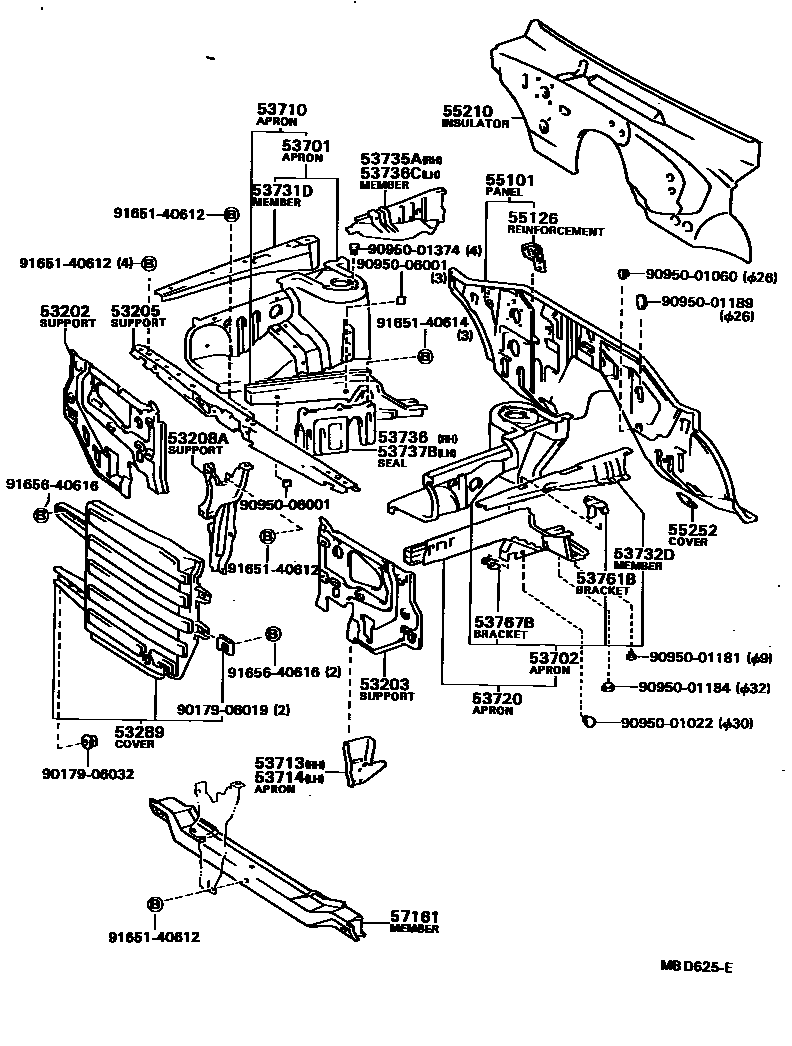

Toyota COROLLA 2 — FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-16030iAL2#198205-198604

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-16030iAL2#198205-198408

main53203-16040iAL2#198408-198604

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-16010iAL2#198205-198408

sub53205-16040

main53205-16030iAL21..3ASU198408-198604

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-16010iAL2#198205-198408

main53208-16020iAL2#198408-198604

53289COVER, RADIATOR SIDE BAFFLE

main53289-16020iAL2#198205-198206

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16060iAL2#198205-198604

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16060iAL2#198205-198604

sub53702-16050

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-16902iAL2#198205-198408

main53701-16903iAL21..3ASU198408-198604

53713APRON, FENDER SIDE, RH

main53713-16030iAL2#198205-198403

main53713-16040iAL2#198403-198408

PLANT.A31-A32

53714APRON, FENDER SIDE, LH

main53714-16030iAL2#198205-198403

main53714-16040iAL2#198403-198408

PLANT.A31-A32

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-16902iAL2#198205-198402

main53702-16905iAL2#198402-198604

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-16010iAL2#198205-198604

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-16010iAL2#198205-198604

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-16010iAL2#198205-198604

53736SEAL, FRONT FENDER APRON, RH

main53736-16030iAL2#198205-198604

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53706-16010iAL2#198205-198512

main53736-16040iAL2#198512-198604

53737BSEAL, FRONT FENDER APRON, LH

main53737-16030iAL2#198205-198604

53761BBRACKET, BATTERY CLAMP MOUNTING

main53761-16030iAL2#198205-198604

53767BBRACKET, BATTERY WIRRING HARNESS

main53767-20040iAL2#198205-198604

55101PANEL SUB-ASSY, DASH

main55101-16130iAL2#..MTM198205-198408

main55101-16150iAL2#..3FC198205-198408

main55101-16310iAL20..4F198408-198604

main55101-16320iAL21..3ASU198408-198604

main55101-16330iAL2#..3FC198408-198604

55126REINFORCEMENT, CLUTCH WIRE SUPPORT

main55126-16060iAL2#..MTM198502-198604

55210INSULATOR ASSY, DASH PANEL

main55210-16030iAL2#198205-198408

main55210-16050iAL2#198408-198604

55252COVER, DASH PANEL HOLE

main55129-16010×2iAL2#198205-198604

57161CROSSMEMBER, FRONT

main57104-16030iAL2#198205-198601

main57104-16040iAL2#198601-198604

9017906019

main90179-06019

9017906032

main90179-06032

9095001022

main90950-01022

9095001060

main90950-01060

9095001181

main90950-01181

9095001184

main90950-01184

9095001189

main90950-01189

9095001374

main90950-01374

9095006001

main90950-06001

9165140612

main91651-40612

9165140614

main91651-40614

9165640616

main91656-40616

36 parts on this diagram · 1 diagram in section
