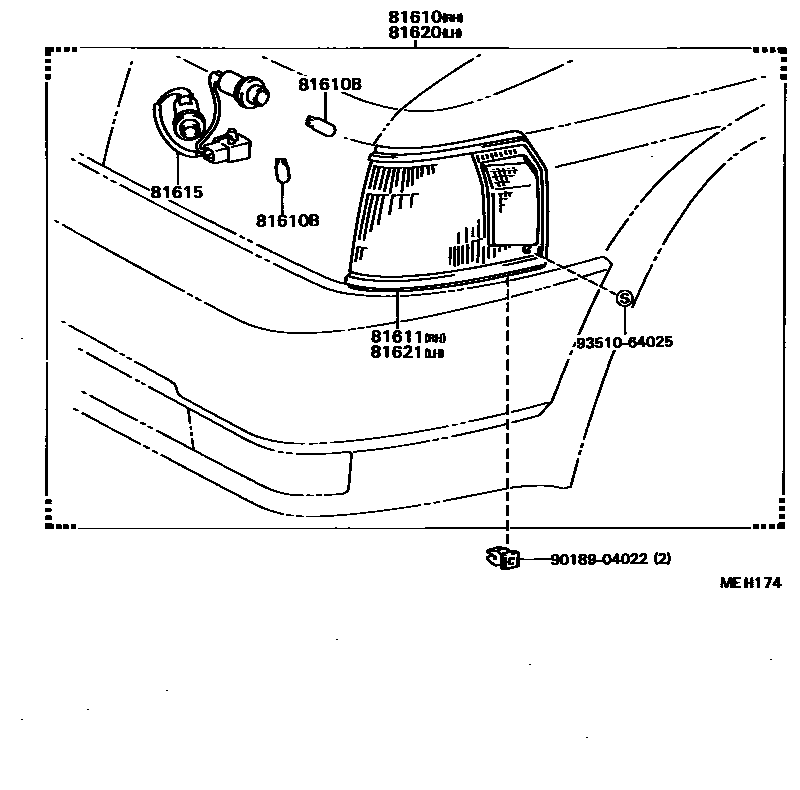

Toyota COROLLA 2 — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-16120i198605-198805

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198605-198805

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16120i198605-198805

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-16120×2i198605-198805

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-16120i198605-198805

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16120i198605-198805

9018904022

main90189-04022

9351064025

main93510-64025

8 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA 2

This section contains 8 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA 2. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
