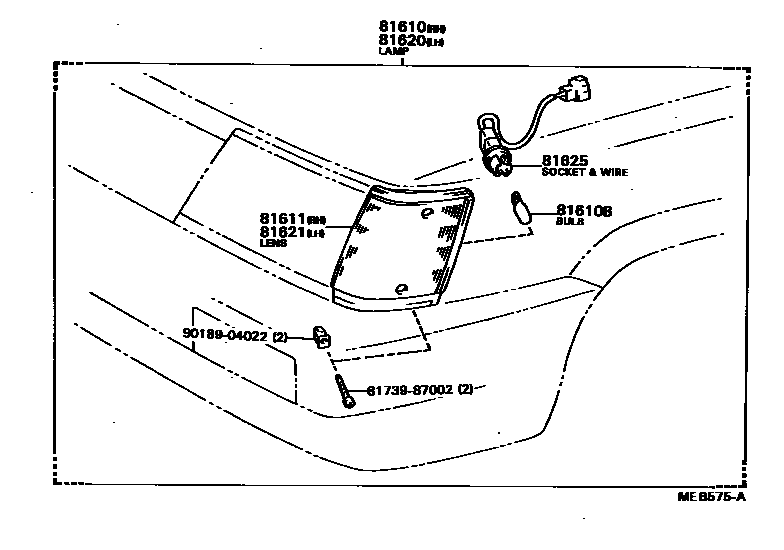

Toyota COROLLA 2 — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-19375i198205-198604

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×2i198205-198604

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16050i198205-198601

main81611-16110i198601-198604

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-19375i198205-198604

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16050i198205-198601

main81621-16110i198601-198604

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-16040×2i198205-198604

8173987002

main81739-87002

9018904022

main90189-04022

8 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA 2

This section contains 8 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA 2. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
