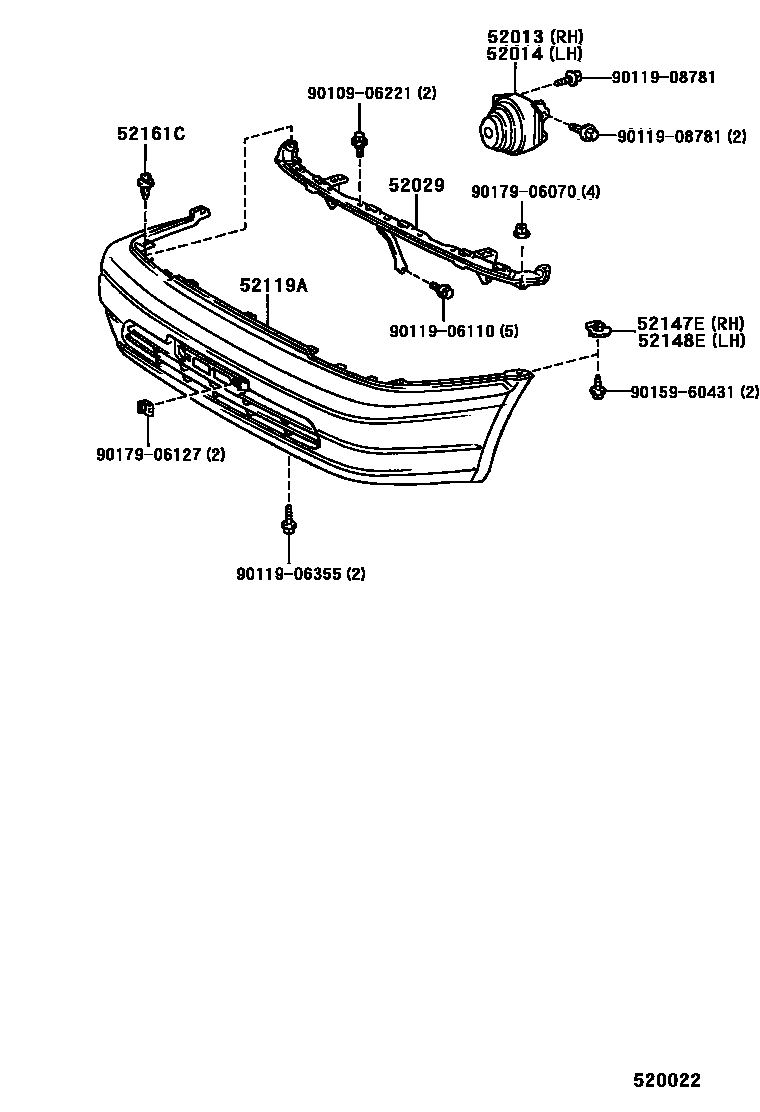

Toyota COROLLA 2 — FRONT BUMPER & BUMPER STAY
52013ARM SUB-ASSY, FRONT BUMPER, INNER RH
52014ARM SUB-ASSY, FRONT BUMPER, INNER LH
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
BLUISH SILVER ME.,1A0
BLACK ME,205
SUPER RED 2,3E5
MAGENTA MC.,3L3
DK.GREEN M.M.,6N7
GREEN M.M.,6P6
DK.BLUE M.M.,8K0
LIGHT MARINE BLUE MM,8K1
DK.BLUE M.M.,8L3
SUPER WHITE 2,040
BLUISH SILVER ME.,1A0
BLACK ME,205
SUPER RED II,3E5
PL.YELLOW OP,574
GREEN M.M.,6P6
DK.BLUE M.M.,8L3
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52161CPIECE, FRONT BUMPER
9010906221
main90109-06221
9011906110
main90119-06110
9011906355
main90119-06355
9011908781
main90119-08781
9015960431
main90159-60431
9017906070
main90179-06070
9017906127
main90179-06127
14 parts on this diagram · 3 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota COROLLA 2
This section contains 18 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota COROLLA 2. Key components include: ARM SUB-ASSY, FRONT BUMPER, INNER RH, ARM SUB-ASSY, FRONT BUMPER, INNER LH, REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER, COVER, FRONT BUMPER, ARM, FRONT BUMPER, UPPER NO.2 RH.
