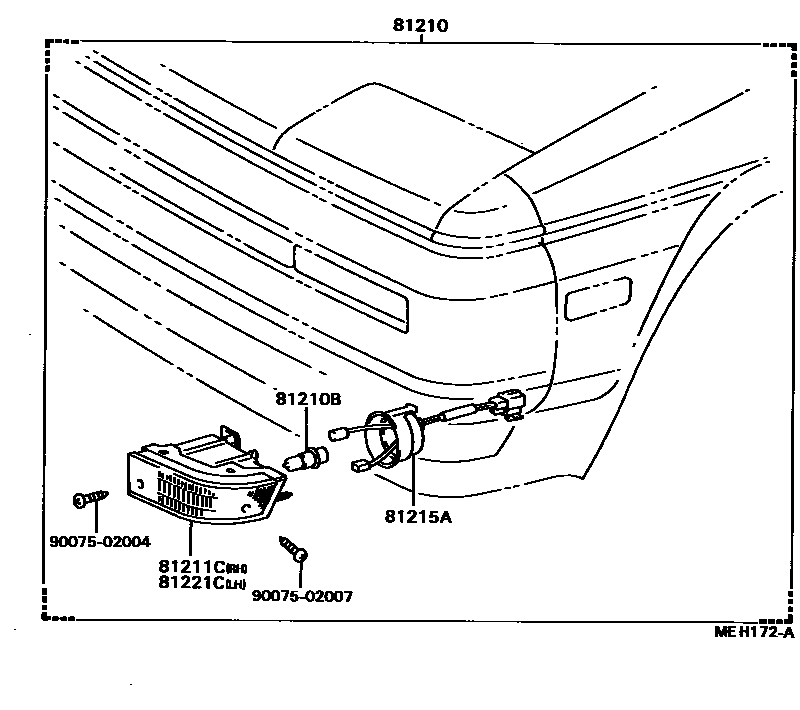

Toyota COROLLA 2 — FOG LAMP

81210LAMP ASSY, FOG

main81210-19185i198605-198805

main81220-19105i198605-198805

81210BBULB, FOG LAMP

main90981-13040×2i198605-198805

81211CLAMP UNIT, FOG LAMP, RH

main81211-16040i198605-198805

81215ASOCKET & WIRE, FOG LAMP

main81215-16040×2i198605-198805

81221CLAMP UNIT, FOG LAMP, LH

main81221-16020i198605-198805

9007502004

main90075-02004

9007502007

main90075-02007

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota COROLLA 2

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA 2. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, SOCKET & WIRE, FOG LAMP, LAMP UNIT, FOG LAMP, LH.
