Toyota COROLLA 2 — FOG LAMP

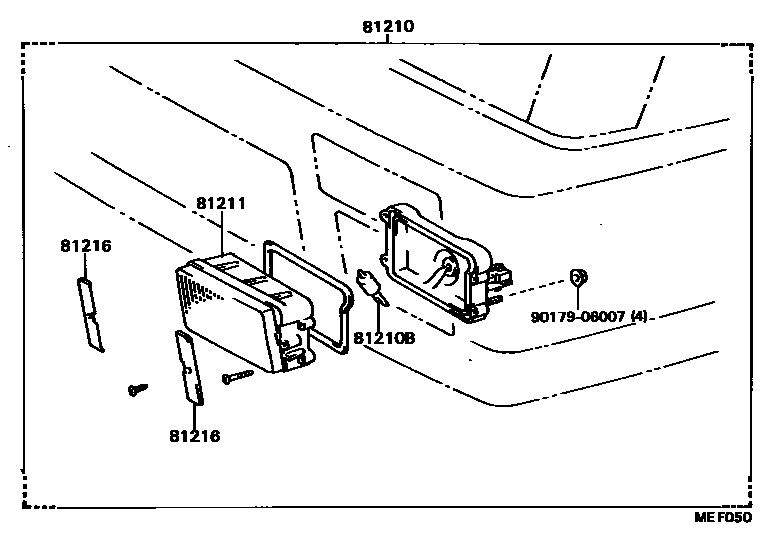

Parts diagram
81210LAMP ASSY, FOG
main81210-19175i198408-198604
RH,SPORTS PACKAGE
main81220-19095i198408-198604
LH,SPORTS PACKAGE
81210BBULB, FOG LAMP
main90981-13028×2i198408-198604
81211LENS, FOG LAMP
main81211-16030i198408-198604
RH,SPORTS PACKAGE
main81221-16010i198408-198604
LH,SPORTS PACKAGE
81216RIM, FOG LAMP, NO.1
main81216-16030×2i198408-198604
SPORTS PACKAGE
9017906007
main90179-06007

5 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota COROLLA 2

This section contains 5 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA 2. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, RIM, FOG LAMP, NO.1.
