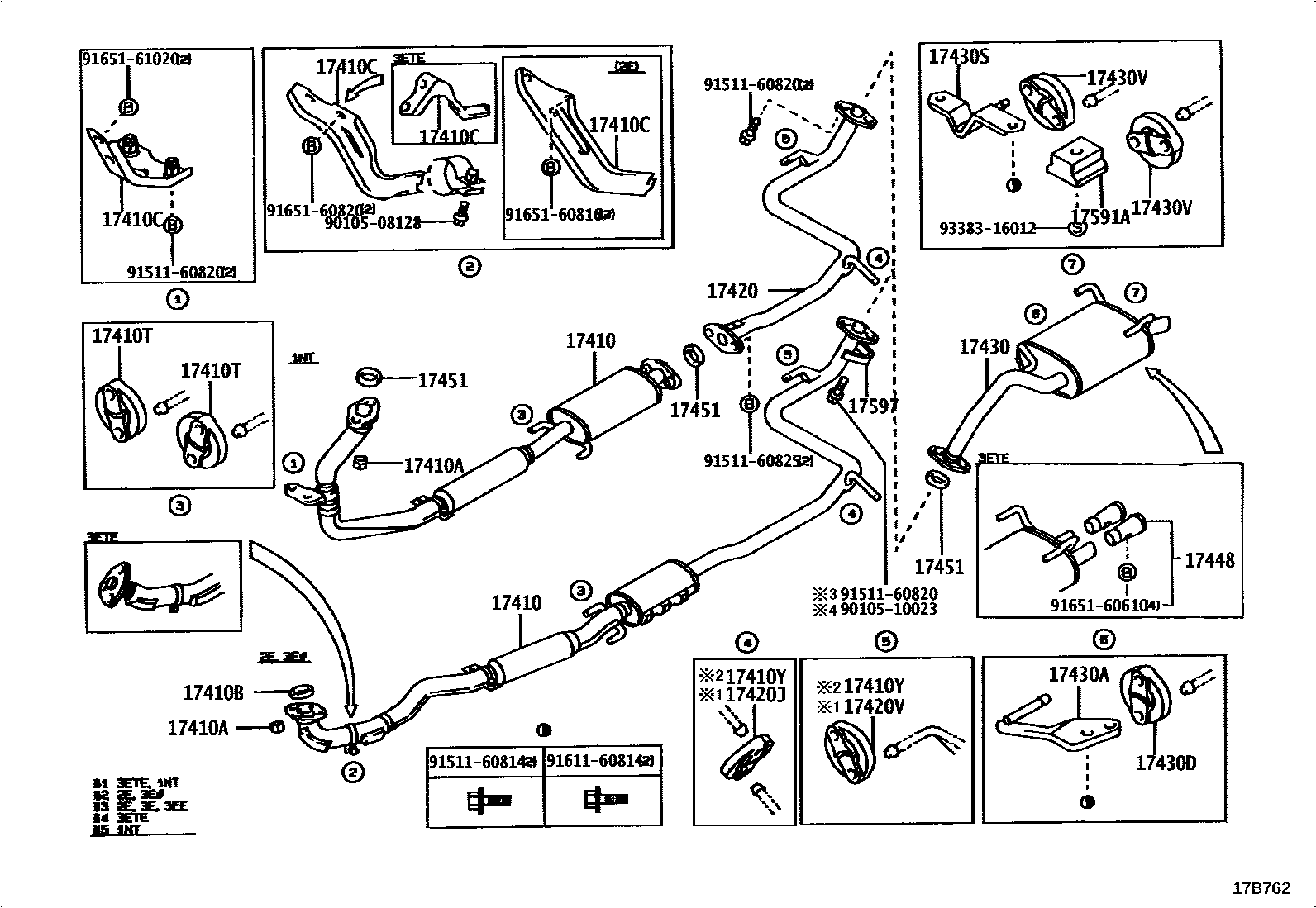

Toyota COROLLA 2 — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410TBOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17420PIPE ASSY, EXHAUST, CENTER
17420JBOLT OR RING, EXHAUST PIPE CENTER
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
17591ASTOPPER, EXHAUST PIPE SUPPORT
17597PROTECTOR, EXHAUST PIPE SPLASH
9010508128
main90105-08128
9010510023
main90105-10023
9151160814
main91511-60814
9151160820
main91511-60820
9151160825
main91511-60825
9161160814
main91611-60814
9165160610
main91651-60610
9165160816
main91651-60816
9165160820
main91651-60820
9165161020
main91651-61020
9338316012
main93383-16012
29 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota COROLLA 2
This section contains 29 genuine Toyota parts for the EXHAUST PIPE system of the Toyota COROLLA 2. Key components include: PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, BRACKET, EXHAUST PIPE FRONT (FOR FRONT), BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER).
