Toyota COROLLA 2 — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
*52
25601ASLEEVE, BALL, EGR PIPE, NO.1
*52
25601BNUT, UNION, EGR PIPE, NO.1
*52
25620VALVE ASSY, EGR
*52
25627GASKET, EGR VALVE
*52
25628GASKET, EGR INLET
*52
9017908017
main90179-08017
9161160614
main91611-60614
8 parts on this diagram · 1 diagram in section

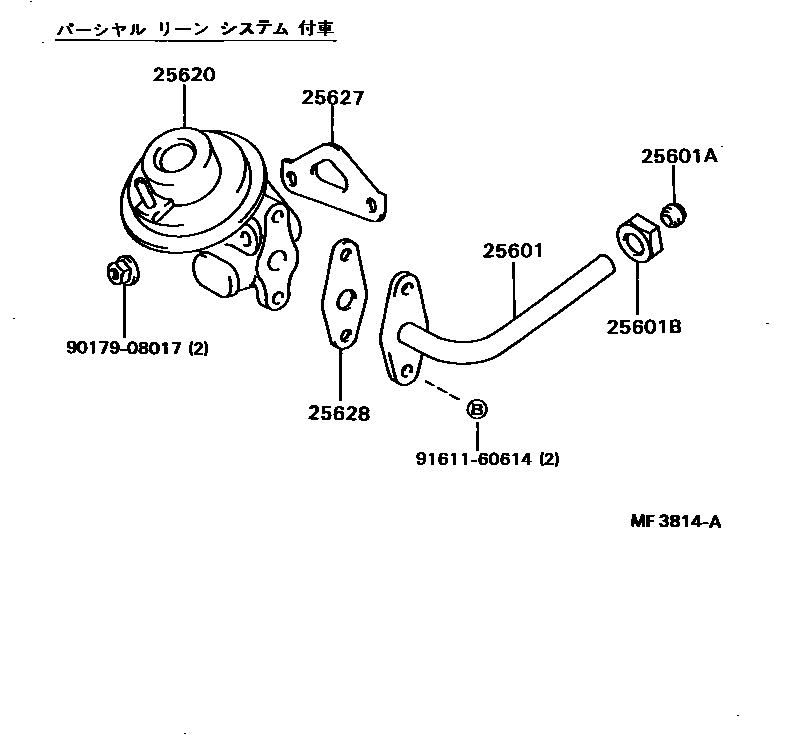

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COROLLA 2
This section contains 8 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COROLLA 2. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
