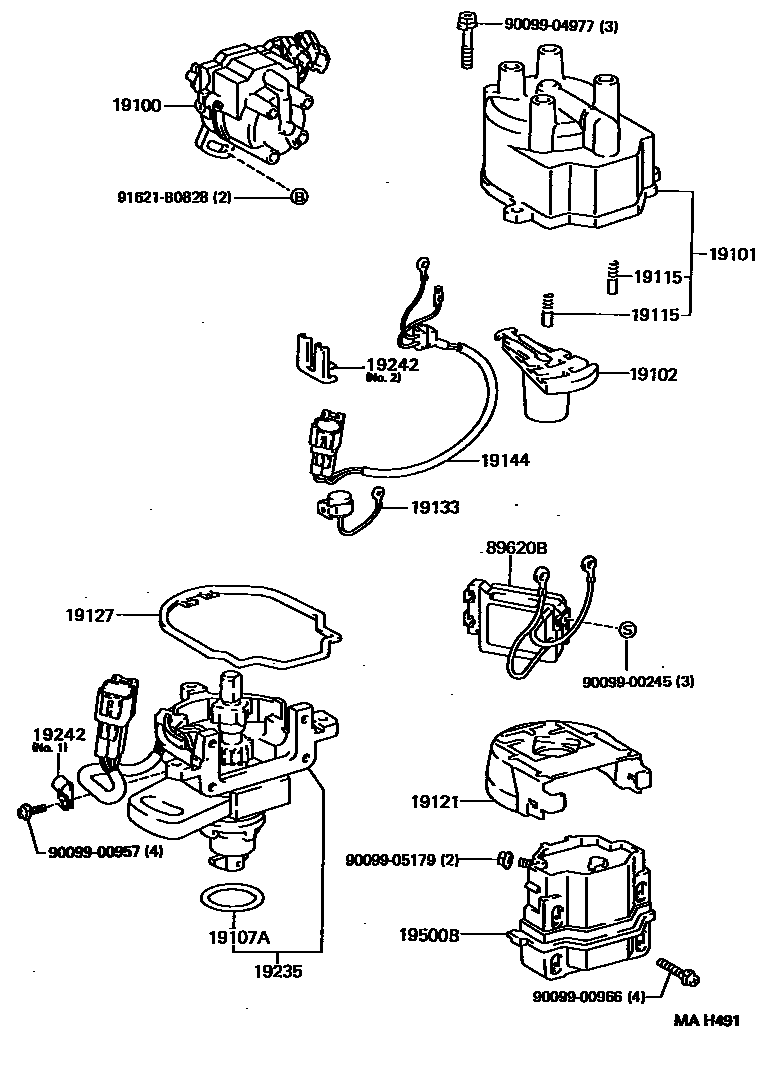

Toyota COROLLA 2 — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19020-11340i4EFE,5EFE..EL5#199409-199508

main19020-11380i4EFE..EL51199511-199712

main19020-11390i4EFE,5EFE..EL5#199508-199511

main19020-11400i5EFE..EL53,55199601-199712

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i4EFE,5EFE..EL5#199409-199712

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i4EFE,5EFE..EL5#199409-199511

main19102-11370i4EFE..EL51199511-199601

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i4EFE,5EFE..EL5#199409-199712

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i4EFE,5EFE..EL5#199409-199712

19121COVER, DUST PROOF

main19121-11080i4EFE,5EFE..EL5#199409-199712

19127PACKING, DUST PROOF

main19127-15120i4EFE,5EFE..EL5#199409-199712

19133CONDENSER, DISTRIBUTOR

main19133-16240i4EFE,5EFE..EL5#199409-199712

19144LEAD, DISTRIBUTOR BREAKER

main19144-11350i4EFE,5EFE..EL5#199409-199712

sub19144-11340

19235HOUSING, DISTRIBUTOR

main19235-11340i4EFE,5EFE..EL5#199409-199712

19242CLAMP, CORD

main19242-11190i4EFE,5EFE..EL5#199409-199712

main19242-11350i4EFE,5EFE..EL5#199409-199712

19500BCOIL ASSY, IGNITION

main90919-02164i4EFE,5EFE..EL5#199409-199712

89620BIGNITER ASSY

main89620-12420iEL5#199409-199508

sub89620-16260

9009900245

main90099-00245

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

91621B0828

main91621-B0828

19 parts on this diagram · 1 diagram in section
