Toyota COROLLA 2 — CRANKSHAFT & PISTON

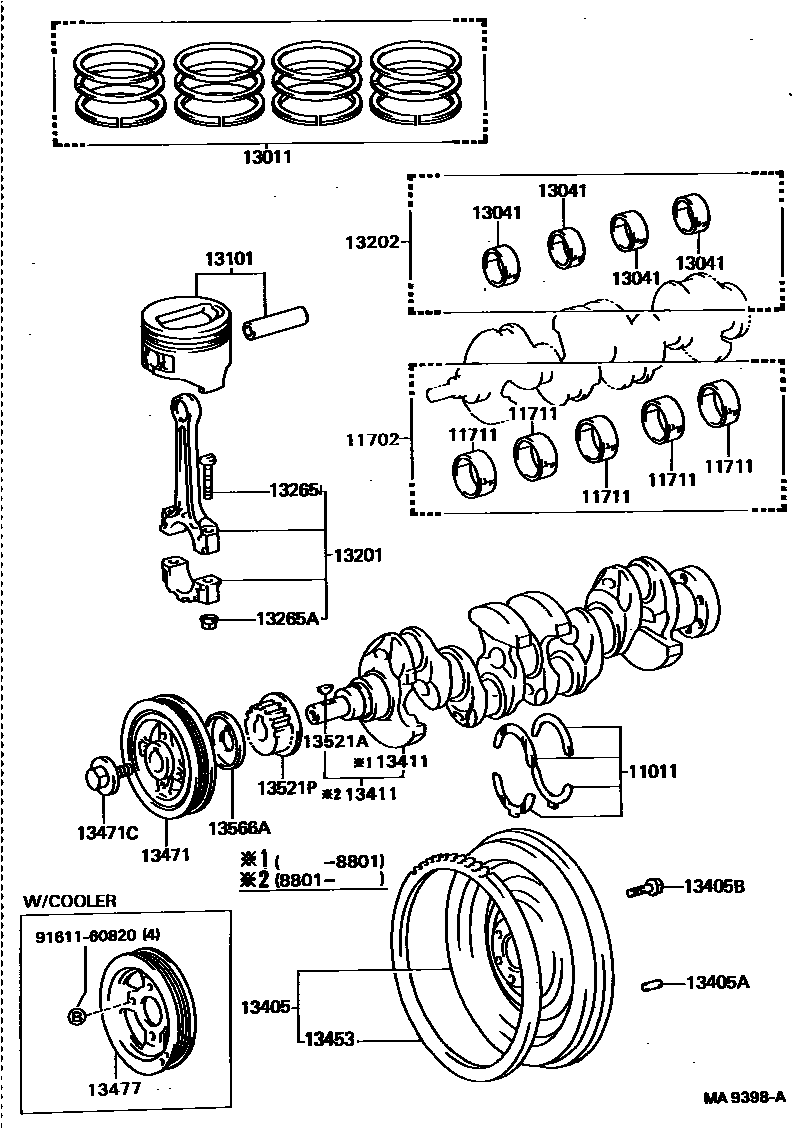

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

main11011-10020i198605-198805

main11011-11020i198605-198805

main11011-22011i198605-198805

main11012-10010i198605-198805

main11012-11020i198605-198805

main11012-22011i198605-198805

main11013-22011i198605-198805

11702BEARING SET, CRANKSHAFT

main11704-10010i198605-198805

main11704-11010i198605-198805

main11704-55010i198605-198805

main11705-55010i198605-198805

11711BEARING, CRANKSHAFT

main11701-10010-01×5i198605-198805

MARK"1",MARK 1

main11701-10010-02×5i198605-198805

MARK"2",MARK 2

main11701-10010-03×5i198605-198805

MARK"3",MARK 3

main11701-11010-01×5i198605-198805

MARK"1",MARK 1

main11701-11010-02×5i198605-198805

MARK"2",MARK 2

main11701-11010-03×5i198605-198805

MARK"3",MARK 3

main11701-11010-04×5i198605-198805

MARK"4",MARK 4

main11701-11010-05×5i198605-198805

MARK"5",MARK 5

main11701-55010-01i198605-198805

MARK"1",MARK 1

main11701-55010-02i198605-198805

MARK"2",MARK 2

main11701-55010-03i198605-198805

MARK"3",MARK 3

13011RING SET, PISTON

main13011-11041i198605-198805

main13011-11080i198605-198609

main13011-11090i198609-198805

main13011-11110i198609-198805

main13011-55010i198605-198805

main13013-11041i198605-198805

main13013-11080i198605-198609

main13013-11090i198609-198805

main13013-11110i198609-198805

main13013-55010i198605-198805

13041BEARING, CONNECTING ROD

main13041-10020-01×4i198605-198805

MARK"1",MARK 1

main13041-10020-02×4i198605-198805

MARK"2",MARK 2

main13041-10020-03×4i198605-198805

MARK"3",MARK 3

main13041-11020-01×4i198605-198805

MARK"1",MARK 1

main13041-11020-02×4i198605-198805

MARK"2",MARK 2

main13041-11020-03×4i198605-198805

MARK"3",MARK 3

main13041-55010-01×4i198605-198805

MARK"1",MARK 1

main13041-55010-02×4i198605-198805

MARK"2",MARK 2

main13041-55010-03×4i198605-198805

MARK"3",MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-11030×4i198605-198801

main13101-11030-01×4i198801-198805

main13101-11030-02×4i198801-198805

main13101-11030-03×4i198801-198805

main13101-11040×4i198605-198801

main13101-11040-01×4i198801-198805

main13101-11040-02×4i198801-198805

main13101-11040-03×4i198801-198805

main13101-11060×4i198609-198801

main13101-11060-01×4i198801-198805

main13101-11060-02×4i198801-198805

main13101-11060-03×4i198801-198805

main13101-11080×4i198605-198801

main13101-11080-01×4i198801-198805

main13101-11080-02×4i198801-198805

main13101-11080-03×4i198801-198805

main13101-55010×4i198605-198802

main13101-55010-01×4i198802-198805

main13101-55010-02×4i198802-198805

main13101-55010-03×4i198802-198805

main13103-11030×4i198605-198805

main13103-11040×4i198605-198805

main13103-11060×4i198609-198805

main13103-11080×4i198605-198805

main13103-55010×4i198605-198805

13201ROD SUB-ASSY, CONNECTING

main13201-19075×4i198605-198805

main13201-19085×4i198605-198805

main13201-59075×4i198605-198805

13202BEARING SET, CONNECTING ROD

main13204-10020i198605-198805

main13204-11020i198605-198805

13265BOLT, CONNECTING ROD

main13265-10020×8i198605-198805

main13265-55011×8i198605-198805

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08014×8i198605-198612

main90179-08118×8i198612-198805

13405FLYWHEEL SUB-ASSY

main13405-11030i198605-198805

main13405-11040i198605-198805

main13405-11050i198609-198805

main13405-55010i198605-198805

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i198605-198805

13405BBOLT, FLYWHEEL SETTING

main90105-10071×6i198605-198805

main90105-10138×6i198605-198805

13411CRANKSHAFT

main13401-11020i198801-198805

main13401-11040i198605-198805

main13411-11020i198605-198801

main13411-55900i198605-198805

13453GEAR, FLYWHEEL RING

main13453-10030i198605-198805

main13453-55010i198605-198805

13471PULLEY, CRANKSHAFT

main13408-11011i198701-198706

TOYODA KOUKI

main13408-11012i198706-198805

main13408-11020i198605-198706

MARUYASU

main13408-55010i198605-198805

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i198605-198805

main90105-12060i198605-198805

13477PULLEY, CRANKSHAFT, NO.2

main44319-16020i198605-198805

W/COOLER

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-10519i198605-198805

13521PPULLEY, CRANKSHAFT TIMING

main13521-11010i198605-198805

main13521-55010i198605-198805

13566AGUIDE, TIMING BELT

main13566-10011i198605-198805

main13566-55010i198605-198805

9161160820

main91611-60820

22 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota COROLLA 2

This section contains 26 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota COROLLA 2. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
