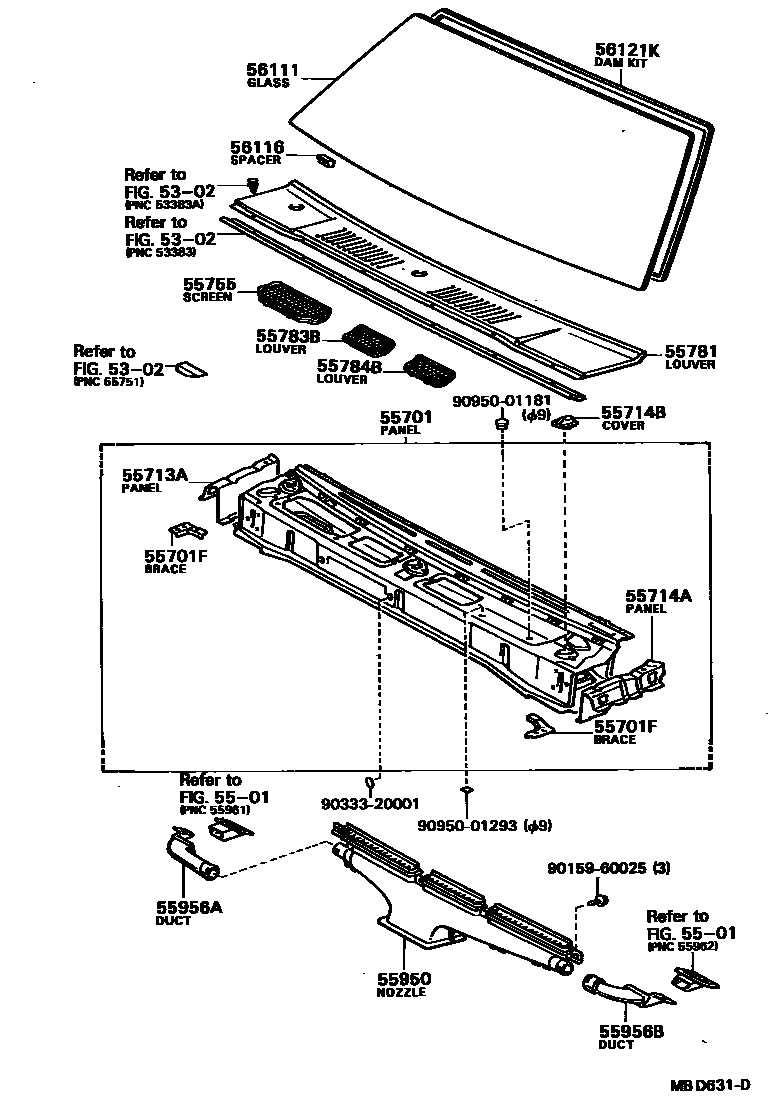

Toyota COROLLA 2 — COWL PANEL & WINDSHIELD GLASS

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55701PANEL SUB-ASSY, COWL

main55700-16030i198205-198604

55701FBRACE, COWL TOP TO APRON

main55715-16020i198205-198604

main55716-16020i198205-198604

55713APANEL, COWL TOP SIDE, RH

main55713-16020i198205-198604

55714APANEL, COWL TOP SIDE, LH

main55714-16020i198205-198604

55714BCOVER, COWL SIDE PANEL HOLE, LH

main55729-16010i198205-198604

55755SCREEN, HEATER AIR DUCT

main55756-16020i198205-198604

55781LOUVER, COWL VENTILATOR

main55781-16010i198208-198604

main55781-16030i198205-198208

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-16030i198205-198604

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-16010i198205-198604

55950NOZZLE ASSY, DEFROSTER

main55950-16020i198205-198408

main55950-16021i198408-198604

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-16010i198205-198604

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-16010i198205-198604

56111GLASS, WINDSHIELD

main56111-16050i198408-198604

WINDY,*ZT,T=5.0

main56111-16060i198206-198408

main56111-16070i198308-198408

DX-S,*LAM,T=4.7

main56111-16080i198206-198408

*TL,T=4.7

main56111-16090i198508-198604

main56111-16100i198508-198604

56116SPACER, WINDSHIELD GLASS

main56116-16020×2i198205-198306

main56116-16030×2i198306-198604

56121KDAM KIT, WINDSHIELD GLASS

main04562-30030i198205-198308

main04562-30040i198308-198604

9015960025

main90159-60025

9033320001

main90333-20001

9095001181

main90950-01181

9095001293

main90950-01293

21 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA 2

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA 2. Key components include: HOOD & FRONT FENDER, INSTRUMENT PANEL & GLOVE COMPARTMENT, PANEL SUB-ASSY, COWL, BRACE, COWL TOP TO APRON, PANEL, COWL TOP SIDE, RH.
