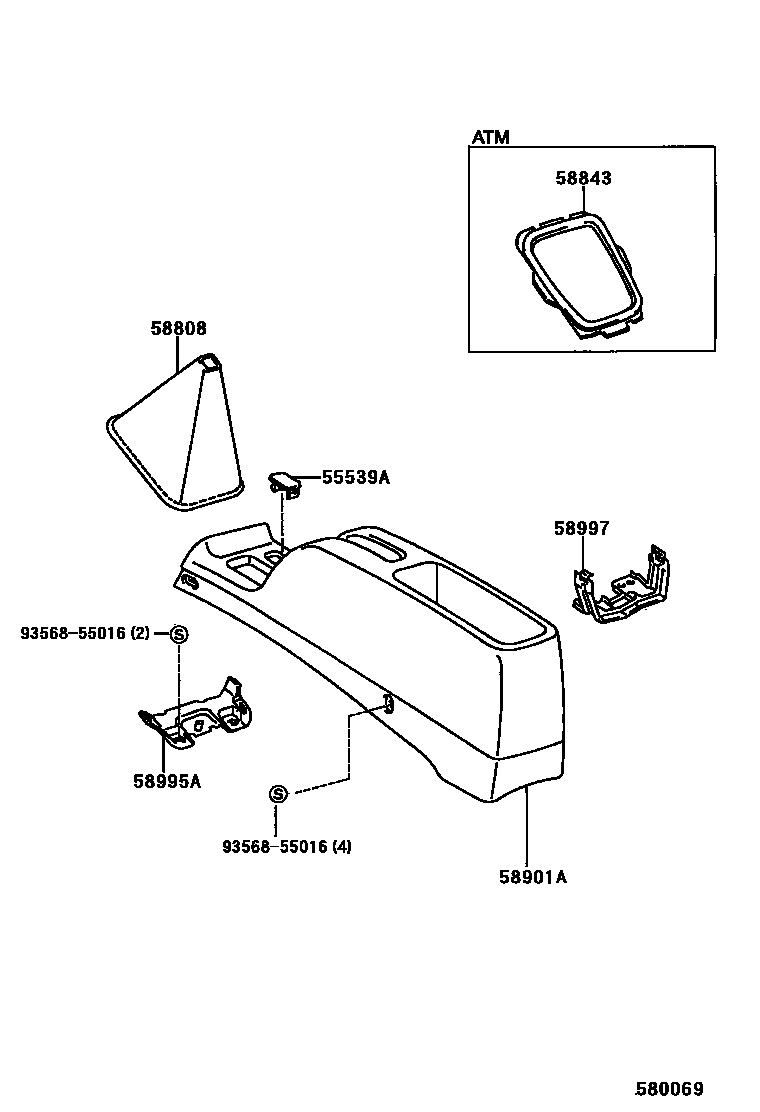

Toyota COROLLA 2 — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iEL51,53,NL50199608

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-B1iEL51,53,NL50199409-199608

BLUISH GRAY,TRIM1#

sub55539-32010

main55539-12120-E2iEL51,53,NL50199712

OAK,TRIM4#

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16100-B0iEL5#,NL50..MTM199409-199508

BLUISH GRAY,TRIM1#

main58808-16100-B1iEL5#,NL50..MTM199508-199907

SHADOW GRAY,TRIM1#

main58808-16100-E1iEL5#,NL50..MTM199712-199907

SANDAL WOOD,TRIM4#

58843BEZEL, SHIFTING HOLE

main58843-16040-B0iEL5#,NL50..ATM199409-199508

BLUISH GRAY,TRIM1#

main58843-16040-B1iEL5#,NL50..ATM199508

SHADOW GRAY,TRIM1#

main58843-16040-E1iEL5#,NL50..ATM199712

SANDAL WOOD,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16150-B0iEL51,53,NL50199409-199608

BLUISH GRAY,TRIM1#

sub58901-16130

sub74109-20080

main58901-16150-B1iEL51,53,NL50199608

SHADOW GRAY,TRIM1#

sub58901-16130

sub74109-20080

main58901-16150-E0iEL51,53,NL50199712

OAK,TRIM4#

sub58901-16130

sub74109-20080

main58901-16160-B0iEL55199409-199608

BLUISH GRAY,TRIM1#

sub58901-16140

sub74109-20080

main58901-16160-B1iEL55199608

SHADOW GRAY,TRIM1#

sub58901-16140

sub74109-20080

main58901-16160-E0iEL55199712

OAK,TRIM4#

sub58901-16140

sub74109-20080

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16070iEL5#,NL50199409

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-16070iEL51,53,NL50199409

9356855016

main93568-55016

7 parts on this diagram · 1 diagram in section
