Toyota COROLLA 2 — CONSOLE BOX & BRACKET

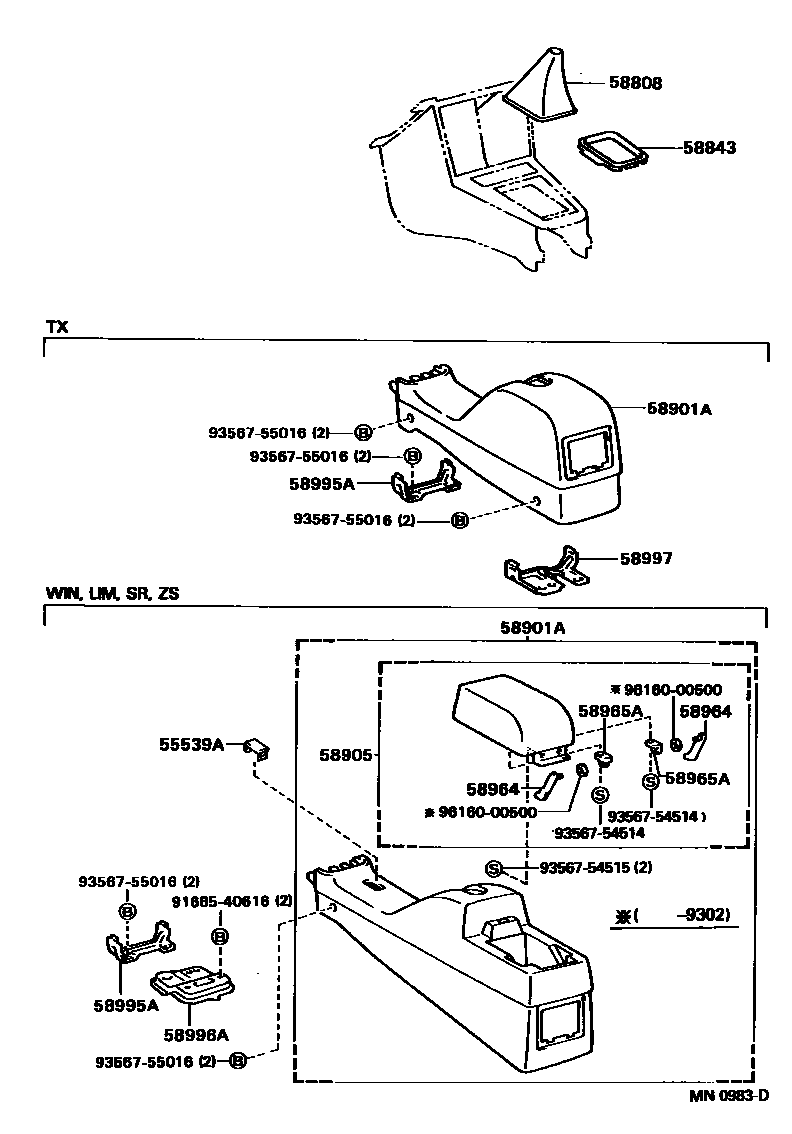

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-16040-01i199009-199208
BLACK,TRIM2#
sub55539-16040
main55539-16040-04i199009-199208
GRAYISH BLUE,TRIM8#
sub55539-16040
main55539-16040-07i199009-199208
SPRUCE,TRIM6#
sub55539-16040
main55539-16040-22i199208-199409
BLACK,TRIM2#
sub55539-16040
main55539-16040-G0i199208-199409
SPRUCE,TRIM6#
sub55539-16040
main55539-16040-W4i199208-199409
EISEN BLUE,TRIM8#
sub55539-16040
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-16090-01i199009-199208
BLACK,TRIM2#
sub58808-16090
main58808-16090-04i199009-199208
GRAYISH BLUE,TRIM8#
sub58808-16090
main58808-16090-07i199009-199208
SPRUCE,TRIM6#
sub58808-16090
main58808-16090-22i199208-199409
BLACK,TRIM2#
sub58808-16090
main58808-16090-G0i199208-199409
SPRUCE,TRIM6#
sub58808-16090
main58808-16090-W4i199208-199409
EISEN BLUE,TRIM8#
sub58808-16090
58843BEZEL, SHIFTING HOLE
main58843-16030-01i199009-199208
BLACK,TRIM2#
sub58843-16030
main58843-16030-04i199009-199208
GRAYISH BLUE,TRIM8#
sub58843-16030
main58843-16030-07i199009-199208
SPRUCE,TRIM6#
sub58843-16030
main58843-16030-22i199208-199409
BLACK,TRIM2#
sub58843-16030
main58843-16030-G0i199208-199409
SPRUCE,TRIM6#
sub58843-16030
main58843-16030-W4i199208-199409
EISEN BLUE,TRIM8#
sub58843-16030
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-16090-01i199009-199208
BLACK,TRIM2#
sub58901-16090
main58901-16090-04i199009-199208
GRAYISH BLUE,TRIM8#
sub58901-16090
main58901-16090-07i199009-199208
SPRUCE,TRIM6#
sub58901-16090
main58901-16090-22i199208-199409
sub58901-16090
main58901-16090-22i199208-199409
BLACK,TRIM2#
sub58901-16090
main58901-16090-G0i199208-199409
SPRUCE,TRIM6#
sub58901-16090
main58901-16090-W4i199208-199409
EISEN BLUE,TRIM8#
sub58901-16090
main58901-16090-W4i199208-199409
sub58901-16090
main58901-16100-01i199009-199208
BLACK,TRIM2#
sub58901-16100
main58901-16100-04i199009-199208
GRAYISH BLUE,TRIM8#
sub58901-16100
main58901-16100-22i199208-199409
BLACK,TRIM2#
sub58901-16100
main58901-16100-W4i199208-199409
EISEN BLUE,TRIM8#
sub58901-16100
main58901-16110-01i199009-199208
BLACK,TRIM2#
sub58901-16110
main58901-16110-04i199009-199208
GRAYISH BLUE,TRIM8#
sub58901-16110
main58901-16110-07i199009-199208
SPRUCE,TRIM6#
sub58901-16110
main58901-16110-22i199208-199409
BLACK,TRIM2#
sub58901-16110
main58901-16110-G0i199208-199409
SPRUCE,TRIM6#
sub58901-16110
main58901-16110-W4i199208-199409
EISEN BLUE,TRIM8#
sub58901-16110
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-16030-01i199009-199208
BLACK,TRIM2#
sub58905-16030
main58905-16030-04i199009-199208
GRAYISH BLUE,TRIM8#
sub58905-16030
main58905-16030-07i199009-199208
SPRUCE,TRIM6#
sub58905-16030
main58905-16030-C0i199208-199409
BLACK,TRIM2#
sub58905-16030
main58905-16030-G0i199208-199409
SPRUCE,TRIM6#
sub58905-16030
main58905-16030-J0i199208-199409
EISEN BLUE,TRIM8#
sub58905-16030
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-12040i199302-199305
RH
main58964-16010i199305-199409
RH
main58964-30040i199009-199302
main58964-32040i199009-199302
main58965-12040i199302-199305
LH
main58965-16010i199305-199409
LH
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
main58965-12010i199009-199409
main58965-20020i199009-199409
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-16060i199009-199409
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-16060i199009-199409
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-16070i199009-199409
9166540616
main91665-40616
9356754514
main93567-54514
9356754515
main93567-54515
9356755016
main93567-55016
9616000500
main96160-00500

15 parts on this diagram · 1 diagram in section
