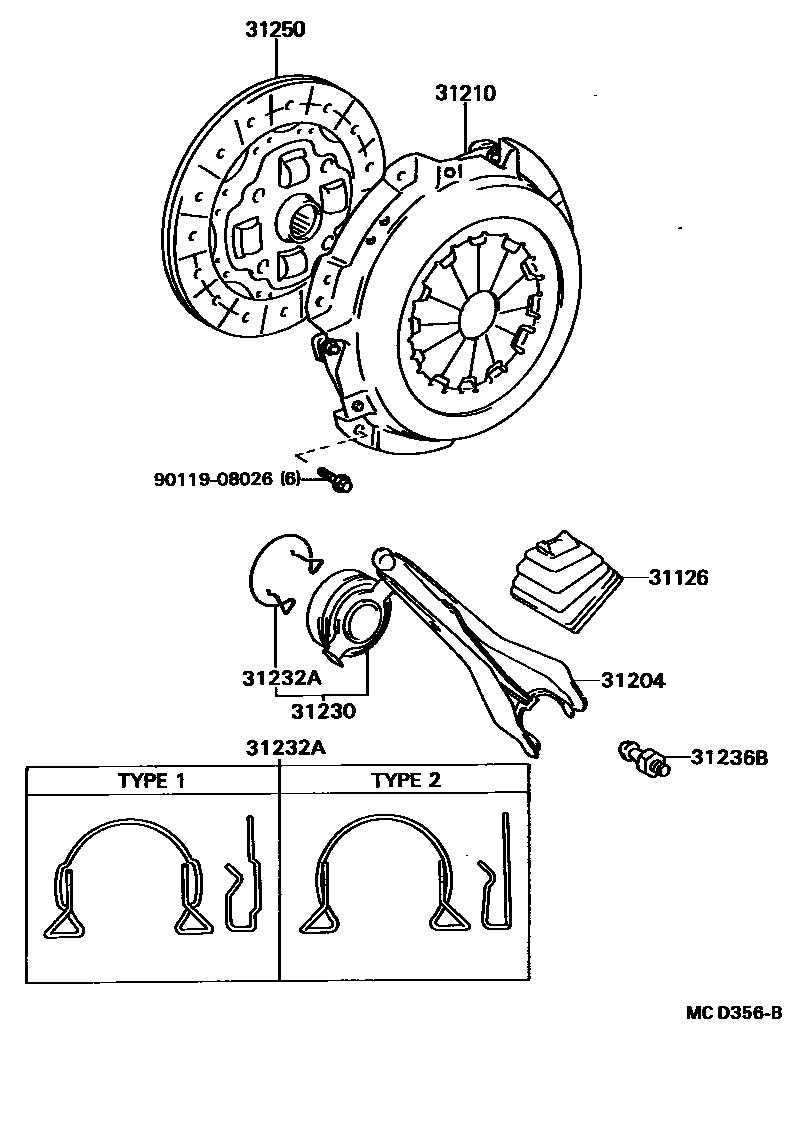

Toyota COROLLA 2 — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEL3#,NL30..MTM198805-199009

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEL3#,NL30..MTM198805-199009

31210COVER ASSY, CLUTCH

main31210-16060iEL30..4F198805-198812

main31210-16061iEL30..4F198812-198911

main31210-16062iEL30..4F198911-199009

sub31210-16063

main31210-16070iEL31..5F..(CBR,EFI)198805-198907

main31210-16071iEL31..5F..(CBR,EFI)198907-199009

sub31210-16130

main31210-16080iEL31..5F..TBO198805-198911

main31210-16081iEL31..5F..TBO198911-199009

sub31210-16082

main31210-16100iNL30..5F198805-198812

main31210-16101iNL30..5F198812-198911

main31210-16102iNL30..5F198911-199009

sub31210-12210

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEL3#,NL30..MTM198805-199009

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEL3#,NL30..MTM198805-199009

main31232-16031iEL3#,NL30..MTM198805-199009

31236BSUPPORT, RELEASE FORK

main31236-12011iEL3#,NL30..MTM198805-199009

31250DISC ASSY, CLUTCH

main31250-12155iEL31..5F..TBO198805-199006

main31250-12156iEL31..5F..TBO199006-199009

sub31250-12310

main31250-12170iEL31..5F..(CBR,EFI)198805-199006

main31250-12171iEL3#..MTM..(CBR,EFI)199006-199009

sub31250-12172

main31250-16050iNL30..5F198805-199009

sub31250-16051

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
