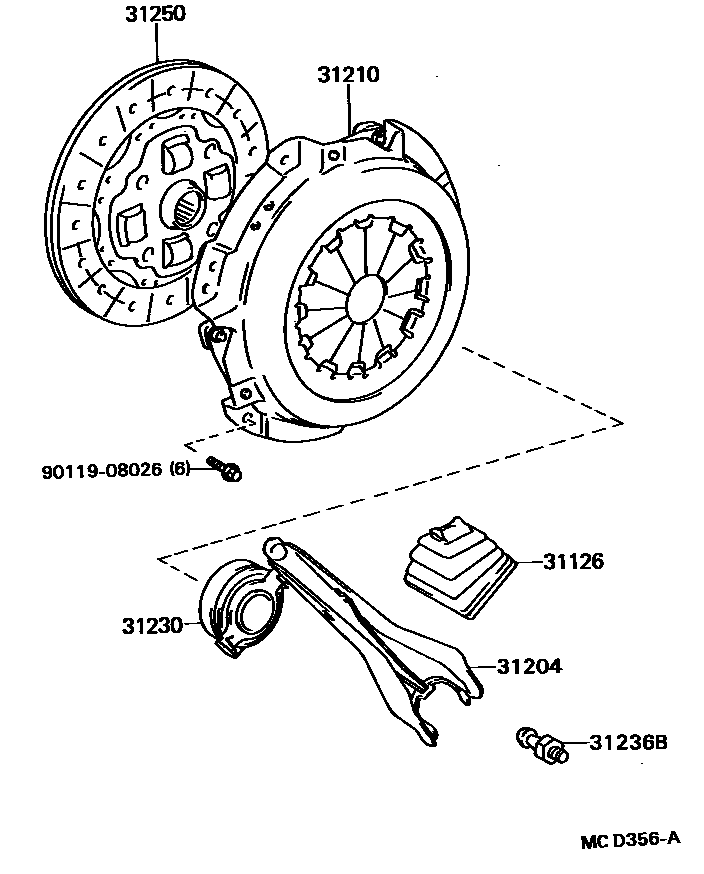

Toyota COROLLA 2 — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12050iEL3#,NL30..MTM198605-198701

main31126-12051iEL3#,NL30..MTM198701-198805

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEL3#,NL30..MTM198605-198805

31210COVER ASSY, CLUTCH

main31210-16060iEL30..4F198605-198805

sub31210-16061

main31210-16070iEL31..5F..CBR198605-198805

sub31210-16071

main31210-16080iEL31..5F..TBO198609-198805

sub31210-16081

main31210-16100iNL30..5F198605-198805

sub31210-16101

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iNL30..5F198610-198708

main31230-12110iNL30..5F198605-198610

sub31230-12111

main31230-12140iNL30..5F198708-198805

sub31230-16061

main31230-16060iEL3#..MTM198605-198805

sub31230-16061

31236BSUPPORT, RELEASE FORK

main31236-12011iEL3#,NL30..MTM198605-198805

31250DISC ASSY, CLUTCH

main31250-12133iEL3#..MTM..CBR198605-198803

main31250-12154iEL31..5F..TBO198609-198803

main31250-12155iEL31..5F..TBO198803-198805

sub31250-12156

main31250-12170iEL3#..MTM..CBR198803-198805

sub31250-12171

main31250-16050iNL30..5F198605-198805

sub31250-16051

9011908026

main90119-08026

7 parts on this diagram · 2 diagrams in section
