Toyota COROLLA 2 — CARBURETOR ASSEMBLY

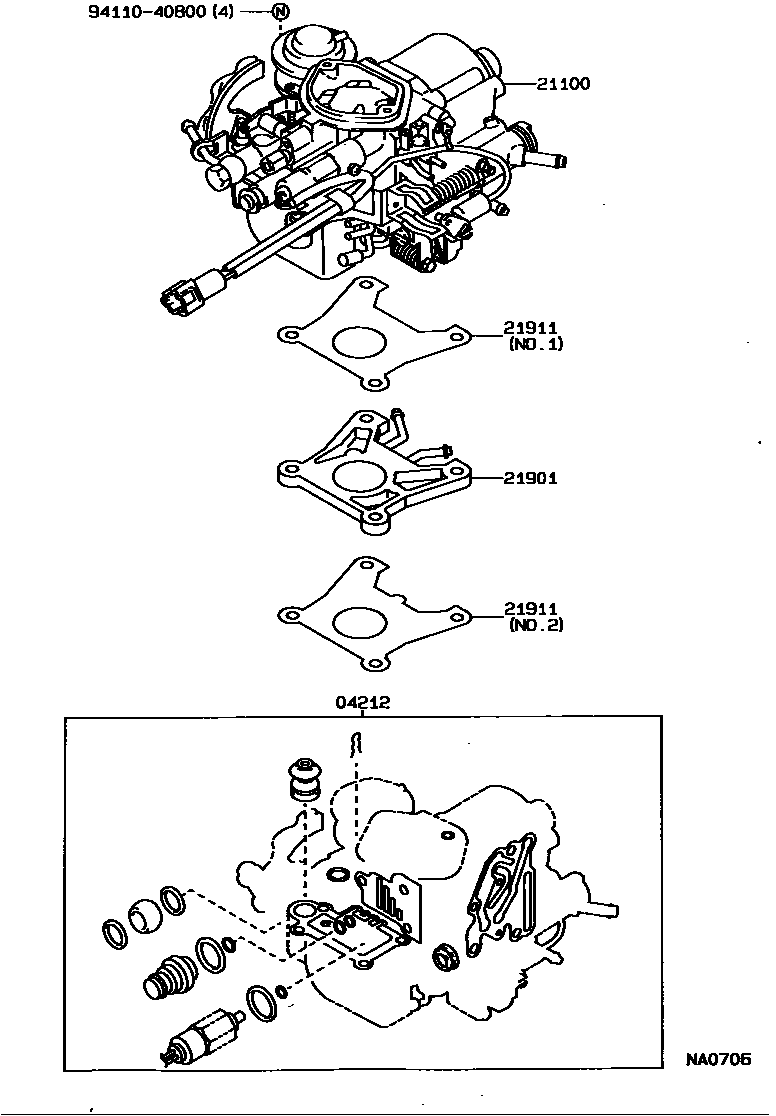

Parts diagram

04212GASKET KIT, CARBURETOR

main04212-11040i198805-199009

main04212-15091i198805-198911

main04212-15092i198911-199009

21100CARBURETOR ASSY

main21100-11281i198805-199009

main21100-11304i198805-199009

main21100-11324i198805-199009

main21100-11344i198805-199009

main21100-11364i198805-199009

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-11010i198805-199009

main21901-11030i198805-199009

21911GASKET, CARBURETOR

main21911-11020i198805-198912

main21911-11021i198912-199009

main21911-11030i198805-198912

main21911-11031i198912-199009

9411040800

main94110-40800

5 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota COROLLA 2

This section contains 5 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COROLLA 2. Key components include: GASKET KIT, CARBURETOR, CARBURETOR ASSY, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1, GASKET, CARBURETOR.
