Toyota COROLLA 2 — CARBURETOR ASSEMBLY

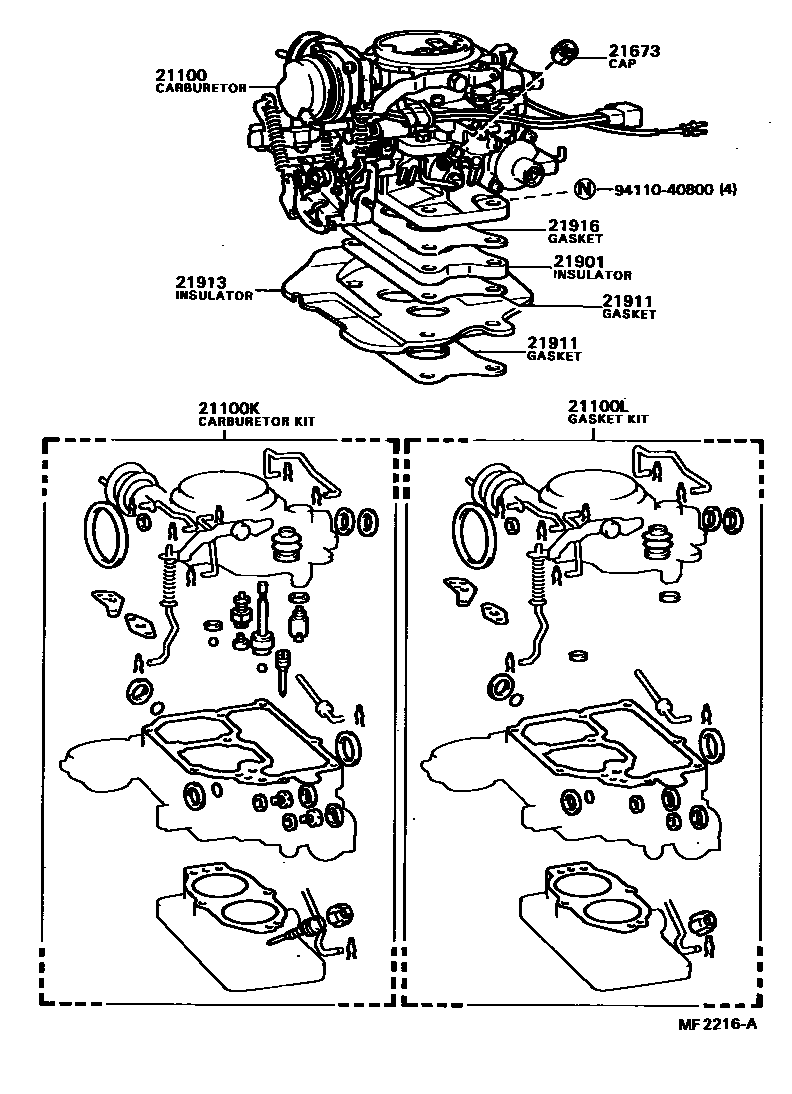

Parts diagram

21100CARBURETOR ASSY

main21100-15250i198205-198408

main21100-15260i198205-198211

main21100-15261i198211-198408

main21100-15270i198205-198211

main21100-15271i198211-198408

main21100-15370i198408-198604

main21100-15380i198408-198604

main21100-15390i198408-198604

FR

main21100-15400i198408-198604

RR

21100KCARBURETOR KIT

main04211-15090i198205-198408

21100LGASKET KIT, CARBURETOR

main04212-15050i198205-198408

main04212-15060i198205-198401

main04212-15061i198401-198408

main04212-15091i198502-198604

main04212-15110×2i198408-198502

main04212-15111×2i198502-198604

21673CAP, IDLE LIMIT

main21673-13280×2i198408-198604

main21673-15010i198205-198304

main21673-15011i198304-198408

main21673-38020i198205-198211

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15011i198205-198210

main21901-15012i198210-198408

main21901-15020i198205-198210

main21901-15021i198210-198408

main21901-15070i198408-198604

21911GASKET, CARBURETOR

main21911-15040i198408-198604

main21911-15050×6i198408-198604

main21914-15010×2i198205-198405

main21914-15030×2i198405-198408

main21916-15030×2i198205-198408

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15020i198205-198408

main21913-15030i198205-198408

main21913-15050i198408-198503

main21913-15060i198408-198604

main21913-15070i198503-198604

21916GASKET, CARBURETOR, NO.2

main21911-15020i198210-198408

main21914-15020i198210-198408

main21914-15030×2i198408-198604

9411040800

main94110-40800

9 parts on this diagram · 4 diagrams in section

CARBURETOR ASSEMBLY for Toyota COROLLA 2

This section contains 10 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COROLLA 2. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CAP, IDLE LIMIT, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1.
