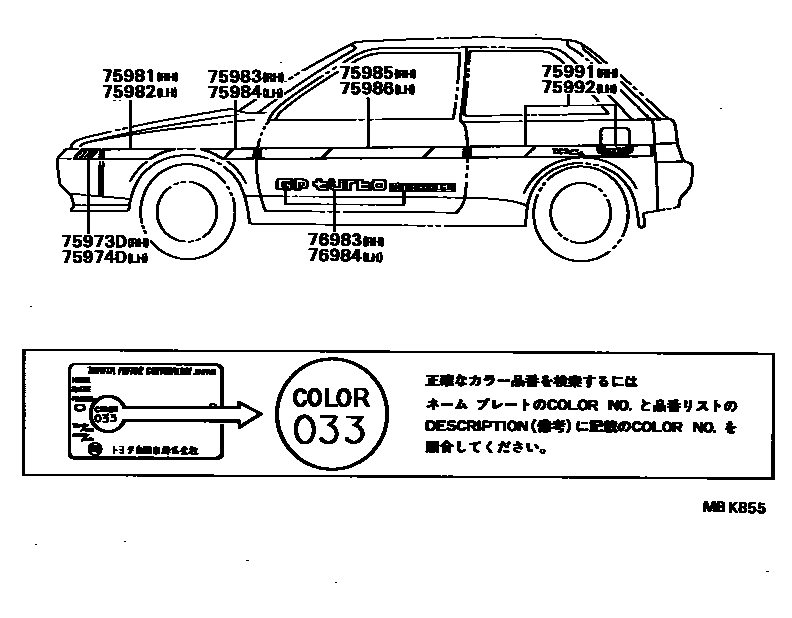

Toyota COROLLA 2 — BODY STRIPE

75973DSTRIPE, FRONT BUMPER SIDE, RH

main75973-16060-01i198609-198805

BLACK,A TYPE,041 ,8D6 ,3E6 ,165

75974DSTRIPE, FRONT BUMPER SIDE, LH

main75974-16030-01i198609-198805

BLACK,A TYPE,041 ,8D6 ,3E6 ,165

75981STRIPE, FRONT FENDER, RH NO.1

main75981-16180-02i198611-198805

WINDY,RED,RED,041 ,165

main75981-16180-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75981-16220-01i198609-198805

BLACK,BLACK,041 ,8D6 ,3E6 ,165

main75981-16240-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75981-16240-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

main75983-16110-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75983-16110-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

75982STRIPE, FRONT FENDER, LH NO.1

main75982-16160-02i198611-198805

WINDY,RED,RED,041 ,165

main75982-16160-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75982-16200-01i198609-198805

BLACK,BLACK,041 ,8D6 ,3E6 ,165

main75982-16220-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75982-16220-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

main75984-16110-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75984-16110-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

75983STRIPE, FRONT FENDER, RH NO.2

main75983-16090-01i198609-198805

BLACK,A TYPE,041

main75983-16090-11i198609-198805

BLACK & SILVER,B TYPE,8D6 ,3E6 ,165

main75983-16110-03i198710-198804

main75983-16110-13i198710-198804

75984STRIPE, FRONT FENDER, LH NO.2

main75984-16090-01i198609-198805

BLACK,A TYPE,041

main75984-16090-11i198609-198805

BLACK & SILVER,B TYPE,8D6 ,3E6 ,165

main75984-16110-03i198710-198804

main75984-16110-13i198710-198804

75985STRIPE, FRONT DOOR, RH

main75985-16290-02i198611-198805

WINDY,RED,RED,041 ,165

main75985-16290-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75985-16350-01i198609-198805

BLACK,A TYPE,041

main75985-16350-11i198609-198805

BLACK & SILVER,B TYPE,8D6 ,3E6 ,165

main75985-16370-02i198611-198805

WINDY,RED,REDVER,041 ,165

main75985-16370-03i198611-198805

WINDY,SILVER,REDVER,3E6 ,8D7

main75985-16380-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75985-16380-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

main75985-16410-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75985-16410-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

main75985-16440-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75985-16440-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

main75985-16450-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75985-16450-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

75986STRIPE, FRONT DOOR, LH

main75986-16290-02i198611-198805

WINDY,RED,RED,041 ,165

main75986-16290-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75986-16350-01i198609-198805

BLACK,A TYPE,041

main75986-16350-11i198609-198805

BLACK & SILVER,B TYPE,8D6 ,3E6 ,165

main75986-16370-02i198611-198805

WINDY,RED,RED,041 ,165

main75986-16370-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75986-16380-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75986-16380-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

main75986-16410-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75986-16410-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

main75986-16440-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75986-16440-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

main75986-16450-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75986-16450-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

75991STRIPE, QUARTER, RH NO.1

main75991-16160-02i198611-198805

WINDY,RED,RED,041 ,165

main75991-16160-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75991-16210-01i198609-198805

BLACK,A TYPE,041

main75991-16210-11i198609-198805

BLACK & SILVER,B TYPE,8D6 ,3E6 ,165

main75991-16220-02i198611-198805

WINDY,RED,RED,041 ,165

main75991-16220-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75991-16230-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75991-16230-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

main75991-16240-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75991-16240-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

main75991-16250-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75991-16250-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

75992STRIPE, QUARTER, LH NO.1

main75992-16140-02i198611-198805

WINDY,RED,RED,041 ,165

main75992-16140-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75992-16180-01i198609-198805

BLACK,A TYPE,041

main75992-16180-11i198609-198805

BLACK & SILVER,B TYPE,8D6 ,3E6 ,165

main75992-16190-02i198611-198805

WINDY,RED,RED,041 ,165

main75992-16190-03i198611-198805

WINDY,SILVER,SILVER,3E6 ,8D7

main75992-16210-03i198612-198805

SILVER & GREEN,SLV/L GREN,041

main75992-16210-13i198612-198805

SILVER & PINK,SLVR/PINK,3E6

main75992-16220-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75992-16220-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

main75992-16230-03i198708-198805

*SWI,SILVER & GREEN,SILVER/E GREEN

main75992-16230-13i198708-198805

*SWI,SILVER & PINK,SILVER/PINK

76983STRIPE, FRONT DOOR MARK, RH

main75427-16010-03i198609-198805

DARK SILVER,DARK SLVR,041 ,22B ,24B

main75427-16010-13i198609-198805

SILVER,SILVER,165 ,3E6 ,8D6

76984STRIPE, FRONT DOOR MARK, LH

main75428-16010-03i198609-198805

DARK SILVER,DARK SLVR,041 ,22B ,24B

main75428-16010-13i198609-198805

SILVER,SILVER,165 ,3E6 ,8D6

12 parts on this diagram · 3 diagrams in section

BODY STRIPE for Toyota COROLLA 2

This section contains 16 genuine Toyota parts for the BODY STRIPE system of the Toyota COROLLA 2. Key components include: STRIPE, FRONT BUMPER SIDE, RH, STRIPE, FRONT BUMPER SIDE, LH, STRIPE, FUEL FILLER OPENING LID, STRIPE, FRONT FENDER, RH NO.1, STRIPE, FRONT FENDER, LH NO.1.
