Toyota COROLLA 2 — BATTERY & BATTERY CABLE

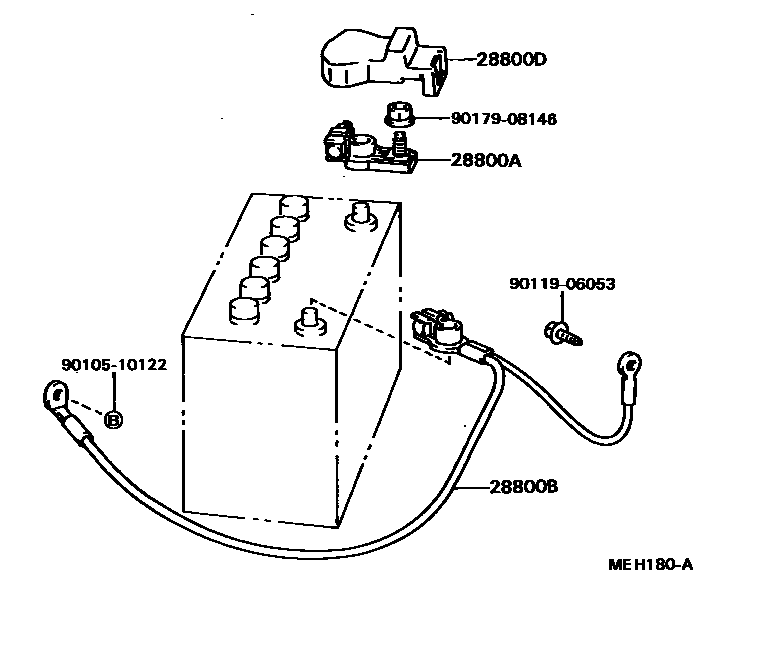

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05027i198605-198610

main90982-05028i198610-198805

main90982-05032i198605-198805

28800BCABLE, BATTERY TO GROUND

main82123-16040i198605-198805

main82123-16050i198605-198703

main82123-16070i198703-198805

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i198605-198805

main82821-16010i198605-198701

main82821-16020i198701-198805

9010510122

main90105-10122

9011906053

main90119-06053

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota COROLLA 2

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota COROLLA 2. Key components include: TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, COVER, CONNECTOR(FOR BATTERY TERMINAL).
