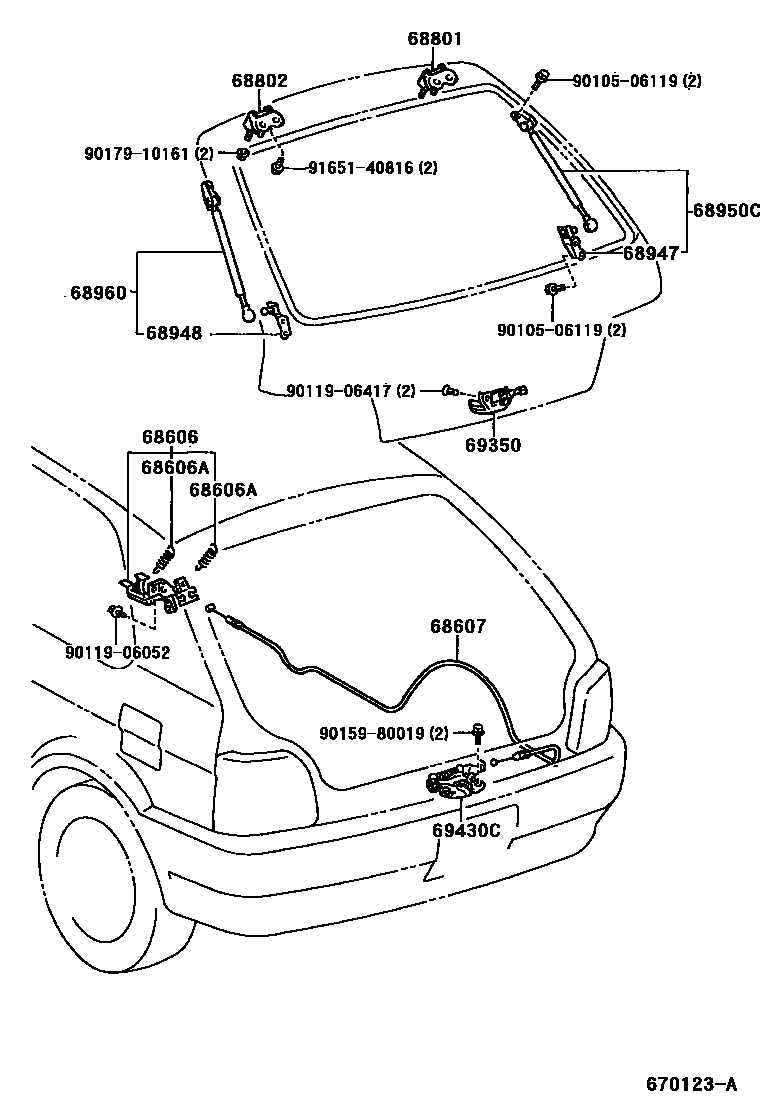

Toyota COROLLA 2 — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68802HINGE SUB-ASSY, BACK DOOR, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506119
main90105-06119
9011906052
main90119-06052
9011906417
main90119-06417
9015980019
main90159-80019
9017910161
main90179-10161
9165140816
main91651-40816
17 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA 2
This section contains 17 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA 2. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE SUB-ASSY, BACK DOOR, UPPER RH, HINGE SUB-ASSY, BACK DOOR, UPPER LH.
