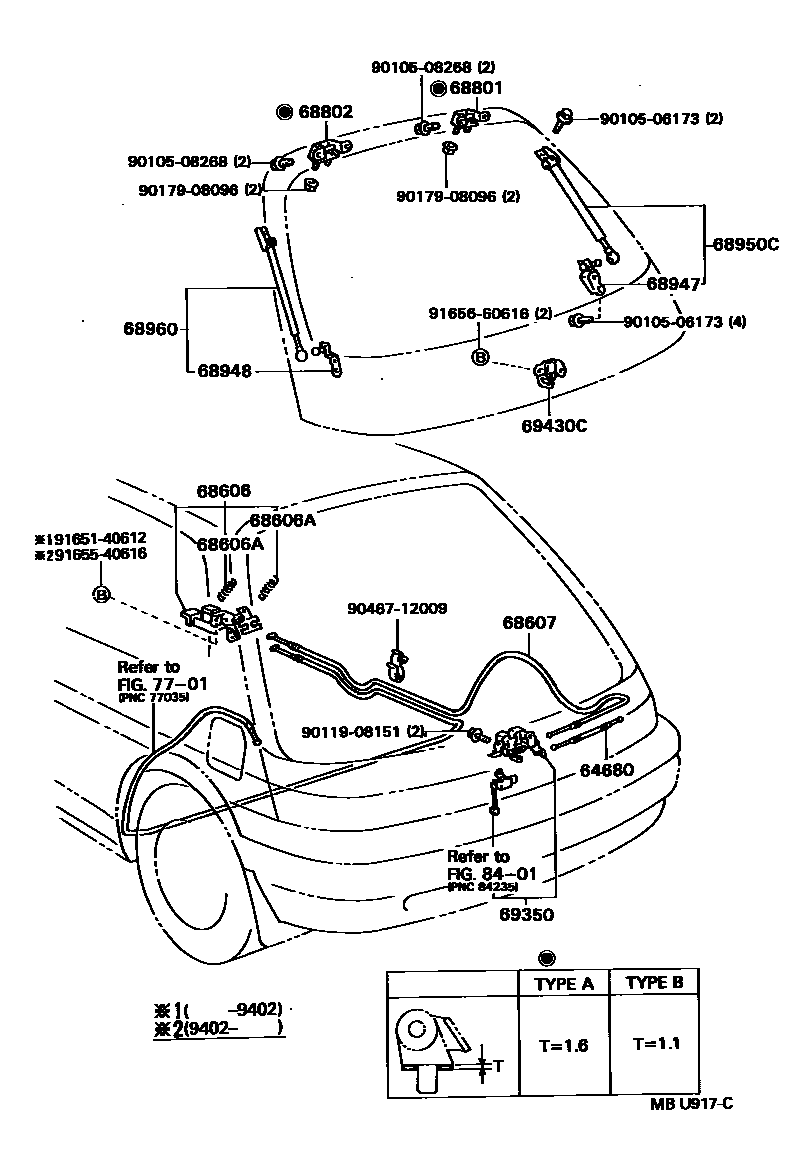

Toyota COROLLA 2 — BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-16060iEL4#,NL40199009-199409

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-16040iEL41..TX199009-199409

main64606-16050iEL41..TX199208-199409

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034×2iEL41..TX199009-199409

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-16230iEL4#,NL40199009-199409

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-16040iEL4#,NL40199009-199409

main68801-16050iEL4#,NL40199009-199409

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-16040iEL4#,NL40199208-199409

TYPE A

main68801-16050iEL4#,NL40199208-199409

TYPE B

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-16020iEL4#,NL40199009-199203

main68947-16021iEL4#,NL40199203-199302

main68947-16022iEL4#,NL40199302-199409

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-16020iEL4#,NL40199009-199203

main68948-16021iEL4#,NL40199203-199302

main68948-16022iEL4#,NL40199302-199409

68950CSTAY ASSY, BACK DOOR, RH

main68950-19745iEL41,45,NL40..TX,WIN199009-199203

main68950-19746iEL41,NL40..TX,WIN199208-199409

main68950-19755iEL41,45,NL40..TX,WIN199009-199203

main68950-19756iEL45;EL41,43..LIM,SR199208-199409

main68950-19765iEL43,45..SR199009-199203

main68950-19766iEL45;EL41,43..LIM,SR199208-199409

68960STAY ASSY, BACK DOOR, LH

main68960-19435iEL41,45,NL40..TX,WIN199009-199203

main68960-19436iEL41,NL40..TX,WIN199208-199409

main68960-19445iEL41,45,NL40..TX,WIN199009-199203

main68960-19446iEL45;EL41,43..LIM,SR199208-199409

main68960-19455iEL43,45..SR199009-199203

main68960-19456iEL43..EFIS199203-199409

69350LOCK ASSY, BACK DOOR

main69350-16130iEL4#,NL40199009-199409

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-16180iEL4#,NL40199009-199409

7701

8401

9010506173

main90105-06173

9010508268

main90105-08268

9011908151

main90119-08151

9017908096

main90179-08096

9046712009

main90467-12009

9165140612

main91651-40612

9165540616

main91655-40616

9165660616

main91656-60616

22 parts on this diagram · 1 diagram in section
