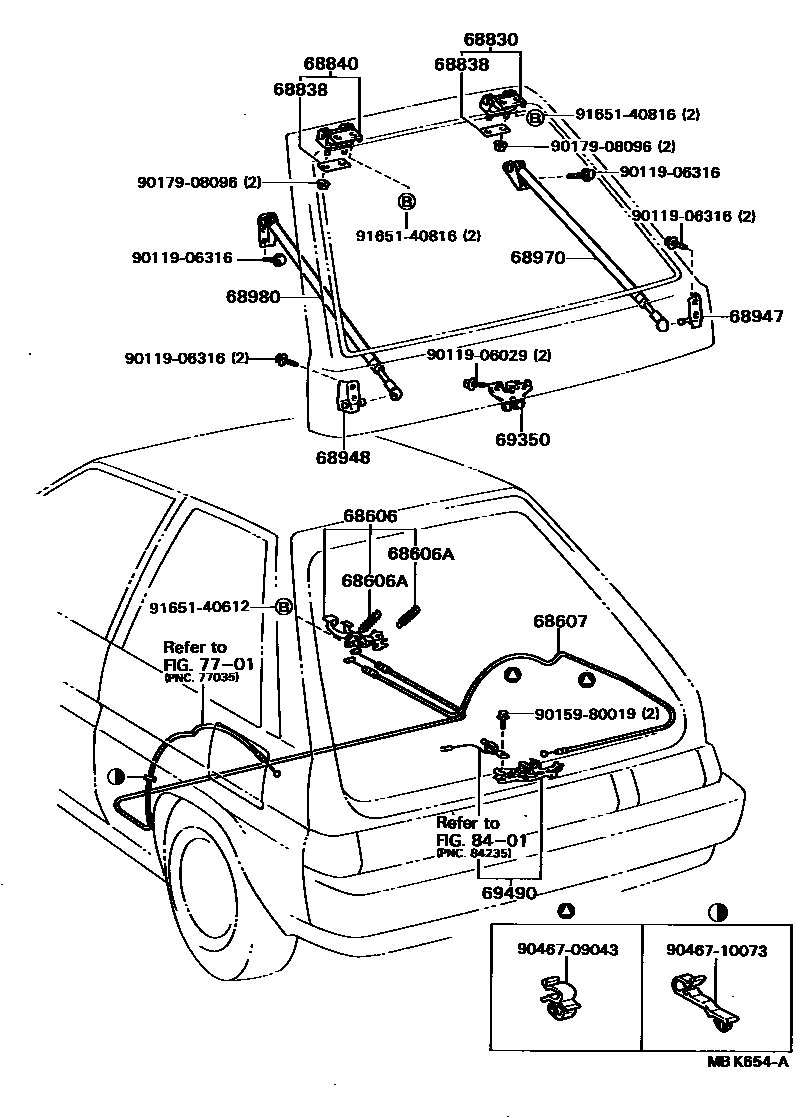

Toyota COROLLA 2 — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
W/RR WIPER
68980STAY ASSY, BACK DOOR
W/RR WIPER
W/RR WIPER
69350LOCK ASSY, BACK DOOR
69490STRIKER ASSY, BACK DOOR LOCK
W/BACK DOOR OPENER
7701FUEL TANK & TUBE
8401SWITCH & RELAY & COMPUTER
9011906029
main90119-06029
9011906316
main90119-06316
9015980019
main90159-80019
9017908096
main90179-08096
9046709043
main90467-09043
9046710073
main90467-10073
9165140612
main91651-40612
9165140816
main91651-40816
22 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA 2
This section contains 22 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA 2. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, RH, PAD, BACK DOOR HINGE, NO.1.
