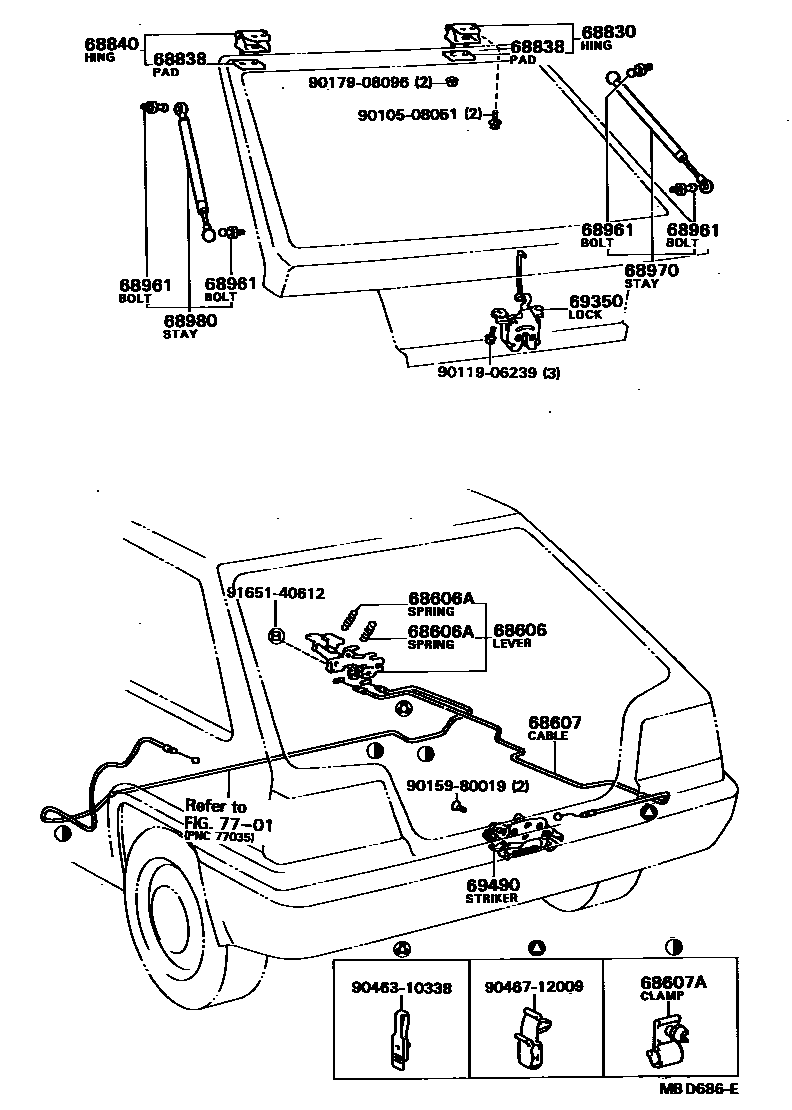

Toyota COROLLA 2 — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER,KAYABA
W/RR WIPER,TOKIKO
KAYABA
TOKIKO
68980STAY ASSY, BACK DOOR
W/RR WIPER,KAYABA
W/RR WIPER,TOKIKO
KAYABA
TOKIKO
69490STRIKER ASSY, BACK DOOR LOCK
W/OPENER
W/OPENER
7701FUEL TANK & TUBE
9010508051
main90105-08051
9011906239
main90119-06239
9015980019
main90159-80019
9017908096
main90179-08096
9046310338
main90463-10338
9046712009
main90467-12009
9165140612
main91651-40612
20 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA 2
This section contains 20 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA 2. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE), HINGE ASSY, BACK DOOR, RH.
