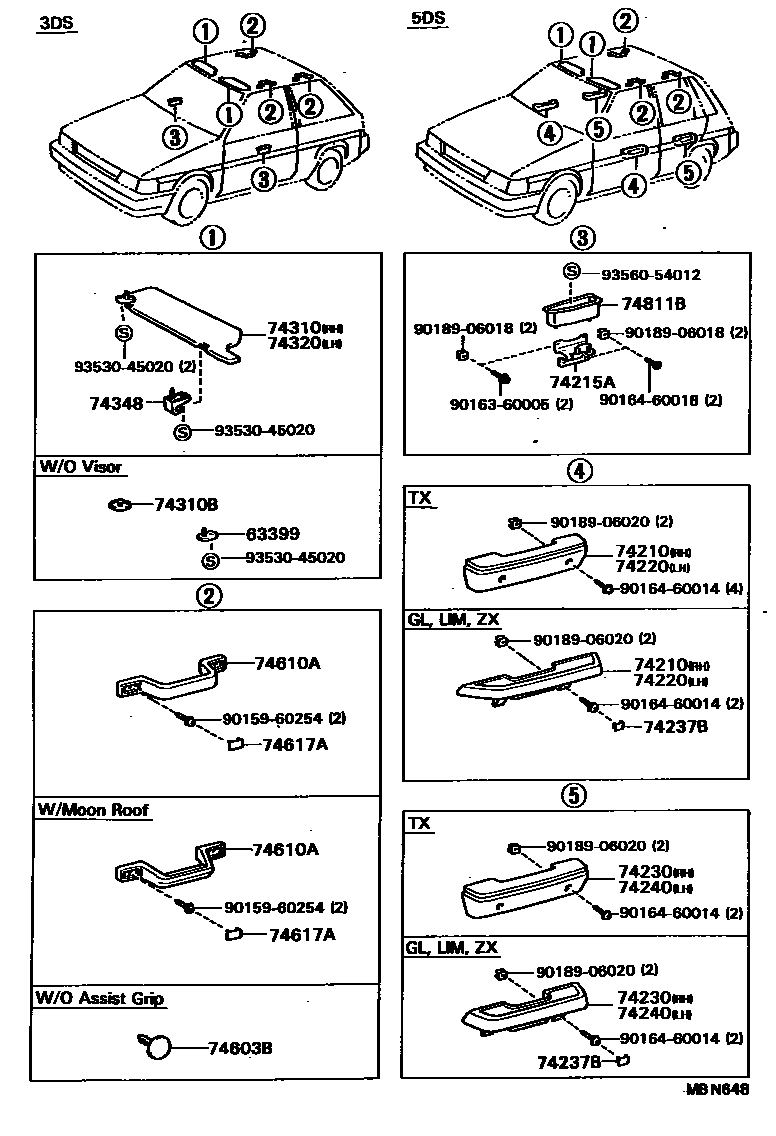

Toyota COROLLA 2 — ARMREST & VISOR

63399COVER, VISOR HOLDER HOLE

main63399-20010-04iEL30..CD198805-199009

LIGHT BLUE,TRIM8#

74210ARMREST ASSY, FRONT, RH

main74210-10020-01iEL30,NL30..5DS..TX198805-199009

BLACK,TRIM2#

main74210-10020-14iEL30,NL30..5DS..TX198805-199009

BLUE,TRIM8#

main74210-16030-01iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLACK,TRIM2#

main74210-16030-04iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLUE,TRIM8#

74215ABASE, DOOR ARMREST RH

main74215-16020×2iEL3#,NL30..3DS198805-199009

74220ARMREST ASSY, FRONT, LH

main74210-10020-01iEL30,NL30..5DS..TX198805-199009

BLACK,TRIM2#

main74210-10020-14iEL30,NL30..5DS..TX198805-199009

BLUE,TRIM8#

main74220-16030-01iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLACK,TRIM2#

main74220-16030-04iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-10020-01iEL30,NL30..5DS..TX198805-199009

BLACK,TRIM2#

main74210-10020-14iEL30,NL30..5DS..TX198805-199009

BLUE,TRIM8#

main74250-16030-01iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLACK,TRIM2#

main74250-16030-04iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLUE,TRIM8#

74237BCAP, DOOR ARMREST BASE

main74237-16010-01×8iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLACK,TRIM2#

main74237-16010-04×8iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-10020-01iEL30,NL30..5DS..TX198805-199009

BLACK,TRIM2#

main74210-10020-14iEL30,NL30..5DS..TX198805-199009

BLUE,TRIM8#

main74260-16030-01iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLACK,TRIM2#

main74260-16030-04iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-16170-03iEL3#,NL30..AR,GL,TX198805-199009

GRAY,TRIM2#

main74310-16170-04iEL3#,NL30..AR,CD,GL,TX198805-199009

LIGHT BLUE,TRIM8#

main74310-16180-03iEL31,NL30..GP,SRI,ZX198805-199009

GRAY,TRIM2#

main74310-16180-04iEL31,NL30..GP,SRI,ZX198805-199009

LIGHT BLUE,TRIM8#

main74310-16300-03iEL30..LIM198805-199009

GRAY,TRIM2#

main74310-16300-04iEL30..LIM198805-199009

LIGHT BLUE,TRIM8#

main74310-16380-03iEL30..3DS..TX198805-199009

main74310-16390-03iEL31..EFI198805-199009

74310BPLUG, HOLE (FOR VISOR)

main90950-01238-14iEL30..CD198805-199009

LIGHT BLUE,TRIM8#

74320VISOR ASSY, LH

main74320-16150-03iEL3#,NL30..AR,GL,GP,LIM,SRI,TX198805-199009

LIGHT GRAY,TRIM2#

main74320-16150-04iEL3#,NL30..AR,GL,GP,LIM,SRI,TX198805-199009

LIGHT BLUE,TRIM8#

main74320-16160-03iEL31,NL30..ZX198805-199009

GRAY,TRIM2#

main74320-16160-04iEL31,NL30..ZX198805-199009

LIGHT BLUE,TRIM8#

74348HOLDER, VISOR

main74348-12020-03iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198810-199009

LIGHT GRAY,TRIM2#

sub74348-60010

sub74348-26020

main74348-12020-04iEL3#,NL30198810-199009

LIGHT BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-32010-14iEL3#,NL30198805-198810

DEEP BLUE,TRIM8#

sub74348-17010

main74348-32010-33iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-198810

SHADOW GRAY,TRIM2#

sub74348-17010

74603BCLIP (FOR ASSIST GRIP)

main90467-06048-33×2iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-198809

main90467-06048-34×6iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-198809

LIGHT BLUE,TRIM8#

main90467-06048-B1×2iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198809-199009

main90467-06048-J0×8iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198809-199009

LIGHT BLUE,TRIM8#

74610AGRIP SUB-ASSY, ASSIST

main74610-12040-04×2iEL31..EFI,TBO198908-199009

LIGHT BLUE,TRIM8#,REAR

main74610-12040-13×2iEL31..EFI198805-198908

LIGHT GRAY,TRIM2#,REAR

main74610-16010-03iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

sub74610-12030

main74610-16010-04×3iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

LIGHT BLUE,TRIM8#,FRONT

sub74610-12030

74617APLUG, ASSIST GRIP

main74617-16010-24×2iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

main74617-16010-53×2iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

74811BHANDLE, DOOR PULL

main74811-16020-01×2iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main74811-16020-04×2iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

9015960254

main90159-60254

9016360005

main90163-60005

9016460014

main90164-60014

9016460018

main90164-60018

9018906018

main90189-06018

9018906020

main90189-06020

9353045020

main93530-45020

9356054012

main93560-54012

23 parts on this diagram · 1 diagram in section
