Toyota COROLLA 2 — ARMREST & VISOR

63399COVER, VISOR HOLDER HOLE

main63399-20010-18i198308-198408

DX-S,IVORY

74215BASE, DOOR ARMREST

main74215-16010×4i198205-198604

74310VISOR ASSY, RH

main74310-16120i198205-198408

IVORY

main74310-16121-08i198408-198604

IVORY,IVORY

main74310-16150i198205-198408

main74310-16151-08i198408-198604

IVORY,IVORY

main74310-16190i198205-198408

W/SUN ROOF,IVORY

main74310-16191-08i198408-198604

W/SUN ROOF,IVORY,IVORY

main74310-16220i198205-198408

LIME,IVORY

main74310-16221-08i198408-198604

LIME,IVORY,IVORY

74310BPLUG, HOLE (FOR VISOR)

main90950-01161-18i198308-198408

DX-S,IVORY

74320VISOR ASSY, LH

main74320-16110i198205-198408

IVORY

main74320-16120i198205-198408

W/MIRROR,IVORY

main74320-16121-08i198408-198604

W/MIRROR,IVORY,IVORY

main74320-16230-08i198408-198604

IVORY,IVORY

74348HOLDER, VISOR

main74348-32010-08×2i198205-198604

IVORY,IVORY

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-10020-18i198205-198408

IVORY,IVORY

main74610-12030-08i198408-198604

IVORY,IVORY

74603BCLIP (FOR ASSIST GRIP)

main90467-06048-08×8i198408-198604

IVORY,IVORY

main90467-07007-18×8i198205-198408

IVORY,IVORY

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-10020-18×2i198205-198408

IVORY,IVORY

main74610-12030-08×2i198408-198604

IVORY,IVORY

74613PLUG, ASSIST GRIP

main74617-14010-18×6i198205-198408

IVORY,IVORY

main74617-16010-08×6i198408-198604

IVORY,IVORY

74641HOOK, COAT, B

main74631-12060-18i198205-198408

IVORY,IVORY

74641ASPACER (FOR COAT HOOK)

main74634-12010i198205-198408

74810PULL ASSY, DOOR, INSIDE

main74811-16010-02×4i198205-198408

DARK WINE,RED/MAROON,TRIM3#

main74811-16010-03×4i198205-198408

GRAY,GRAY,TRIM1#

main74811-16010-06×4i198205-198408

BROWN,BROWN,TRIM4#

main74811-16010-13×4i198408-198604

GRAY,GRAY,TRIM1#

9015260001

main90152-60001

9015960203

main90159-60203

9015960204

main90159-60204

9016360005

main90163-60005

9016460013

main90164-60013

9018906030

main90189-06030

9353045020

main93530-45020

9356054012

main93560-54012

21 parts on this diagram · 1 diagram in section

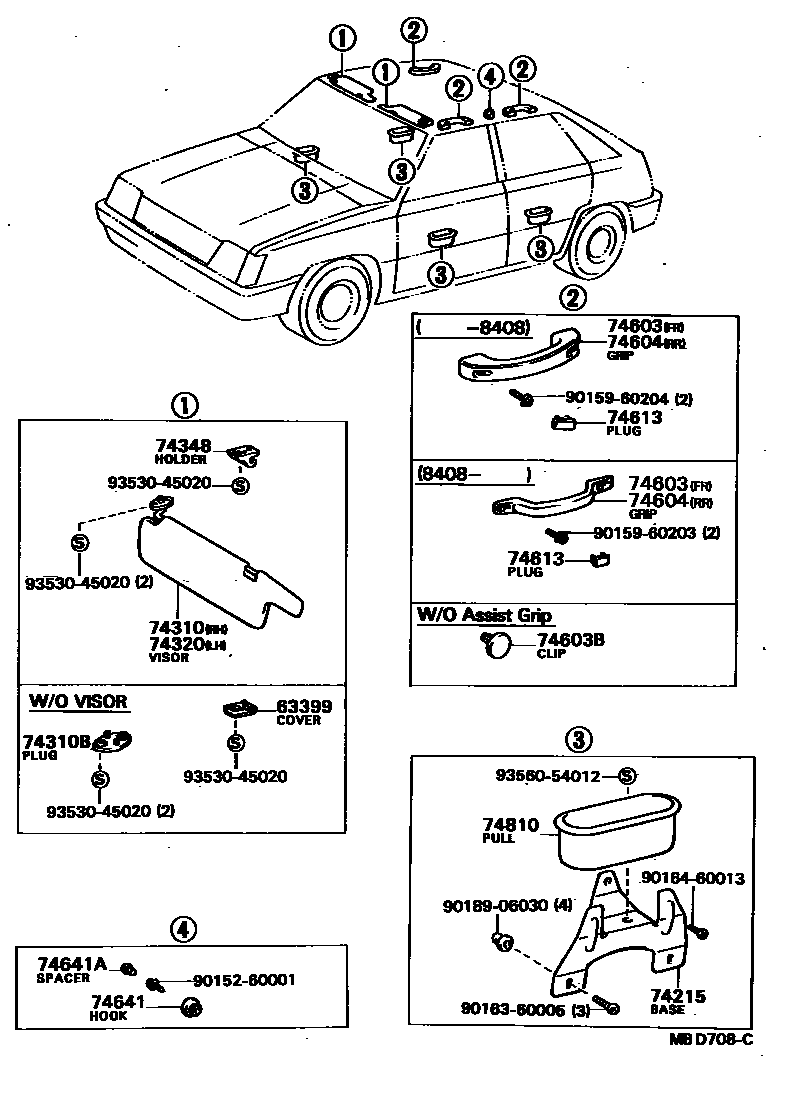

ARMREST & VISOR for Toyota COROLLA 2

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA 2. Key components include: COVER, VISOR HOLDER HOLE, BASE, DOOR ARMREST, VISOR ASSY, RH, PLUG, HOLE (FOR VISOR), VISOR ASSY, LH.
